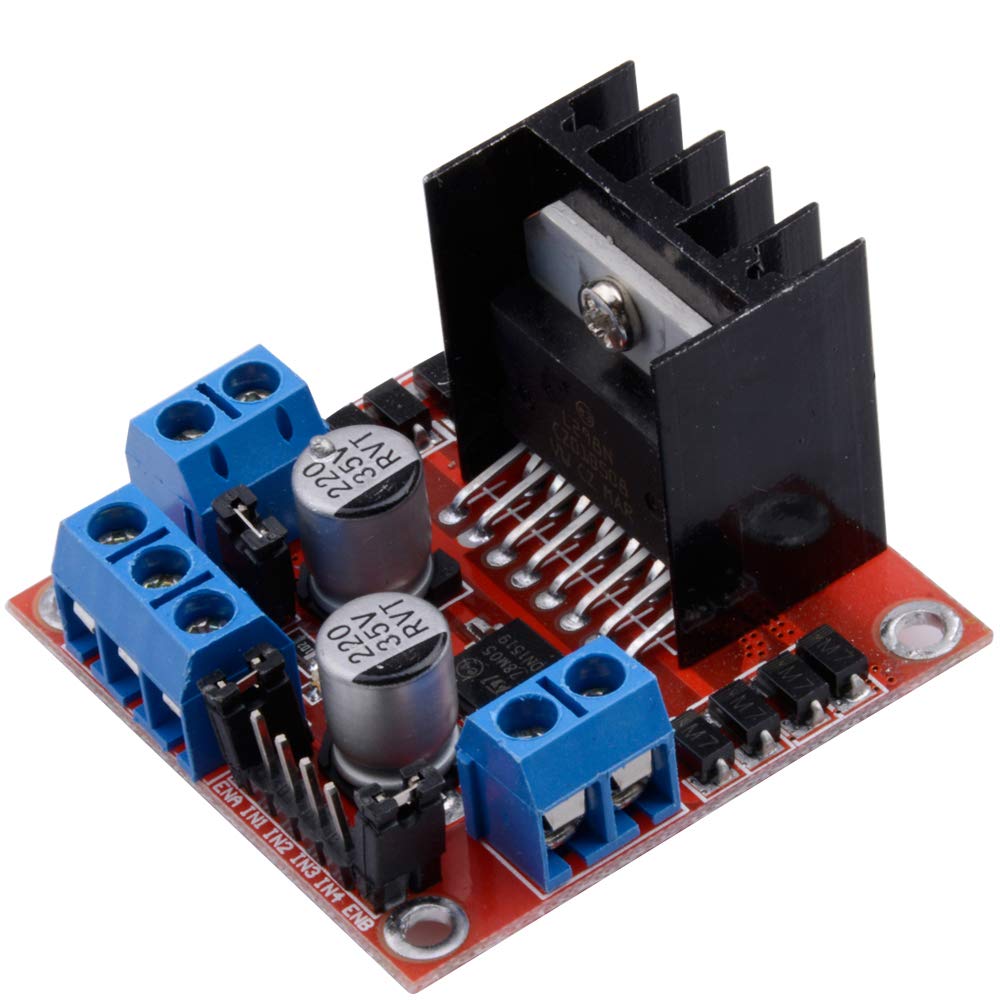

L298 Motor Driver Dual Board H-Bridge Dual DC Motor Driver Module High Power Motor Control (L298 Driver Board)

The L298 motor driver dual board is a high power dual H-bridge motor driver module designed to control two DC motors or one stepper motor. It is widely used in robotics, automation, and embedded systems for motor control applications.

Key Features -

  • Dual H-bridge motor driver (controls 2 DC motors)
  • High voltage motor drive up to 46V
  • High current capacity up to 2A per channel (with proper cooling)
  • Onboard heat sink for thermal management
  • Built-in flyback diodes for protection
  • PWM control support for speed regulation
  • Compatible with microcontrollers (Arduino, PIC, etc.)

Specifications -

  • Driver IC - L298 dual full bridge driver
  • Motor supply voltage (Vs) - up to 46V
  • Logic voltage - 5V
  • Output current - up to 2A per channel
  • Peak current - up to 3A
  • Control inputs - IN1, IN2, IN3, IN4
  • Enable pins - ENA, ENB (for PWM speed control)
  • Module type - dual motor driver board

Applications -

  • Robotics and automation projects
  • DC motor control systems
  • Stepper motor control
  • Arduino and microcontroller projects
  • Conveyor and actuator systems
  • DIY electronics and robotics kits

Pinout / Connections -

  • IN1 IN2 - motor A control inputs
  • IN3 IN4 - motor B control inputs
  • ENA ENB - enable pins (PWM for speed control)
  • OUT1 OUT2 - motor A output
  • OUT3 OUT4 - motor B output
  • Vs - motor supply input
  • Vcc - logic supply (5V)
  • GND - ground
