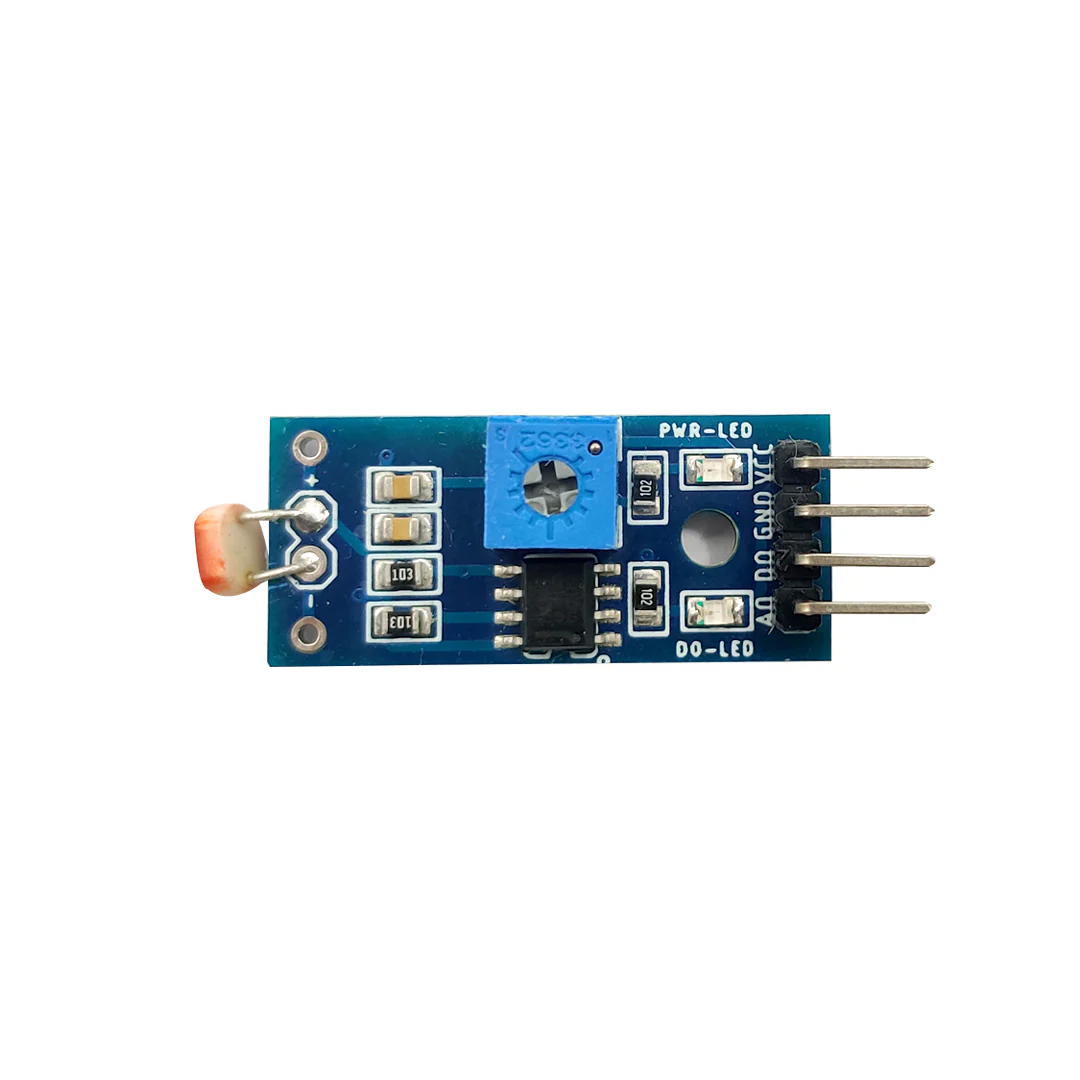

LDR Light Sensor Module

The LDR light sensor module is designed to detect ambient light intensity using a light dependent resistor. The resistance of the LDR changes according to the amount of light falling on its surface allowing the module to measure variations in light levels.

This module is widely used in automatic lighting systems light detection circuits and environmental monitoring applications. It provides both analog and digital output signals and includes an adjustable sensitivity control for setting the detection threshold. The compact design allows easy interfacing with microcontrollers and embedded electronics systems.

Key Features

• Light detection using LDR light dependent resistor
• Measures ambient light intensity
• Provides both analog and digital outputs
• Adjustable sensitivity using onboard potentiometer
• Suitable for automatic lighting control systems
• Compatible with Arduino ESP32 Raspberry Pi systems
• Compact module suitable for prototyping and PCB integration

Specifications

• Product Type = LDR light sensor module
• Sensor Type = Light dependent resistor
• Operating Voltage = 3.3V to 5V
• Output Type = Analog output and digital output
• Sensitivity Control = Adjustable potentiometer
• Indicator = Onboard status LED
• Interface Type = 4 Pin module interface
• Application = Light detection and automatic control systems

Interfaces

• VCC = Power supply input
• GND = Ground
• DO = Digital output
• AO = Analog output
