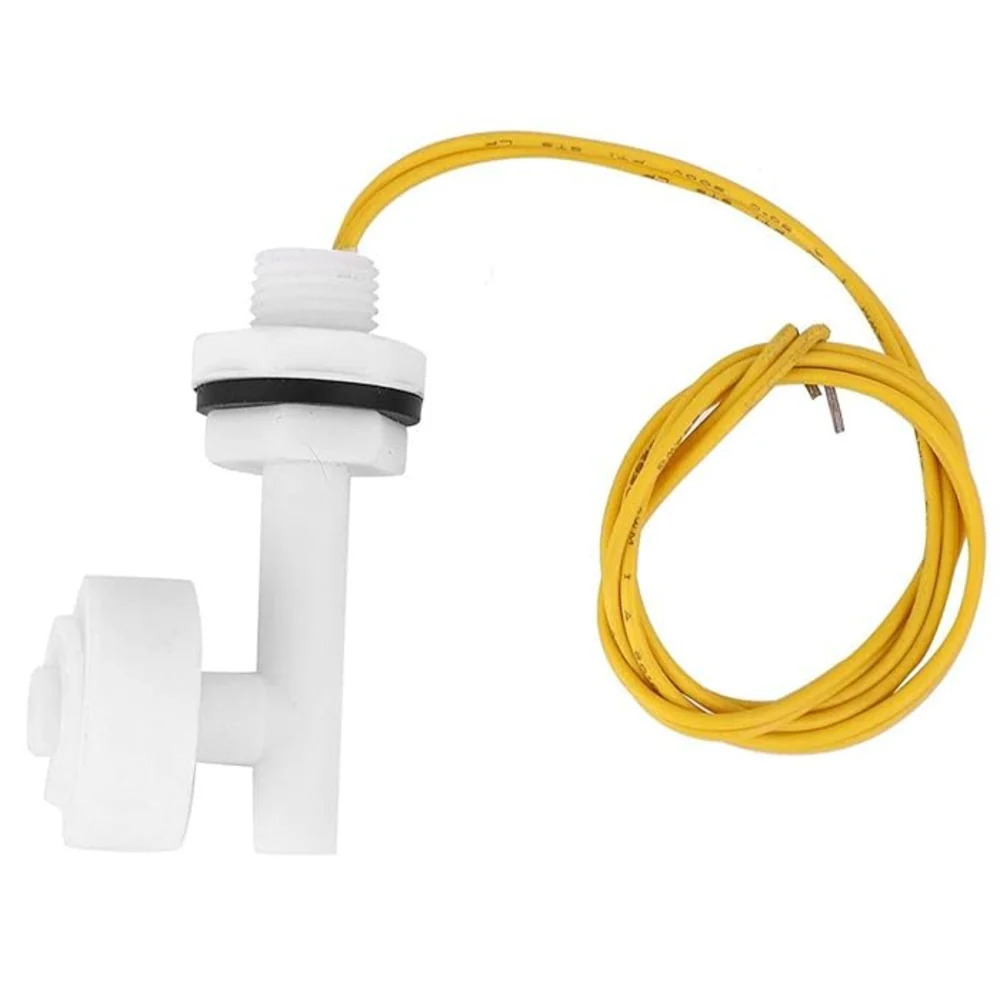

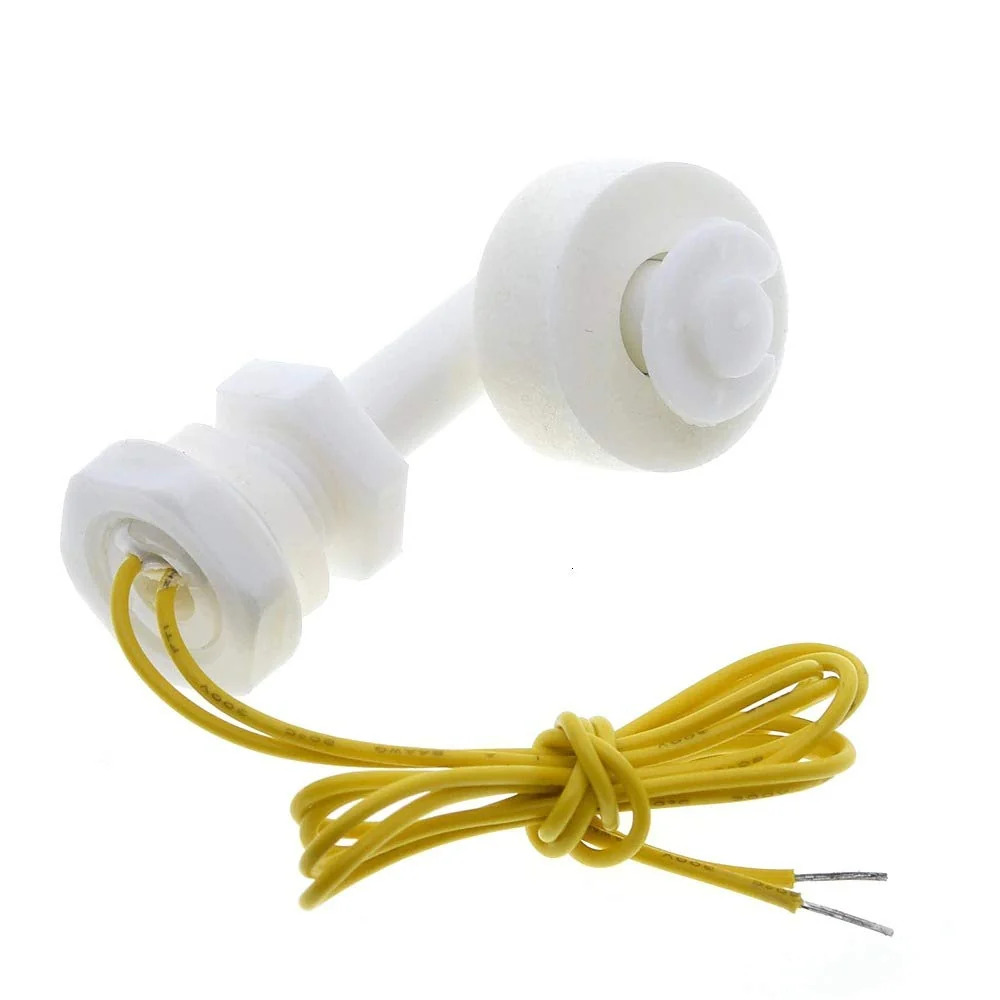

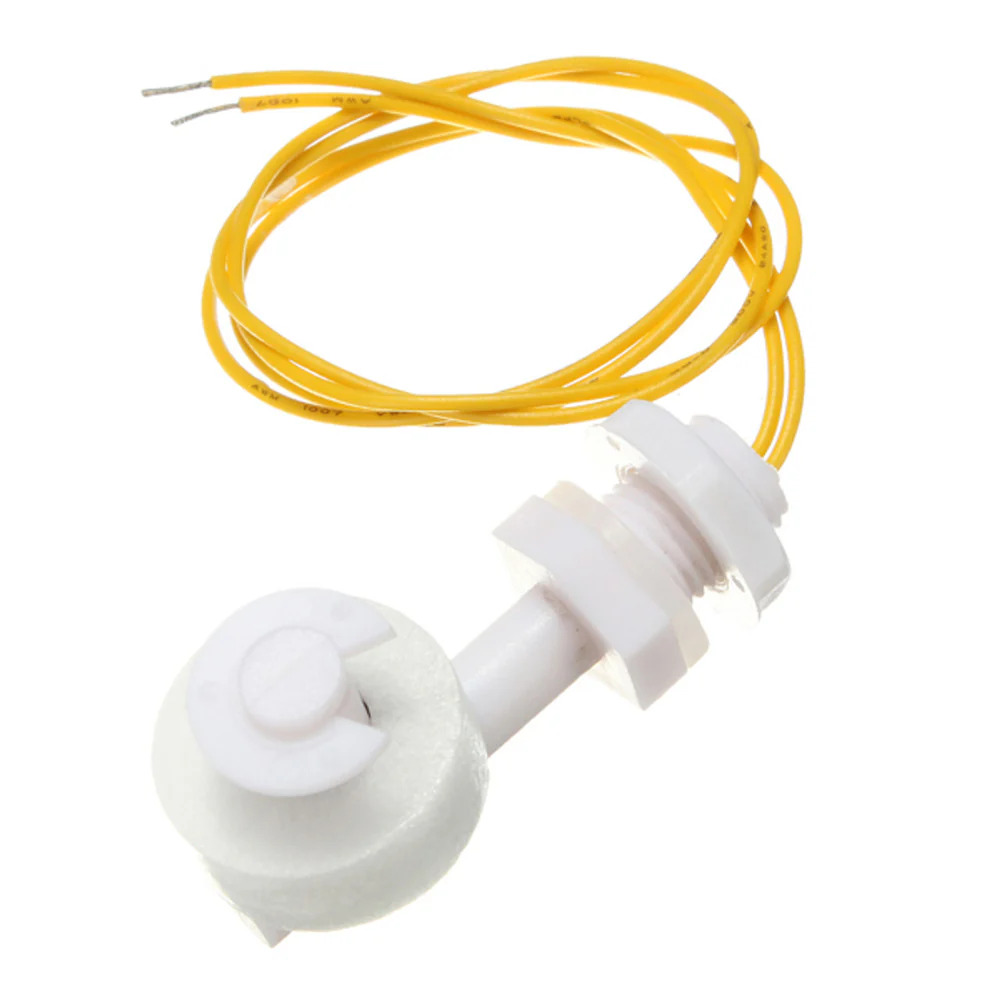

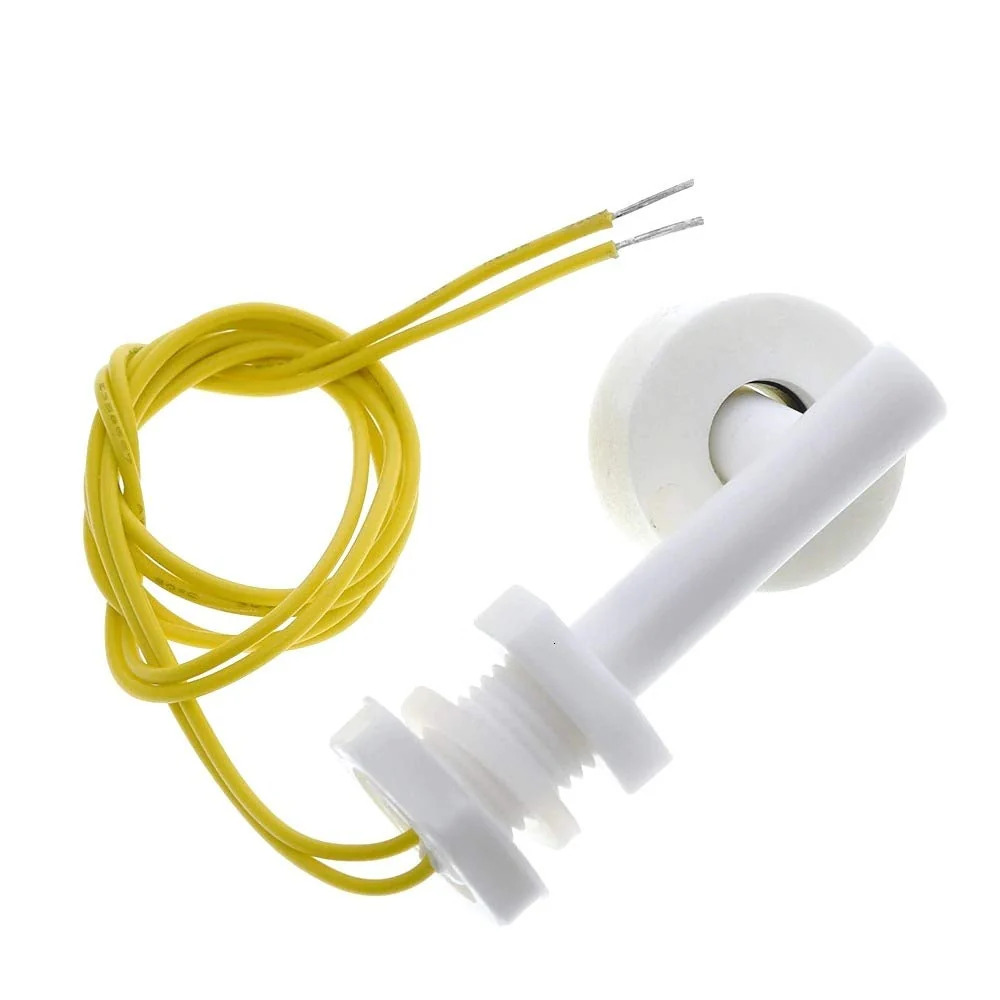

Liquid Water Level Sensor Right Angle Float Switch

The Liquid Water Level Sensor Right Angle Float Switch is a compact liquid level detection device designed for horizontal mounting in tanks, reservoirs, and containers. It uses a magnetic float and an internal reed switch to detect the presence or absence of liquid at a preset level, providing a simple digital ON/OFF output for automatic liquid level monitoring and control. The right-angle design makes it ideal for side-wall installation where vertical mounting is not practical.

Key Features -

• Right angle horizontal float switch design

• Magnetic float with internal reed switch

• Reliable liquid level detection

• Digital ON/OFF switching output

• Compact and durable construction

• Easy side-wall installation

• Suitable for water and non-corrosive liquids

• Low power operation

• Stable and maintenance-free performance

• Easy interfacing with controllers and relays

Specifications -

• Product type - Liquid Level Float Switch

• Sensor type - Magnetic Float Switch

• Mounting type - Right Angle Horizontal Threaded Mount

• Operating voltage - Up to 100V AC/DC (Model Dependent)

• Switch type - Normally Open or Normally Closed (Orientation Dependent)

• Current rating - Typically Up to 0.5A

• Contact type - Reed Switch

• Body material - Polypropylene Plastic or Equivalent

• Output type - Digital ON/OFF

• Suitable liquid - Water and Non-Corrosive Liquids

Applications -

• Water tank level monitoring

• Automatic filling systems

• Sump pump control

• Industrial liquid level monitoring

• Aquarium water level control

• Water purification systems

• Pump protection systems

• Embedded automation projects
