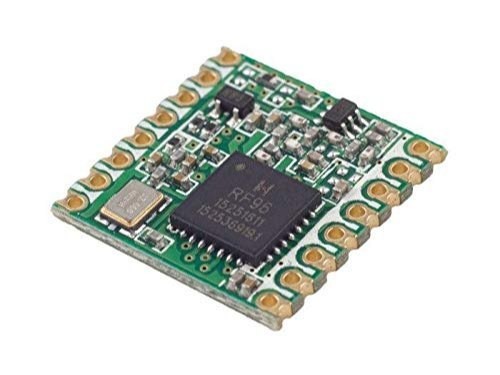

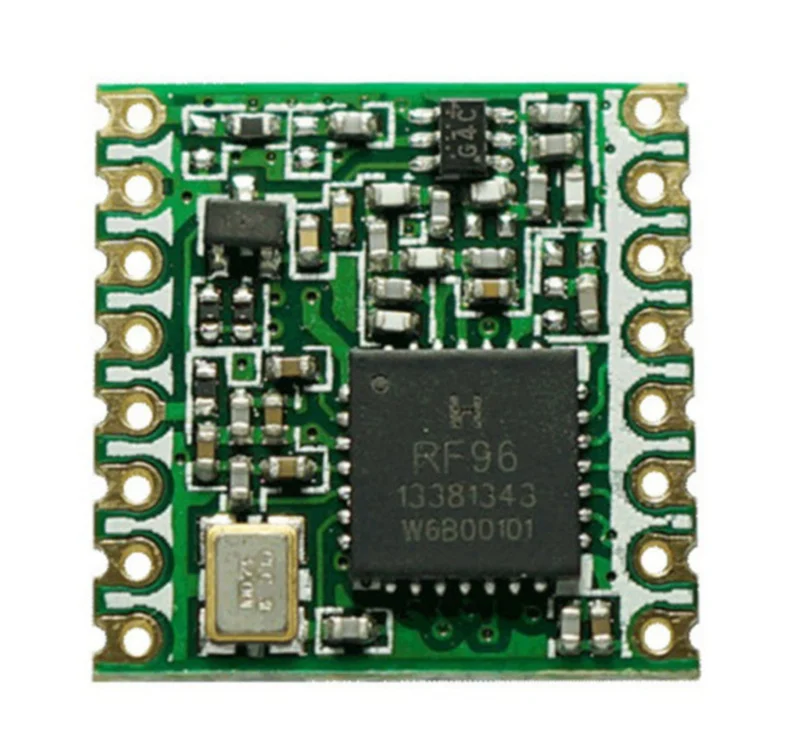

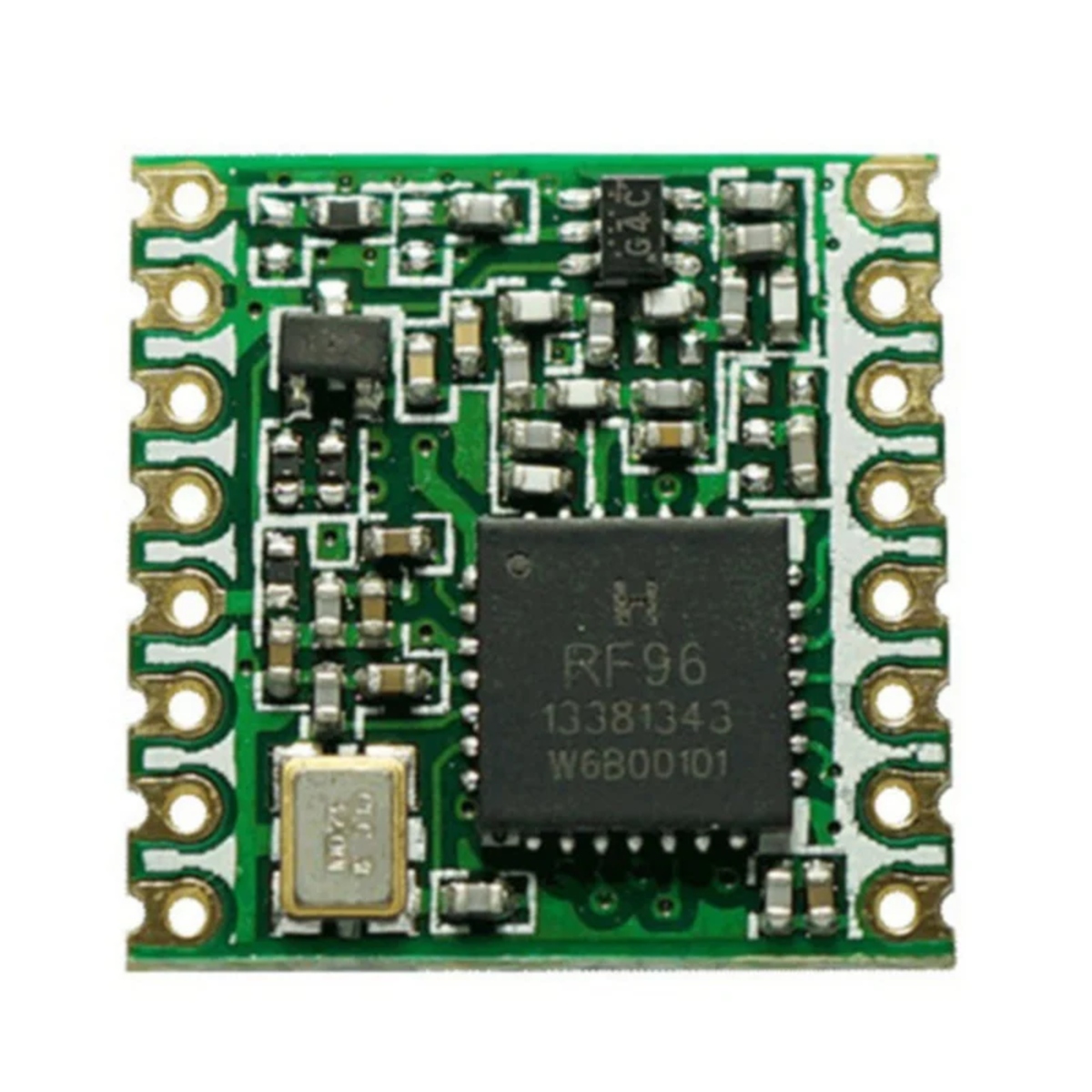

LoRa 868MHz SX1276 RF Transceiver Module RFM95W Compatible
The LoRa 868MHz SX1276 RF Transceiver Module is a long range wireless communication board designed for sub-GHz IoT and telemetry applications. It uses the SX1276 LoRa chipset and supports LoRa modulation to provide low power, high range RF communication at 868MHz frequency. The module is compatible with RFM95W pinout and can be integrated easily via SPI interface.
This transceiver module is suitable for smart metering, remote sensors, industrial monitoring, agricultural systems, and other long distance wireless communication projects. Its configurable RF parameters and robust design make it ideal for reliable data transfer in noisy environments and low power networks.
KEY FEATURES
- LoRa long range wireless technology
- Operates at 868MHz sub-GHz frequency
- SX1276 RF chipset
- RFM95W compatible footprint
- Low power consumption
- High interference immunity
- SPI communication interface
- Suitable for IoT and telemetry applications
SPECIFICATIONS
- RF Chipset = SX1276 LoRa transceiver
- Operating Frequency = 868MHz
- Modulation = LoRa spread spectrum
- Output Power = Programmable RF output
- Receiver Sensitivity = High sensitivity for long range
- Communication Interface = SPI
- Supply Voltage = 3.3V DC
- Data Rate = Configurable via software
- Mounting Type = PCB module
INTERFACES
- VCC = 3.3V DC power input
- GND = Ground
- MISO = SPI master input slave output
- MOSI = SPI master output slave input
- SCK = SPI clock
- NSS = SPI chip select
- DIO0 = Digital IO interrupt
- DIO1 = Digital IO interrupt
- RESET = Module reset input
