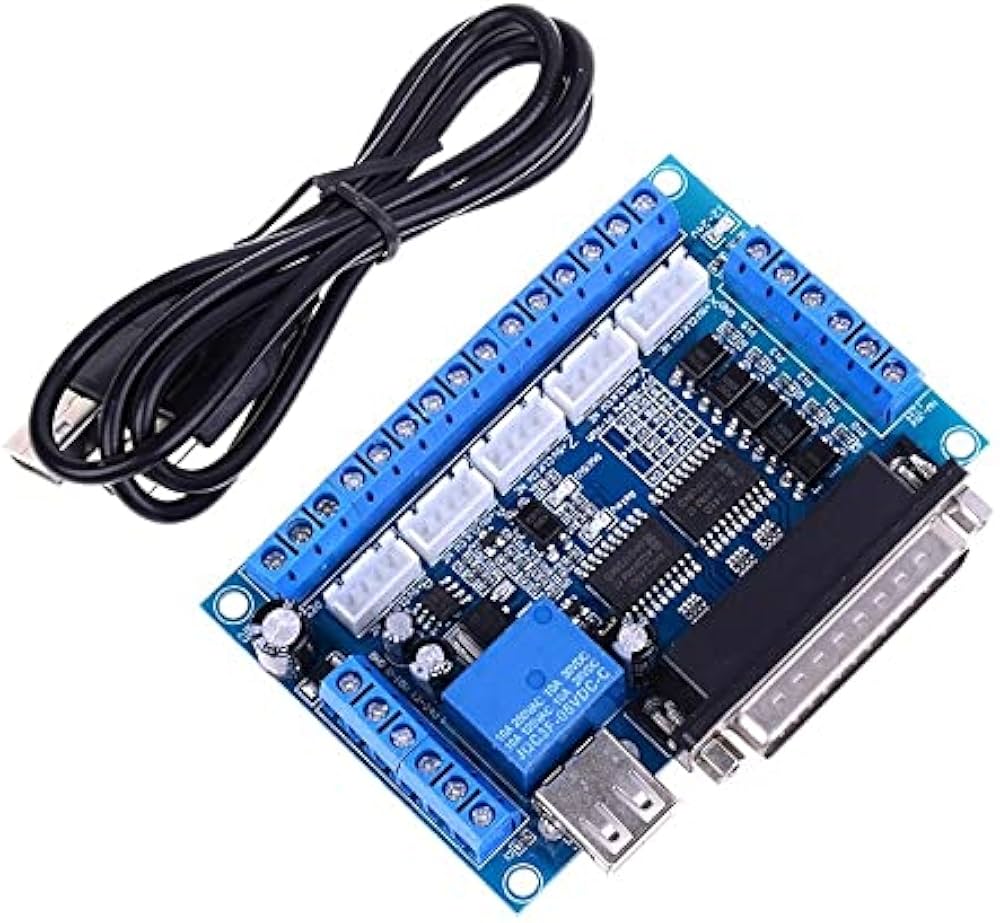

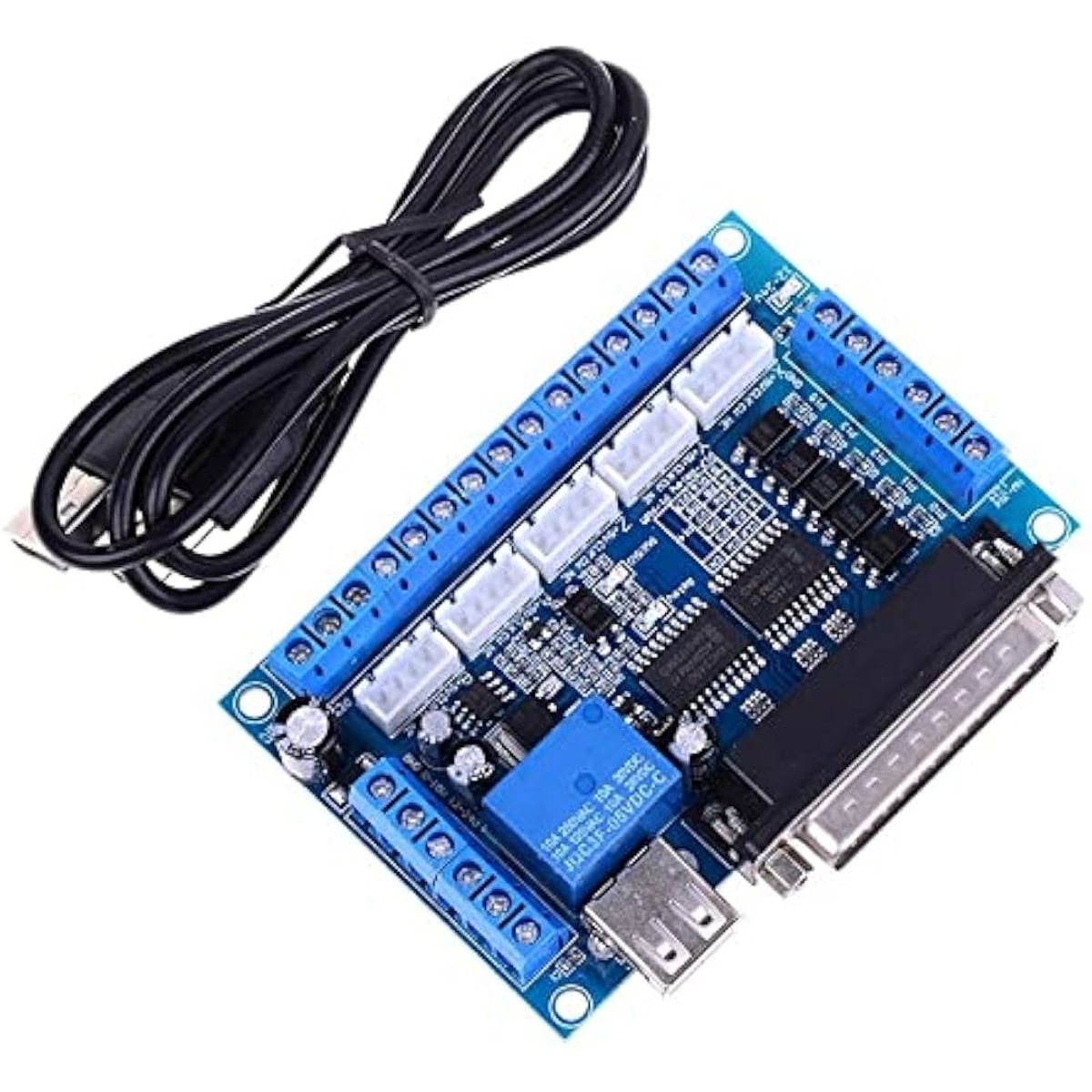

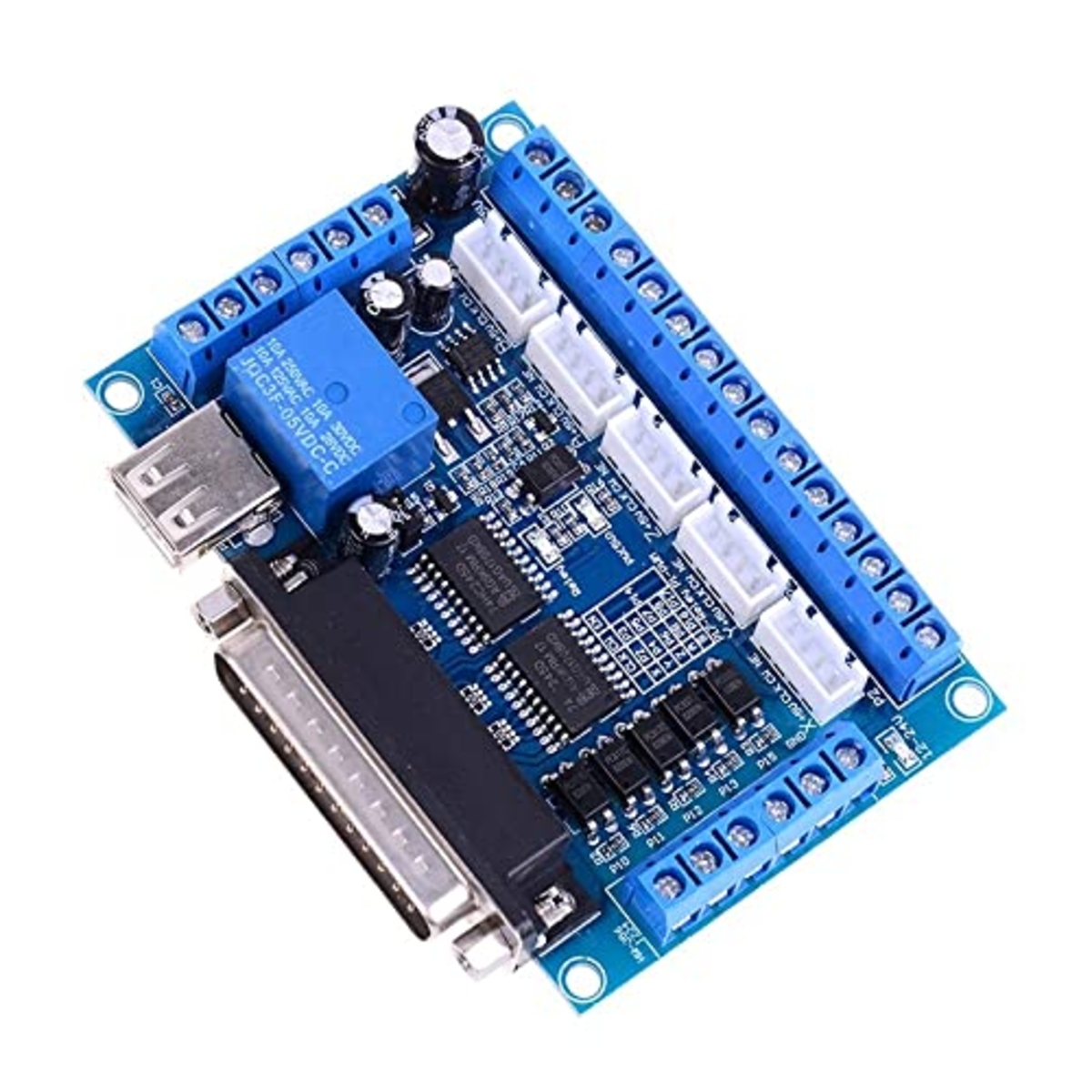

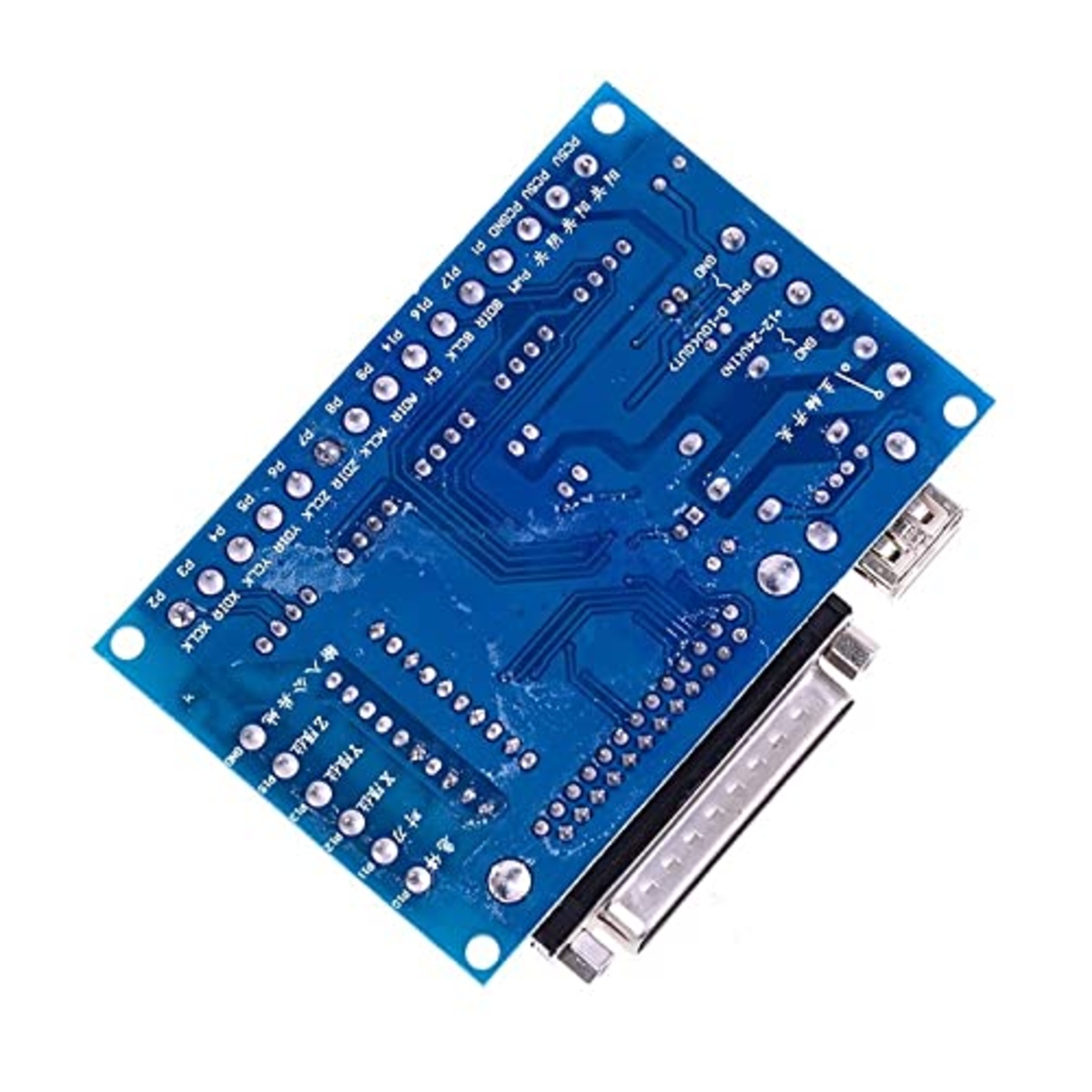

MACH3 5 Axis CNC Interface Board with Optocoupler & USB Cable (Stepper Motor Driver Controller)

The MACH3 5 Axis CNC Interface Board is a professional motion control interface designed for controlling up to five stepper motor drivers using MACH3 CNC software. Featuring onboard optocoupler isolation, the board provides reliable signal transmission while protecting the control system from electrical noise and interference. It outputs step and direction signals for each axis, ensuring precise motor control in CNC routers, engraving machines, plasma cutters, laser cutters, and milling machines.

The interface board connects to a computer through the parallel port for MACH3 control, while the included USB cable is used to provide power to the board. It is compatible with a wide range of external stepper motor drivers and offers a stable solution for CNC automation projects.

Key Features -

• Supports up to 5-axis CNC motion control

• Compatible with MACH3 CNC control software

• Optocoupler isolation for enhanced signal protection

• Independent step and direction outputs for each axis

• Reliable anti-interference performance

• Compatible with external stepper motor drivers

• Onboard status indicator LEDs

• Stable signal transmission for precise motion control

• USB cable included for board power supply

• Suitable for CNC routers, laser engravers, plasma cutters, and milling machines

Specifications -

• Product type - CNC Motion Control Interface Board

• Axis support - 5 Axis

• Control software - MACH3 Compatible

• Signal isolation - Optocoupler Isolation

• Output signals - Step (PUL) and Direction (DIR)

• Driver compatibility - External Stepper Motor Drivers

• Communication interface - Parallel Port (DB25)

• Power supply - USB 5V / External Power (Model Dependent)

• Package / Mounting type - PCB Interface Board

• Included accessory - USB Cable

Applications -

• CNC router machines

• CNC engraving machines

• Laser engraving and cutting systems

• Plasma cutting machines

• CNC milling machines

• DIY CNC machines

• Industrial automation systems

• Woodworking CNC equipment

• PCB engraving machines

• Motion control and prototyping
