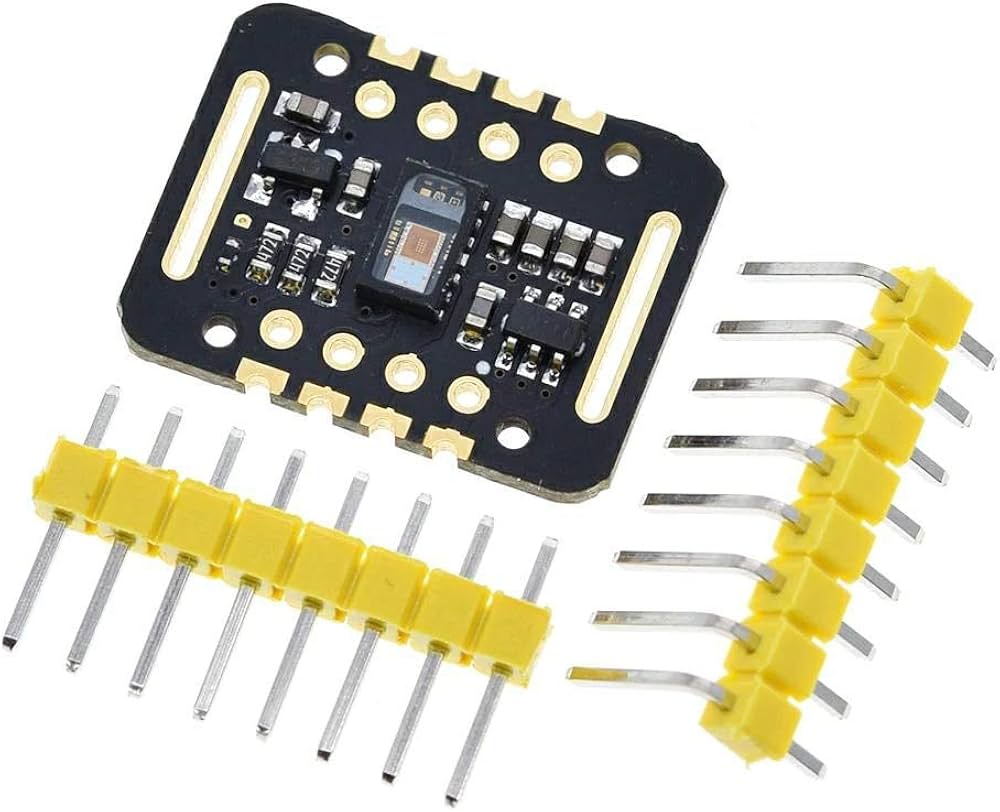

MAX30102 Pulse Oximeter Heart Rate Sensor Module I2C Interface

The MAX30102 Pulse Oximeter Heart Rate Sensor Module is a compact optical sensor board designed to measure blood oxygen saturation (SpO2), heart rate, and pulse via reflecting IR and red light from body tissue. It integrates the MAX30102 sensor IC with onboard I2C interface and signal processing support for easy digital communication with microcontrollers.

This module is ideal for wearable health devices, fitness monitors, biomedical projects, and embedded health measurement systems. The low power design, built-in LED drivers, and I2C communication enable accurate and efficient physiological data acquisition in portable applications.

KEY FEATURES

• Measures heart rate and SpO2 levels
• Uses MAX30102 integrated sensor
• I2C digital communication interface
• Built-in IR and red LED drivers
• Low power consumption
• Compact PCB module
• Suitable for wearable health projects
• Easy microcontroller integration

SPECIFICATIONS

• Sensor IC = MAX30102
• Measurement Type = Heart rate and SpO2
• Operating Voltage = 1.8V supply logic (with onboard regulator for 3.3V/5V)
• Communication Interface = I2C
• LED Types = Red and IR LEDs
• Operating Current = Low power
• Sampling Rate = Configurable via I2C
• Mounting Type = PCB module

INTERFACES

• VCC = Power supply positive
• GND = Ground
• SDA = I2C data line
• SCL = I2C clock line
• INT = Interrupt output
• RDY = Data ready signal
