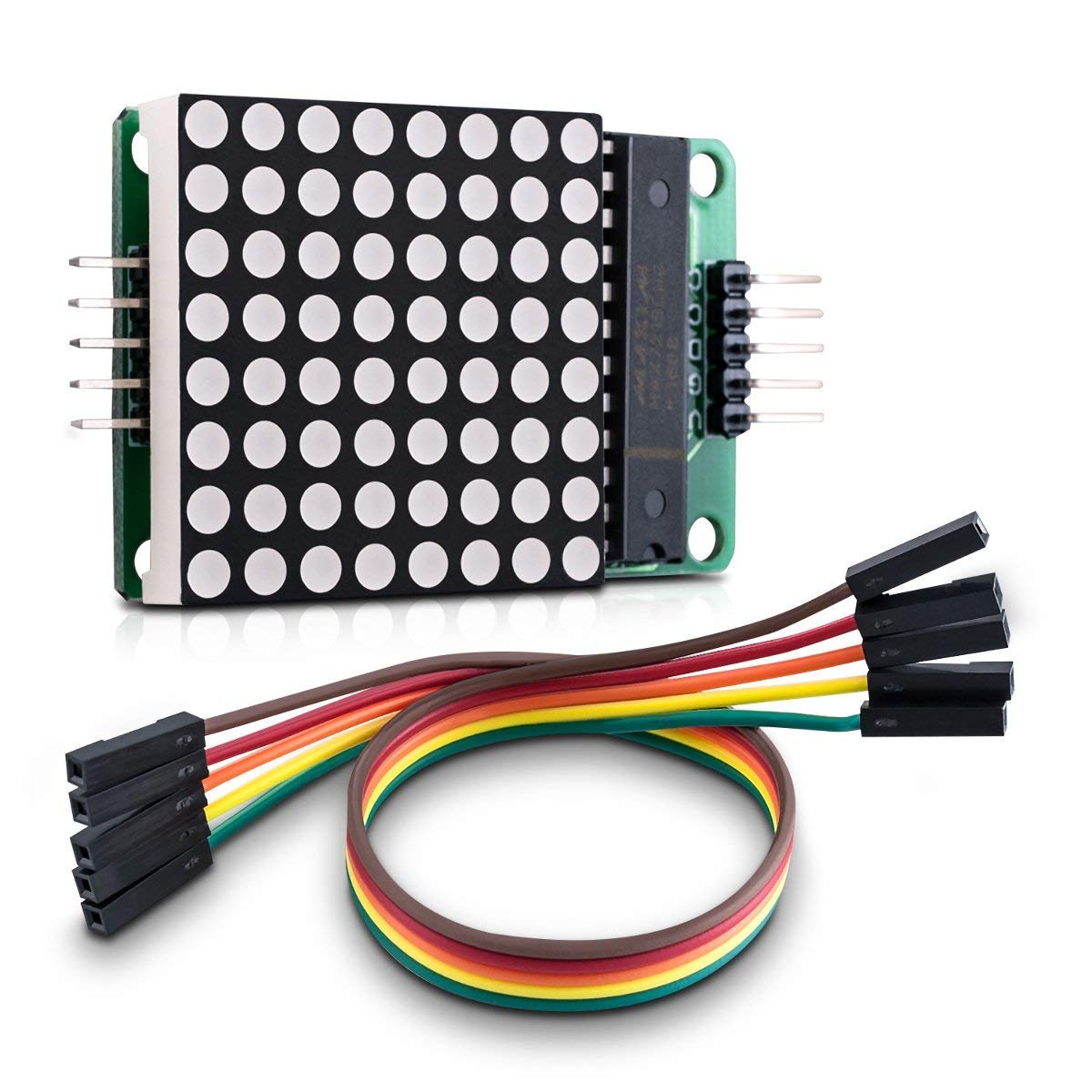

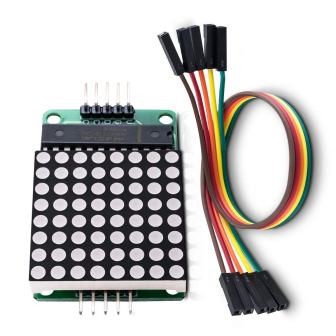

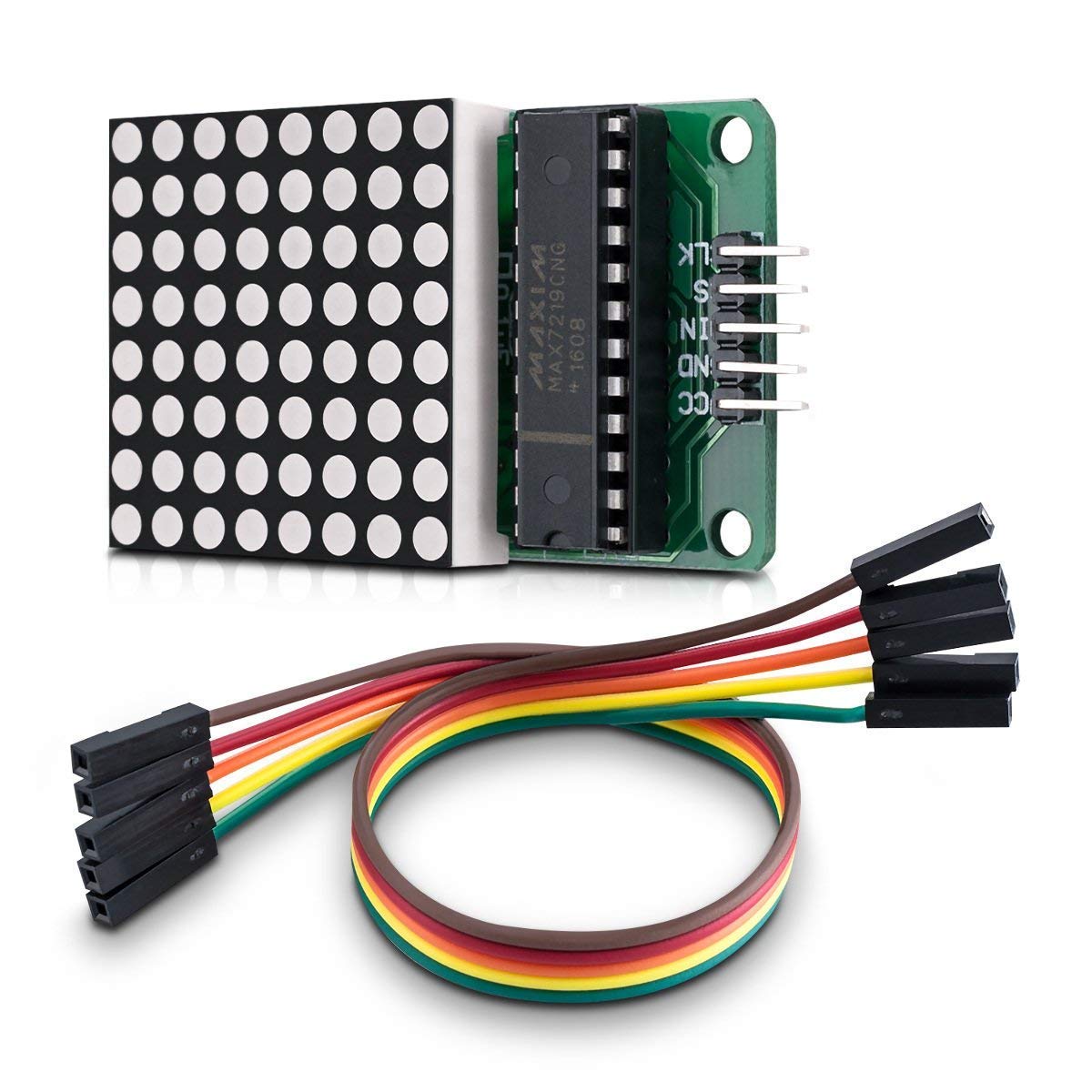

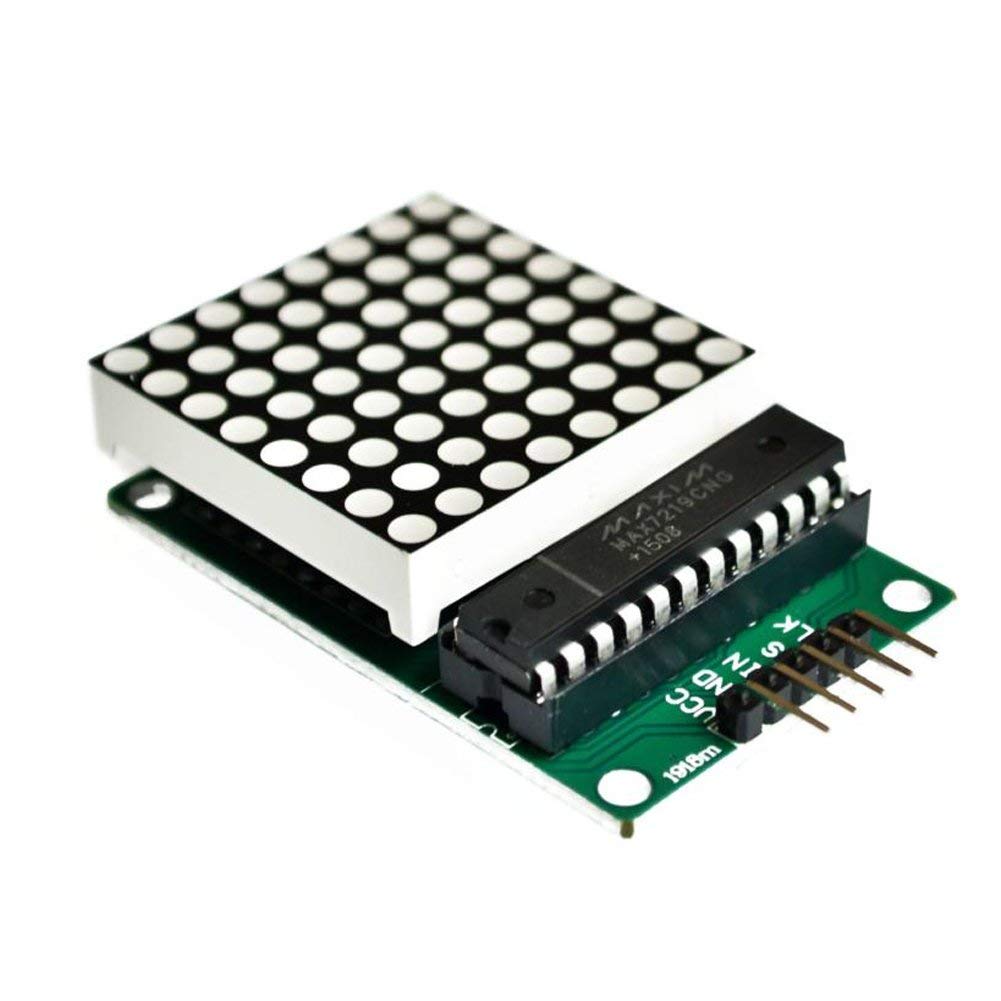

MAX7219 8x8 LED Dot Matrix Display Module (MAX7219 LED Matrix Module)

The MAX7219 8x8 LED Dot Matrix Display Module is a compact display solution designed for displaying text, numbers, symbols, animations, and graphical patterns in electronic projects. Powered by the MAX7219 LED driver IC, this module simplifies interfacing with microcontrollers by requiring only a few control lines while providing efficient control of all 64 LEDs in the matrix.

Key Features -

• 8x8 LED dot matrix display

• Integrated MAX7219 driver IC

• Controls 64 LEDs with minimal wiring

• Serial interface communication

• Adjustable brightness control

• Cascadable design for larger displays

• Compatible with Arduino, ESP32, and Raspberry Pi

Specifications -

• Product type - LED dot matrix display module

• Driver IC - MAX7219

• Display size - 8x8 LED Matrix

• Number of LEDs - 64

• Interface type - Serial SPI-compatible interface

• Operating voltage - 5V DC

• Mounting type - PCB Module

• Brightness control - Digital intensity adjustment

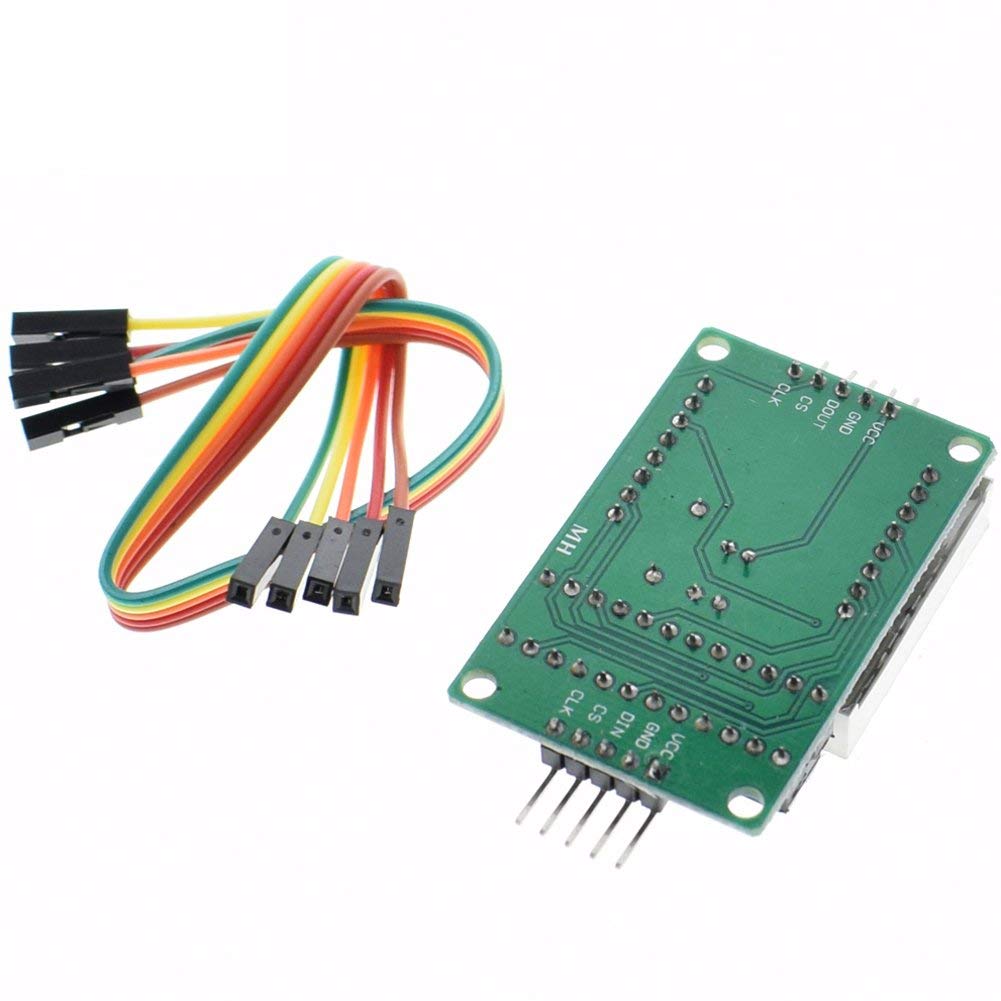

• Communication pins - DIN, CS, CLK

• Additional features - Daisy-chain support and low microcontroller pin usage

Applications -

• Scrolling text displays

• Digital clocks

• Message boards

• Animation projects

• Electronic scoreboards

• Educational electronics projects

• Embedded display systems
