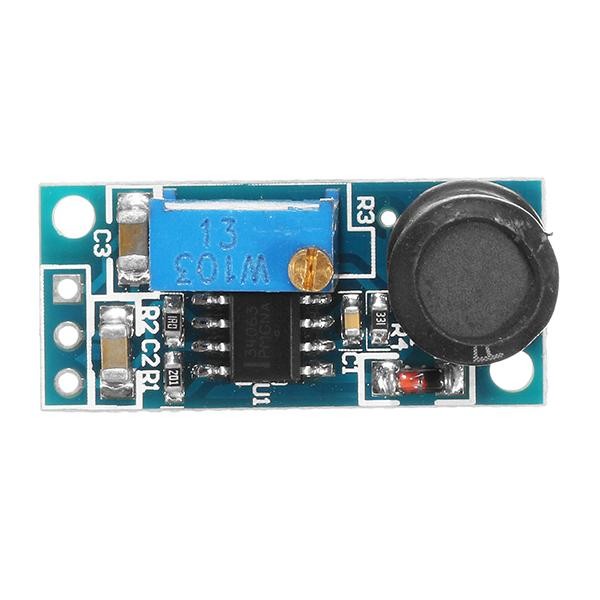

MC34063A Boost Converter Module (DC-DC Step-Up)

The MC34063A Boost Converter Module is a compact DC-DC step-up power module designed to increase low DC input voltage to a higher output voltage. It uses the MC34063A switching regulator IC for efficient voltage conversion in battery-powered and embedded applications.

This module is suitable for battery-powered systems, LED drivers, microcontroller projects, portable electronics, and DIY power supply applications.

Key Features -

• Based on MC34063A switching regulator IC

• DC-DC step-up voltage conversion

• Adjustable output voltage

• Compact PCB module design

• Efficient switching regulation

• Suitable for low-voltage battery systems

• Stable boosted DC output

• Easy integration into electronic projects

Specifications -

• Product Type = DC-DC Boost Converter Module

• Controller IC = MC34063A

• Input Voltage = 3V-12V DC

• Output Voltage = Adjustable up to 28V DC

• Peak Output Current = Up to 1.5A, depending on configuration

• Conversion Type = Boost / Step-Up

• Switching Frequency = Internal Oscillator

• Efficiency = Up to 80% typical

• Mounting Type = PCB Module

Applications -

• Battery voltage boosting

• LED driver circuits

• Microcontroller projects

• Portable electronics

• DIY power supplies

• Embedded systems

• Low-voltage power conversion
