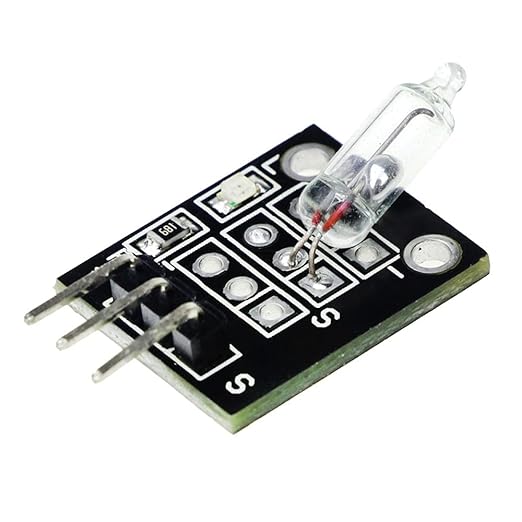

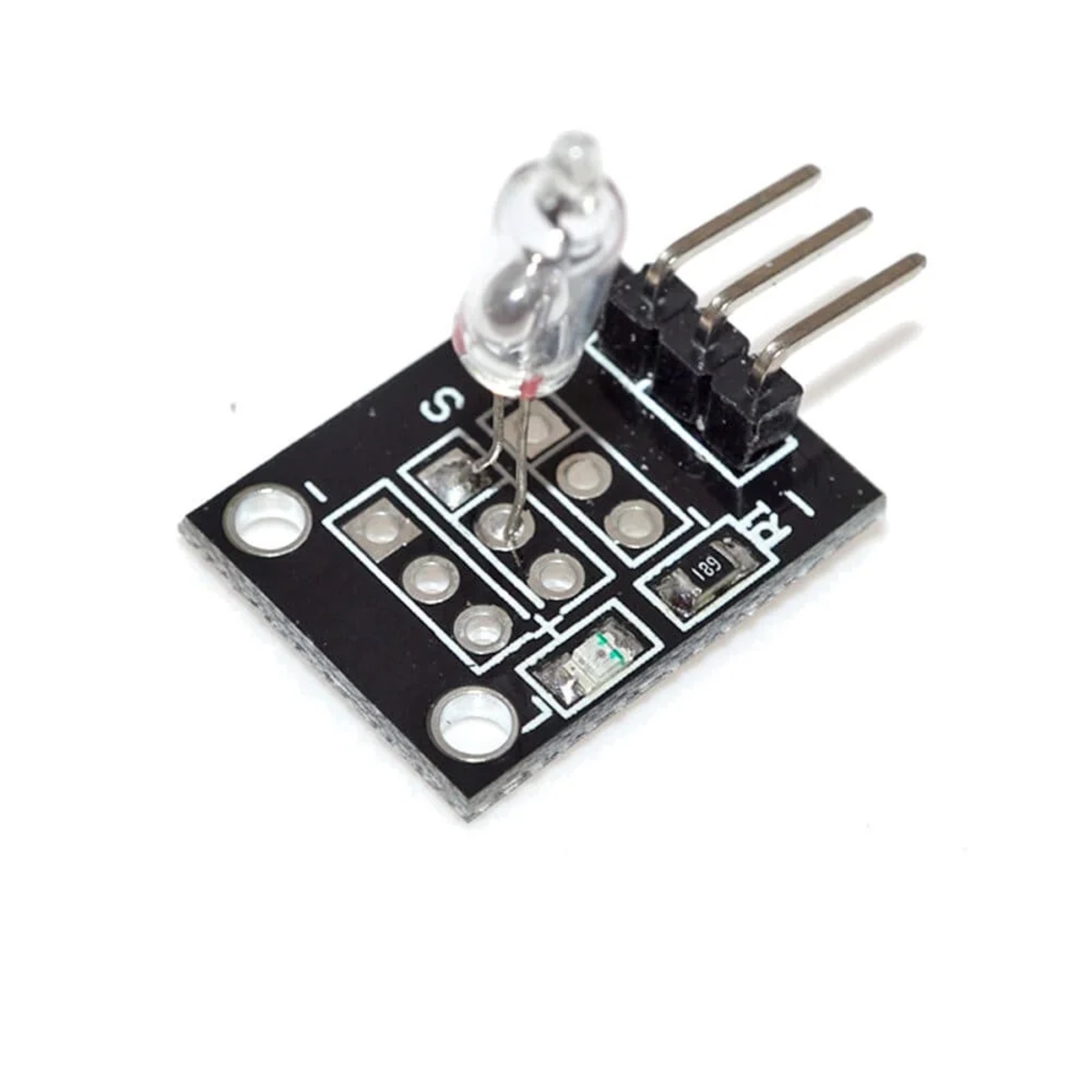

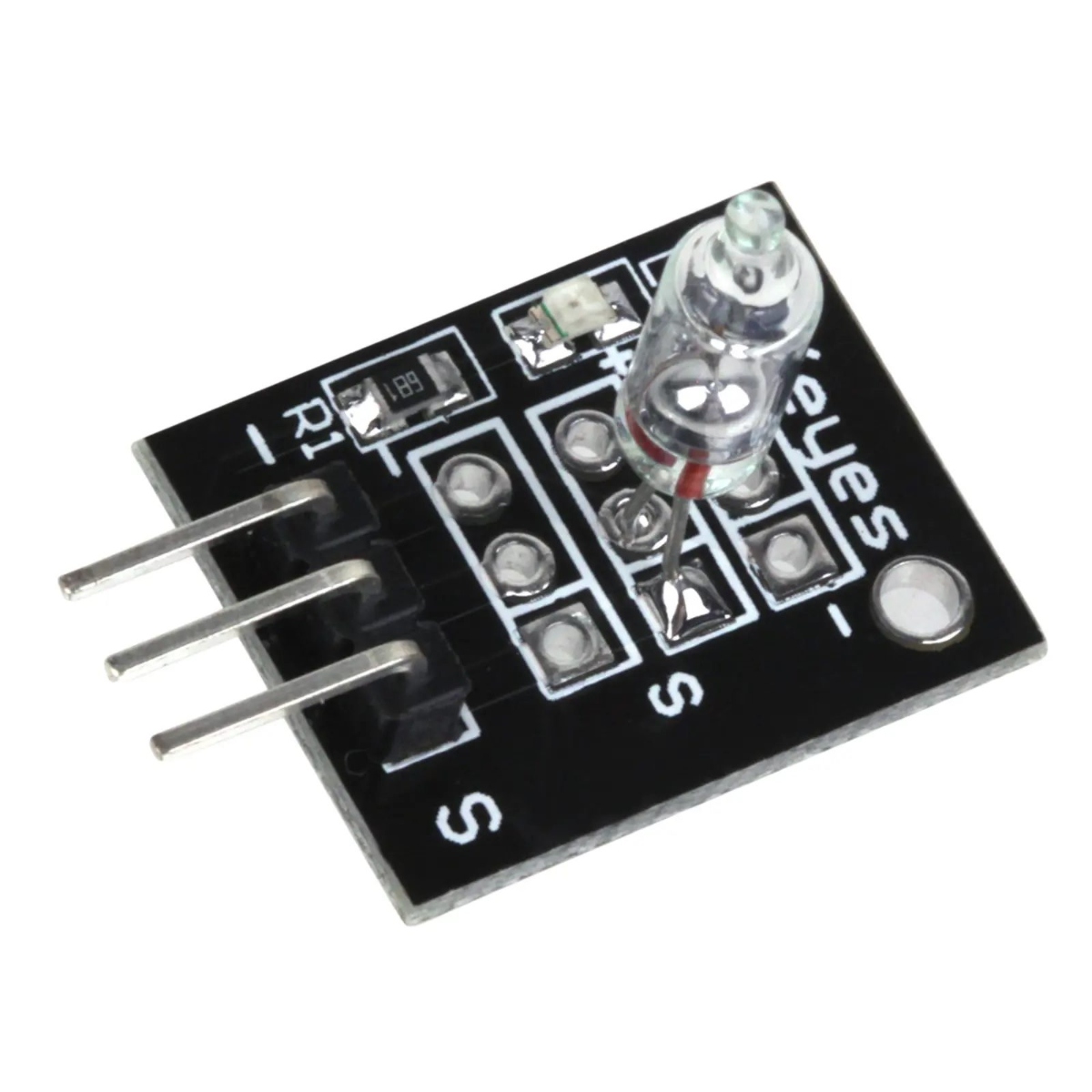

KY-017 Mercury Tilt Switch Sensor Module (3.3V-5V Digital Tilt & Motion Detection Module)

The KY-017 Mercury Tilt Switch Sensor Module is a compact digital sensor designed to detect tilt, orientation changes, and motion using a sealed mercury switch. When the module is tilted beyond a certain angle, the mercury inside the sealed switch flows to make or break electrical contact, generating a digital output signal that can be read directly by Arduino, ESP32, ESP8266, STM32, Raspberry Pi (with suitable interfacing), and other microcontroller platforms. Its simple design and low power consumption make it suitable for tilt detection, motion-triggered alarms, orientation sensing, and educational electronics projects.

Key Features -

• Detects tilt and orientation changes

• Sealed mercury switch sensing element

• Digital HIGH/LOW output

• Fast response time

• Low power consumption

• Compact PCB module

• Easy interface with microcontrollers

• Stable and reliable operation

• Suitable for motion detection applications

• Ideal for DIY and educational projects

Specifications -

• Product type - Tilt Switch Sensor Module

• Module model - KY-017

• Sensor type - Mercury Tilt Switch

• Output type - Digital

• Operating voltage - 3.3V to 5V DC

• Switching action - Opens or Closes Based on Tilt

• Response time - Instant Switching

• Operating temperature - Standard Ambient

• Mounting type - PCB Module

Applications -

• Tilt detection

• Motion-triggered alarms

• Orientation sensing

• Anti-theft systems

• Robotics

• Safety monitoring

• Embedded electronics

• Educational projects
