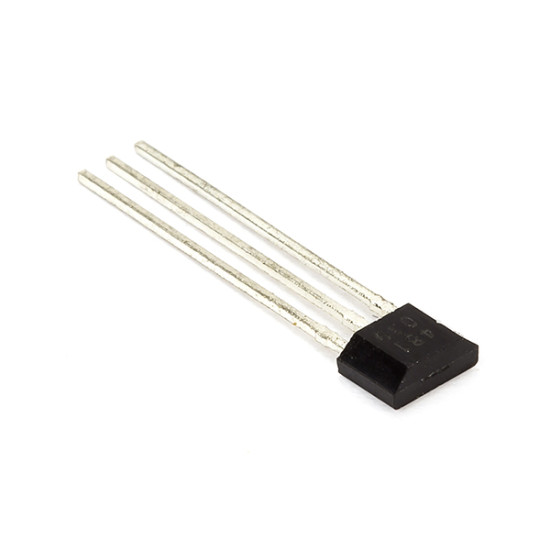

MH481 Linear Hall Effect Sensor IC (Analog Magnetic Sensor / Position and Current Sensing)

The MH481 Linear Hall Effect Sensor IC is a magnetic sensing device designed to detect variations in magnetic field strength and provide an analog voltage output proportional to the applied magnetic field. It uses the Hall effect principle for non contact magnetic field detection and is suitable for applications requiring continuous magnetic sensing.

The MH481 is suitable for position sensing, magnetic field detection, current sensing, speed detection, embedded systems, automation, and industrial electronics.

Key Features -

• MH481 linear Hall effect sensor IC

• Analog voltage output

• Output varies with magnetic field strength

• High sensitivity magnetic detection

• Stable linear response

• Fast response to magnetic field changes

• Low noise operation

• Compact through hole package

• Suitable for non contact magnetic sensing

Specifications -

• Product Type = Linear Hall Effect Sensor IC

• Model = MH481

• Sensor Type = Linear Hall Effect Sensor

• Output Type = Analog Voltage

• Sensing Method = Hall Effect Magnetic Field Detection

• Magnetic Response = Linear Output Proportional to Magnetic Field

• Operating Voltage = Standard Sensor Supply Range

• Response = Fast Magnetic Field Response

• Temperature Stability = Stable Over Operating Temperature Range

• Mounting Type = Through Hole

• Application = Magnetic Field and Position Sensing

Applications -

• Magnetic field sensing

• Position sensing

• Current sensing

• Motor speed detection

• Rotation sensing

• Embedded systems

• Industrial automation

• Electronic control systems

• Magnetic switching and detection circuits

• DIY electronics projects
