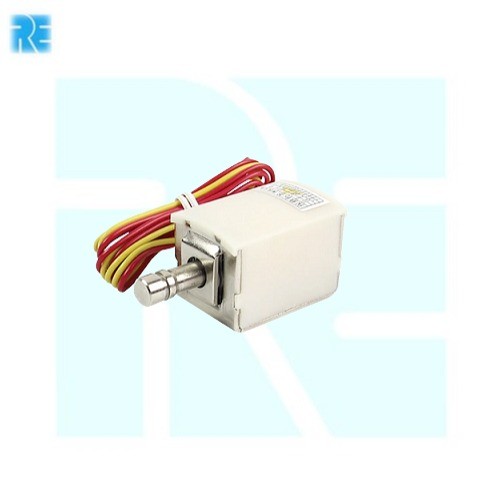

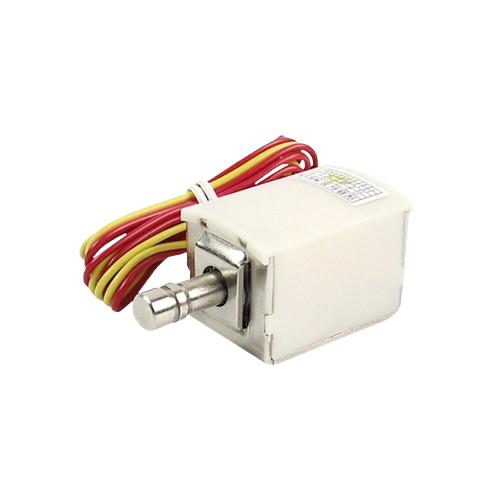

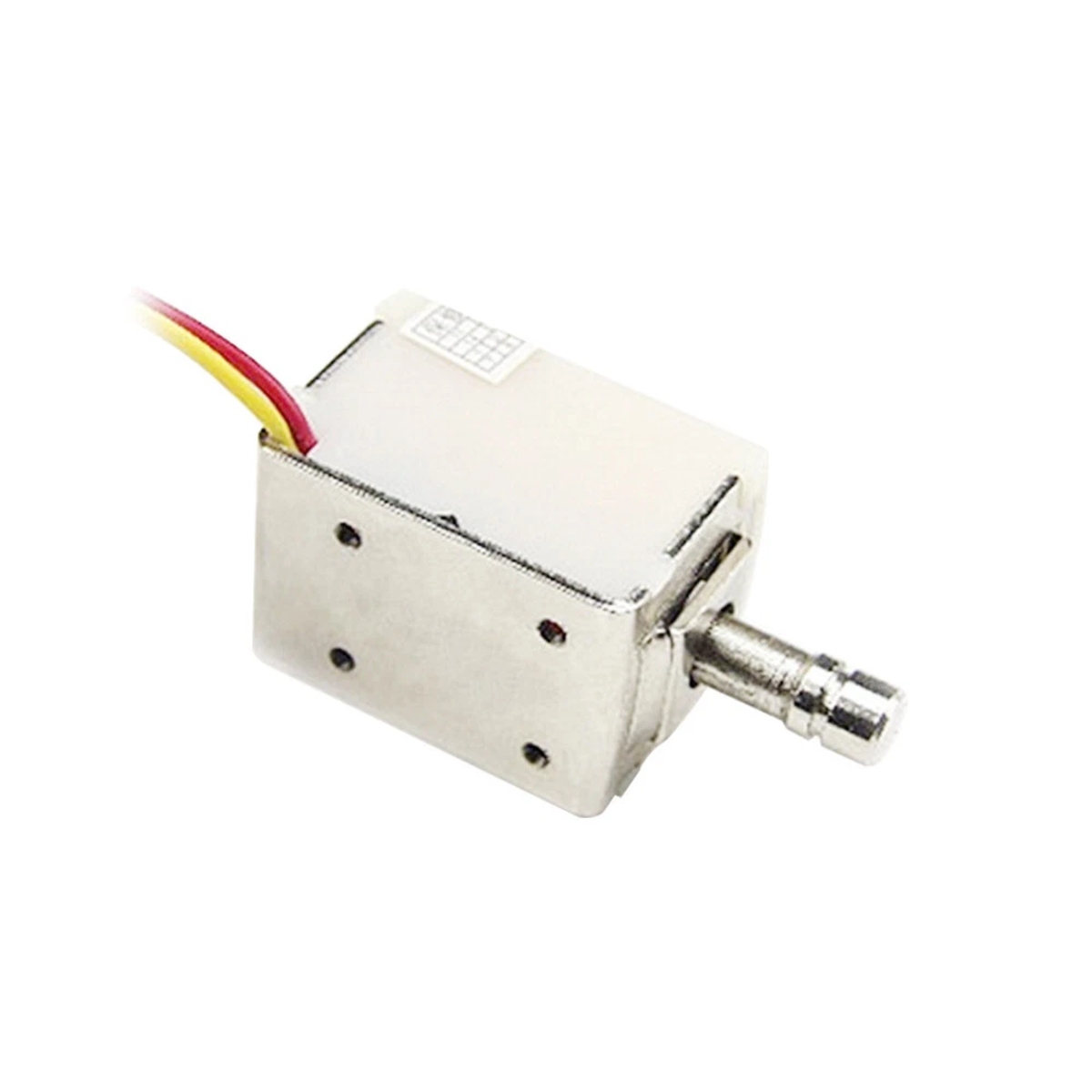

Mini Electric Solenoid Door Lock 12V DC 18mm (Fail Secure)

The Mini Electric Solenoid Door Lock is a compact electronically controlled locking mechanism designed for cabinets, drawers, lockers, vending machines, and small access control systems. It uses an electromagnetic solenoid to retract the metal bolt when 12V DC power is applied, allowing the connected door or mechanism to unlock.

The lock features a fail secure power-off-lock design, meaning it remains locked when power is removed. It provides fast unlocking in less than 1 second and is suitable for relay-controlled, microcontroller-based, and automated access control systems.

Key Features -

• Compact mini electric solenoid door lock

• 12V DC operation

• Fail secure power-off-lock mechanism

• Locked when power is OFF

• 18mm bolt length

• Fast unlocking time of less than 1 second

• Metal construction for durability

• Suitable for relay and microcontroller control

• Designed for short-duration continuous power operation

Specifications -

• Lock Type = Mini electric solenoid door lock

• Operating Voltage = 12V DC

• Operating Current = 1.5A to 3A

• Power Consumption = 18W

• Material = Metal and electronic components

• Operation Mode = Power-off-lock

• Locking Type = Fail secure

• Bolt Length = 18mm

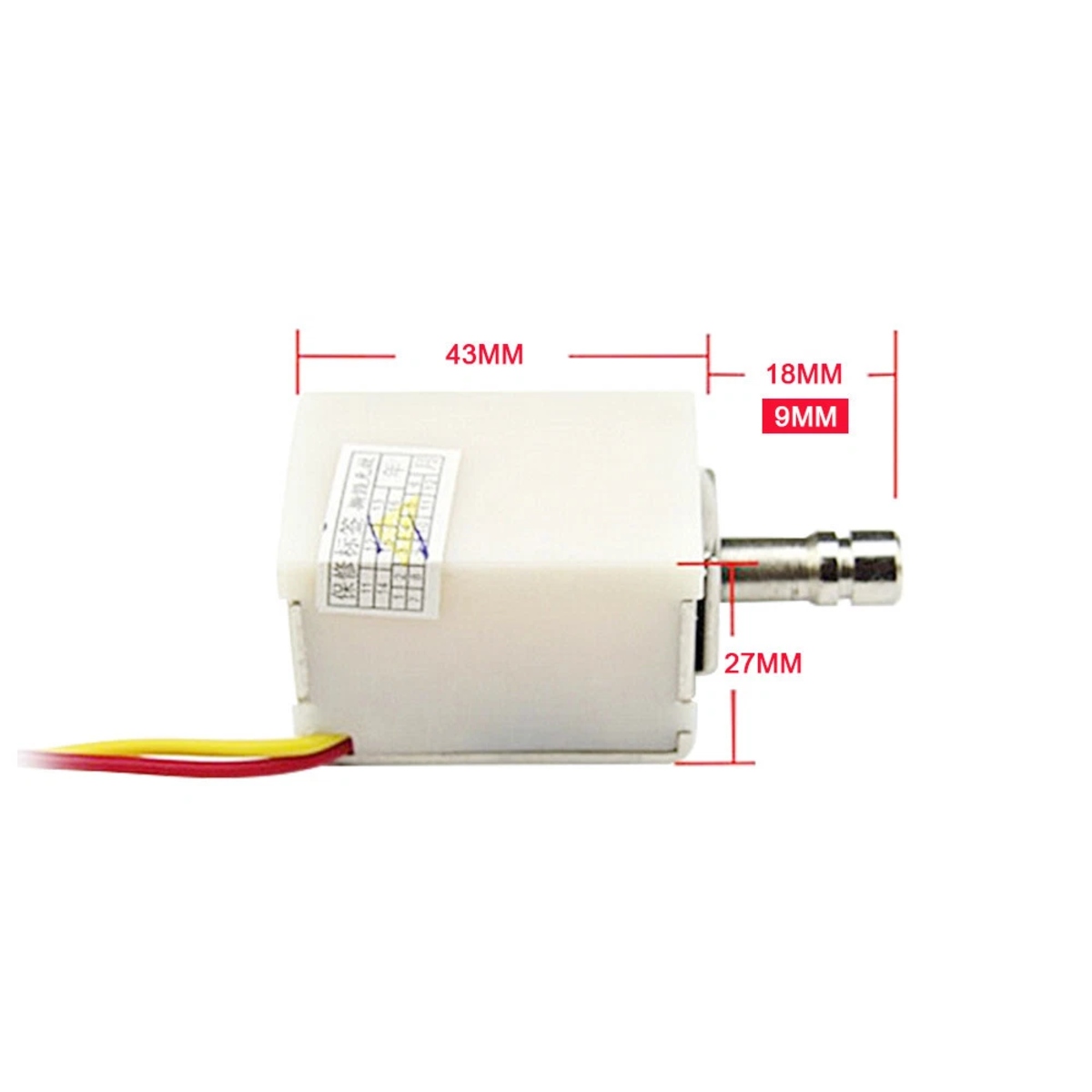

• Lock Dimensions = 43 x 27 x 18mm

• Unlocking Time = Less than 1 second

• Continuous Power Duration = Less than 10 seconds

• Application = Electronic door lock and access control systems

Applications -

• Smart cabinet locks

• Electronic drawers and lockers

• Vending machines

• Access control systems

• Automated locking mechanisms

• Smart storage systems

• IoT security projects

• DIY electronics and automation projects
