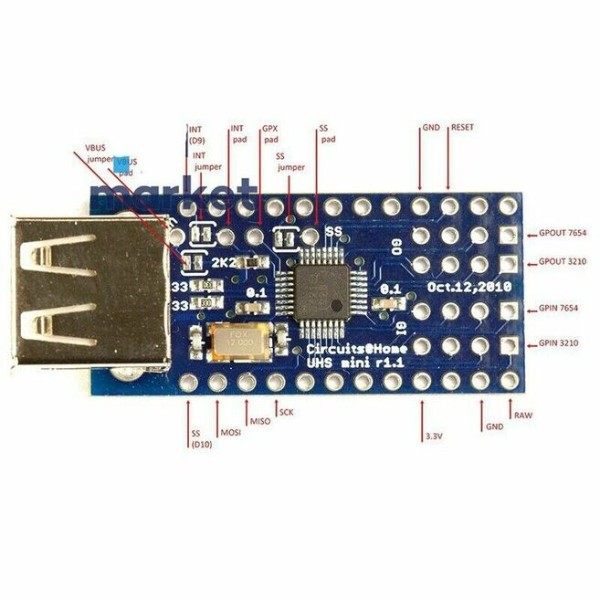

Mini USB Host Shield 2.0 ADK

The Mini USB Host Shield 2.0 ADK is a compact USB host interface board designed to add USB host capabilities to microcontroller platforms. It enables connection and control of USB devices such as keyboards, mice, game controllers, and smartphones. The shield supports OTG (On-The-Go) communication and is compatible with many Arduino-based systems.

This module is suitable for robotics, human-machine interfaces, embedded control systems, and USB peripheral integration with microcontrollers. Its ADK-compatible design allows easy development of interactive USB applications without external USB host controllers.

KEY FEATURES

• Provides USB host functionality
• Compatible with USB 2.0 full speed devices
• Supports OTG and ADK applications
• Compact shield form factor
• Easy integration with Arduino and microcontrollers
• Supports keyboards mice and game controllers
• Stable USB communication support
• Enables USB peripheral interfacing

SPECIFICATIONS

• Standard = USB Host Shield 2.0 ADK compatible
• USB Version = USB 2.0 Full Speed
• Interface = SPI to microcontroller
• Operating Voltage = 5V logic typical
• Mounting Type = Mini shield/PCB module
• Connectivity = USB host socket
• Application = USB peripheral interfacing

INTERFACES

• 5V = Power supply positive
• GND = Ground
• MOSI = SPI master output slave input
• MISO = SPI master input slave output
• SCK = SPI clock
• SS = SPI slave select
• USB D+ = USB data plus line
• USB D- = USB data minus line
