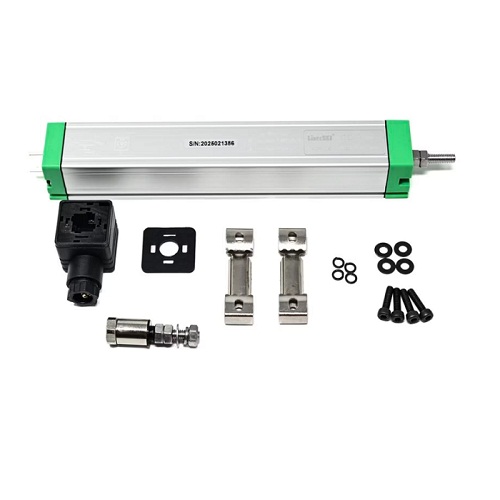

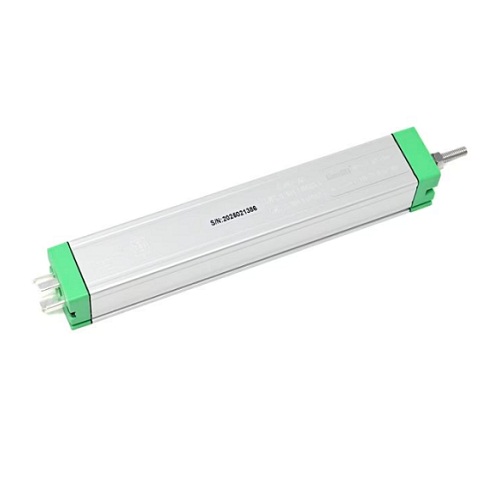

MIRAN LS2-50MM Linear Displacement Sensor 50mm 5kΩ (Precision Linear Position Sensor)

The MIRAN LS2-50MM Linear Displacement Sensor is a high-precision position sensor designed to accurately measure linear displacement over a range of 0 to 50mm. Featuring a resistance output of 5kΩ (±10%) and an independent linearity of ±0.1%, it delivers smooth and consistent position feedback for industrial automation and motion control applications. Its compact, durable construction ensures reliable operation in demanding environments, making it ideal for machinery, robotics, testing equipment, and precision measurement systems.

Key Features -

• Measurement range of 0 to 50mm

• High precision with ±0.1% independent linearity

• 5kΩ resistance output (±10%)

• Smooth and accurate linear position measurement

• High sensitivity for precise displacement detection

• Durable construction for industrial applications

• Compact design for easy installation

• Stable and reliable performance

• Suitable for continuous position monitoring

• Ideal for automation and control systems

Specifications -

• Product Type - Linear Displacement Sensor

• Model - LS2-50MM

• Brand - MIRAN

• Measurement Range - 0 to 50mm

• Independent Linearity - ±0.1%

• Resistance Output - 5kΩ (±10%)

• Measurement Type - Linear Displacement

• Sensor Technology - Linear Position Sensor

• Mounting Type - Mechanical Mount

• Construction - Industrial Grade

Applications -

• Industrial automation

• Hydraulic and pneumatic cylinders

• CNC machinery

• Robotics

• Injection molding machines

• Position feedback systems

• Material handling equipment

• Process control systems

• Testing and measurement equipment

• Precision machinery
