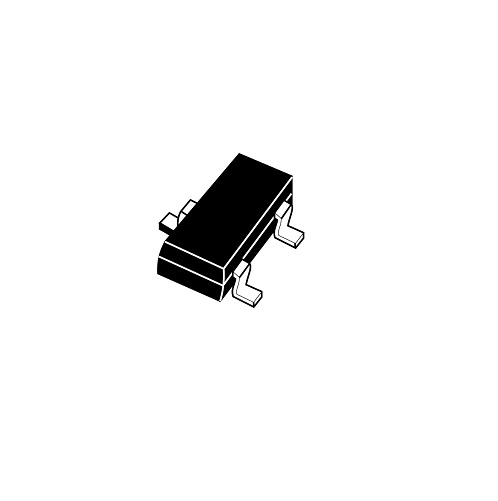

MMBT3904 NPN Transistor SOT-23 SMD Package (General Purpose NPN Bipolar Transistor for Switching and Amplifier Applications)

The MMBT3904 NPN Transistor is a general purpose Bipolar Junction Transistor designed for switching and signal amplification applications. Its compact SOT-23 SMD package makes it suitable for space constrained PCB designs and high speed electronic circuits.

Key Features -

• General purpose NPN Bipolar Junction Transistor

• Compact SOT-23 surface mount package

• High switching speed performance

• Collector current capability up to 200mA

• Wide operating temperature range

• Suitable for amplification and switching applications

Specifications -

• Product type - Bipolar Junction Transistor (BJT)

• Model - MMBT3904

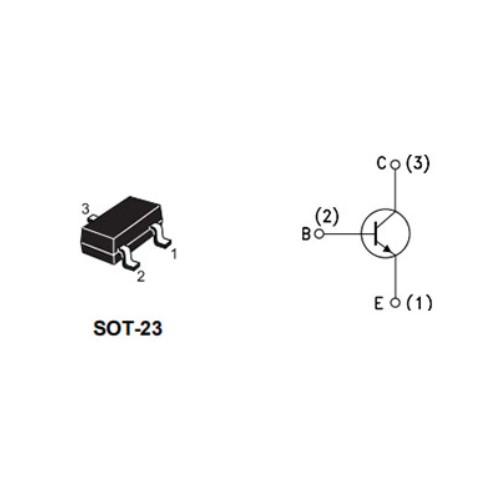

• Package type - SOT-23 SMD

• Mounting type - Surface Mount Device (SMD)

• Voltage rating - Collector Emitter Voltage 40V

• Current rating - Collector Current 200mA

• Frequency - Transition Frequency 250MHz Typical

• Material - Silicon Semiconductor

• Additional features - NPN polarity, Collector Base Voltage 60V, Emitter Base Voltage 6V, DC Current Gain 100 to 300, operating temperature range -55°C to +150°C

Applications -

• Signal amplification circuits

• General purpose switching circuits

• Embedded electronic systems

• Consumer electronics

• Low power control circuits
