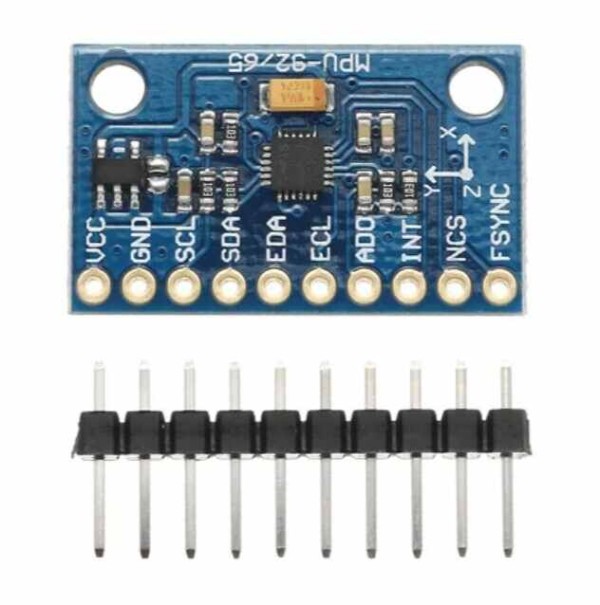

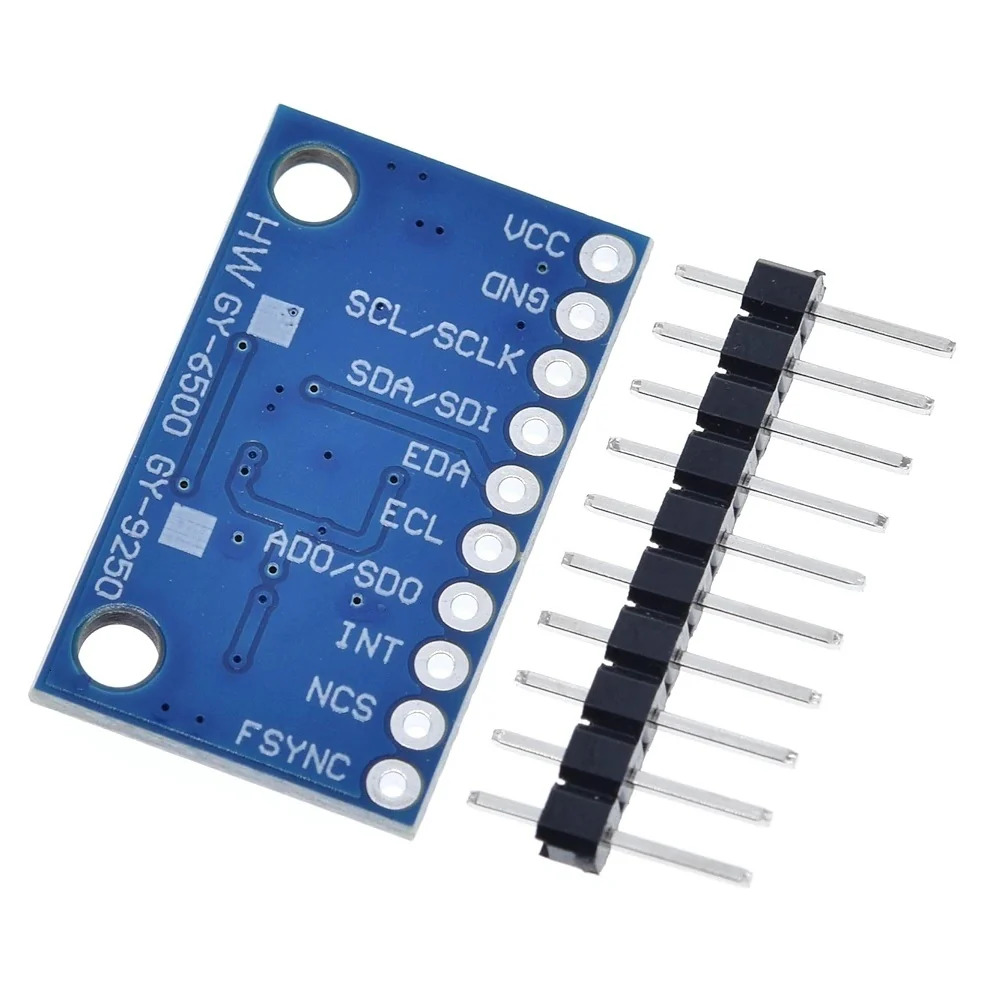

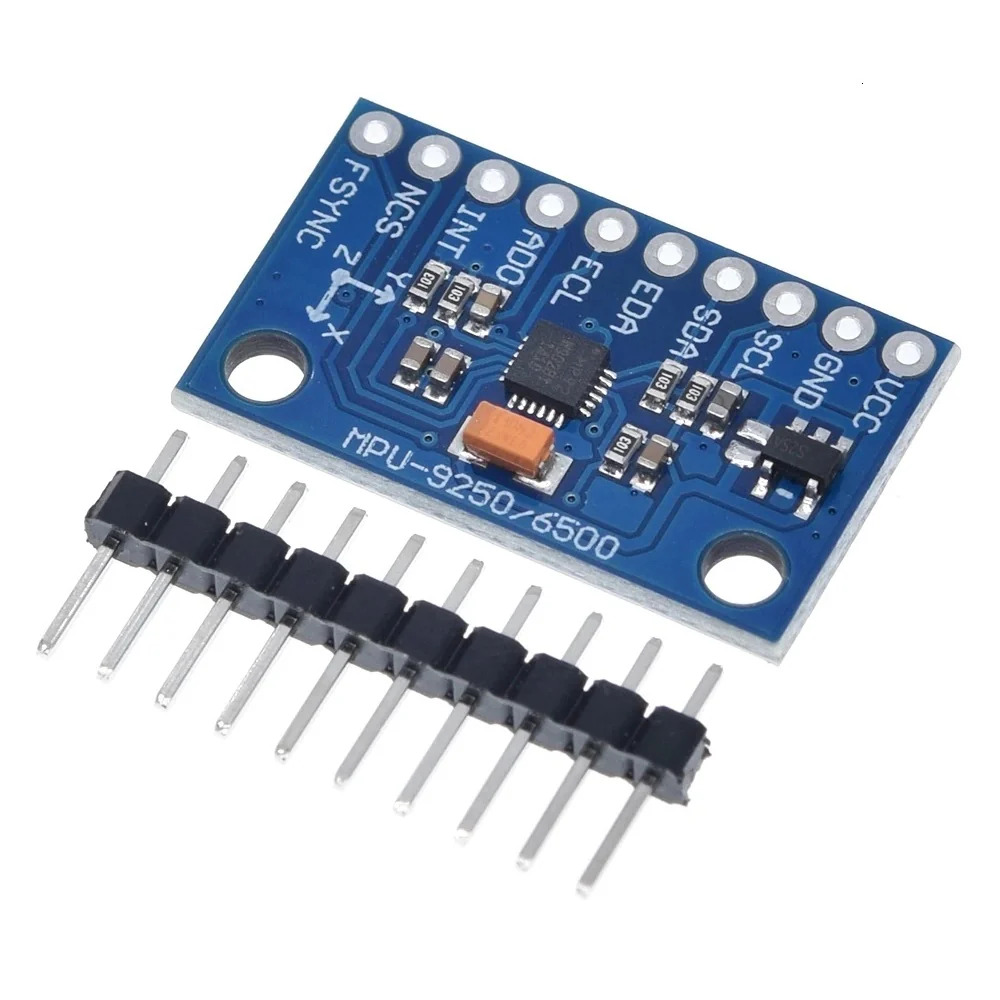

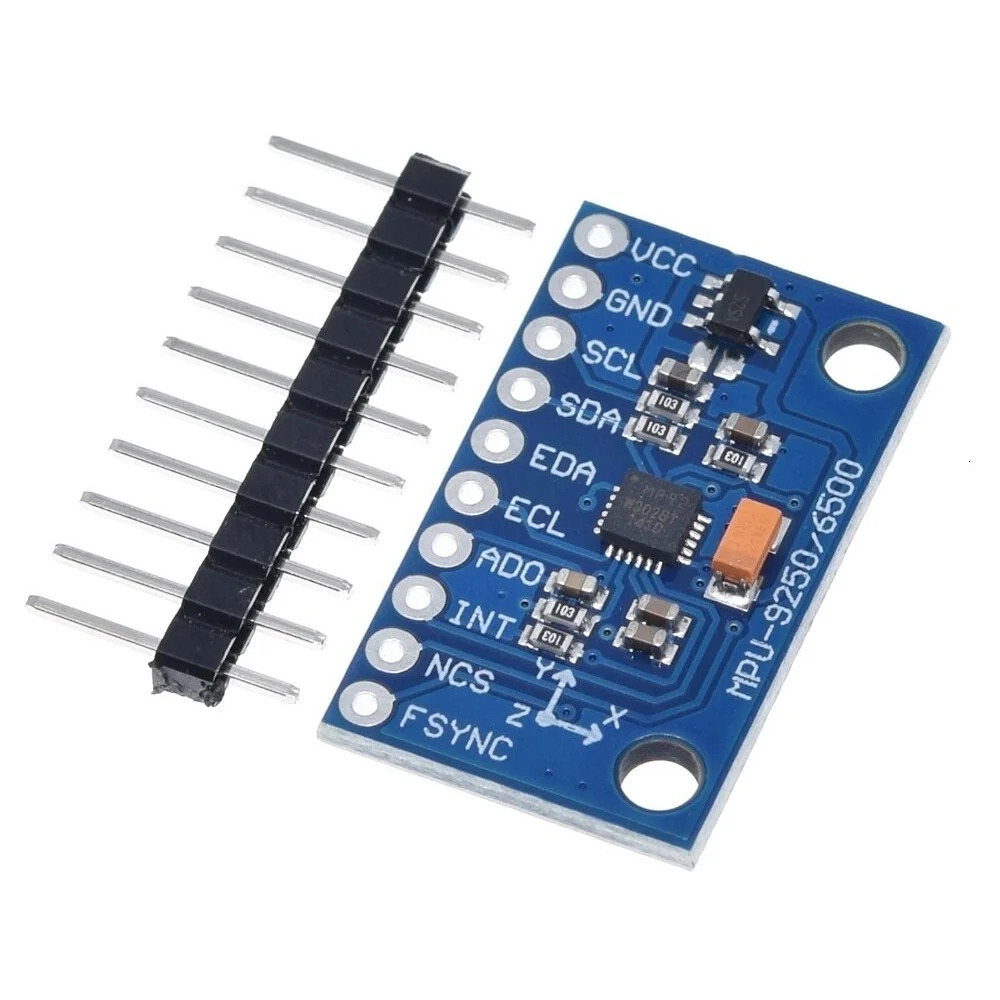

MPU-9250 GY-9250 9-Axis Sensor Module (3-Axis Accelerometer Gyroscope & Magnetometer I2C/SPI)

The MPU-9250 GY-9250 9-Axis Sensor Module is a compact motion sensing board that combines a 3-axis accelerometer, 3-axis gyroscope, and 3-axis magnetometer for measuring movement, orientation, rotation, and magnetic heading. It supports both I2C and SPI communication, allowing easy integration with Arduino, STM32, ESP32, Raspberry Pi, and other microcontroller platforms.

The module is suitable for drone stabilization, robotics, navigation systems, wearable devices, motion tracking, IMU projects, and embedded orientation applications.

Key Features -

• 9-axis motion sensing with accelerometer, gyroscope and magnetometer

• 3-axis accelerometer for linear motion measurement

• 3-axis gyroscope for angular motion measurement

• 3-axis magnetometer for heading and magnetic field measurement

• I2C and SPI digital communication

• Compact GY-9250 PCB module design

• Low power operation

• Easy integration with microcontrollers and development boards

Specifications -

• Product Type = 9-Axis IMU Sensor Module

• Sensor IC = MPU-9250

• Accelerometer = 3-Axis

• Gyroscope = 3-Axis

• Magnetometer = 3-Axis AK8963

• Interface = I2C / SPI

• Operating Voltage = 3.3V DC logic

• Gyroscope Range = ±250 / ±500 / ±1000 / ±2000°/s

• Accelerometer Range = ±2 / ±4 / ±8 / ±16g

• Mounting Type = PCB Module

Applications -

• Drone and UAV stabilization

• Robotics navigation

• Motion tracking systems

• Wearable electronics

• Inertial measurement units (IMU)

• Orientation and heading detection

• Gaming and gesture control

• Arduino, ESP32 and STM32 projects

• Embedded motion control systems
