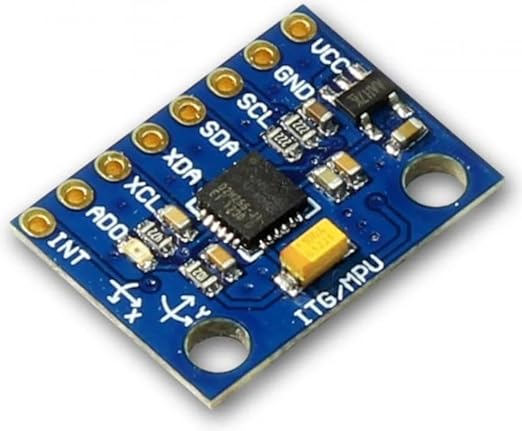

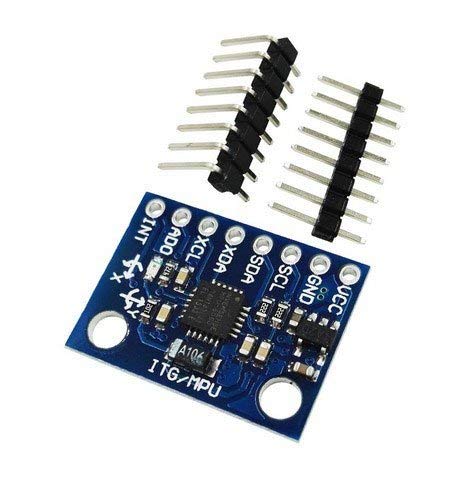

MPU6050 Triple Axis Gyro Accelerometer Module

The MPU6050 Module is a compact 6 axis motion tracking sensor that combines a 3 axis accelerometer and a 3 axis gyroscope in a single chip. It is designed to measure acceleration tilt rotation and motion making it ideal for orientation and stabilization applications.

Built around the MPU6050 sensor from InvenSense this module provides digital output through the I2C interface and includes an onboard Digital Motion Processor for efficient and accurate motion calculations.

KEY FEATURES

• 6 axis motion tracking accelerometer plus gyroscope
• Digital output via I2C communication
• Built in Digital Motion Processor
• High accuracy and low noise
• Selectable sensitivity ranges
• Low power consumption
• Compact and lightweight design
• Easy integration with microcontrollers

SPECIFICATIONS

• Sensor MPU6050
• Accelerometer Range plus minus 2 g 4 g 8 g 16 g selectable
• Gyroscope Range plus minus 250 500 1000 2000 degrees per second selectable
• Operating Voltage 3V to 5V module dependent
• Communication Interface I2C
• Resolution 16 bit ADC
• Clock Speed up to 400 kHz I2C
• Output Type Digital
• Power Consumption low
• Board Type Gyro accelerometer module

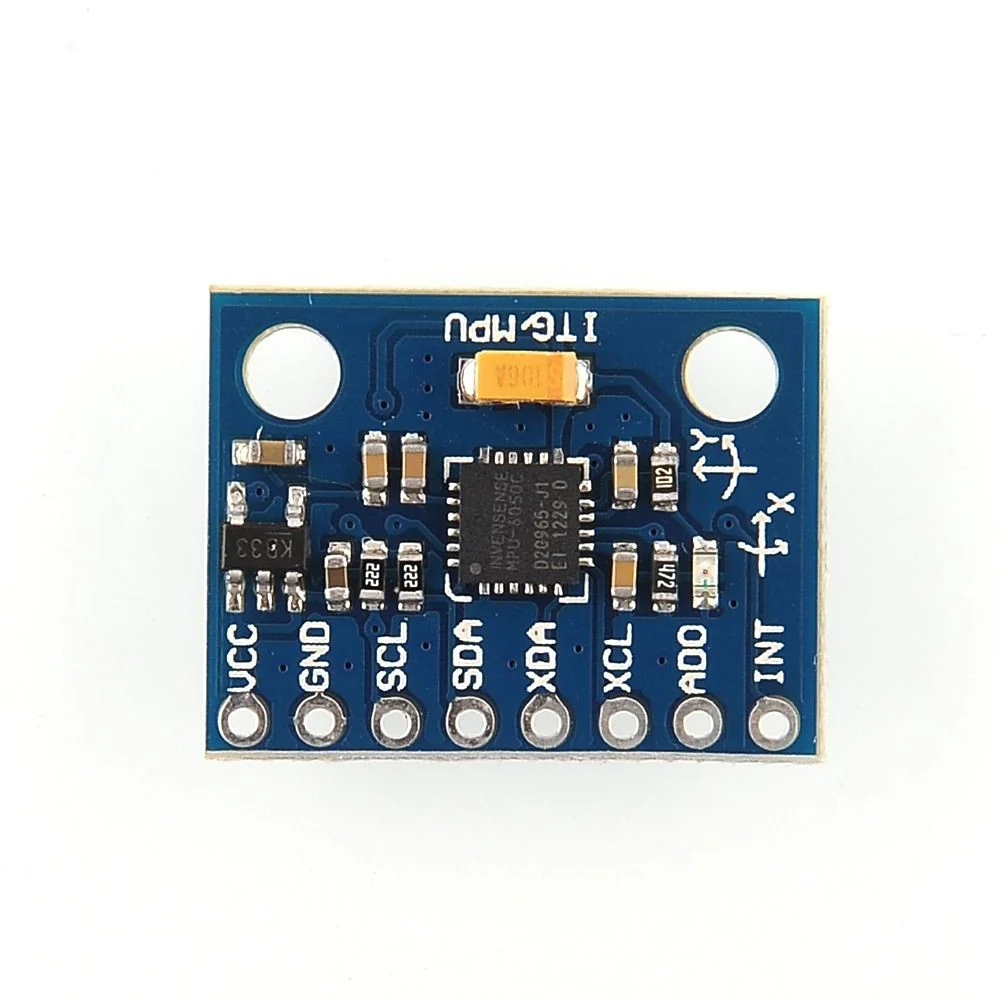

INTERFACES

• VCC Power supply
• GND Ground
• SDA I2C data
• SCL I2C clock
• XDA Auxiliary I2C data optional
• XCL Auxiliary I2C clock optional
• INT Interrupt output

APPLICATIONS

• Self balancing robots
• Drone flight control
• Gesture recognition
• Motion tracking systems
• Tilt sensing
• Wearable devices
• Gaming controllers
• Arduino and embedded projects
