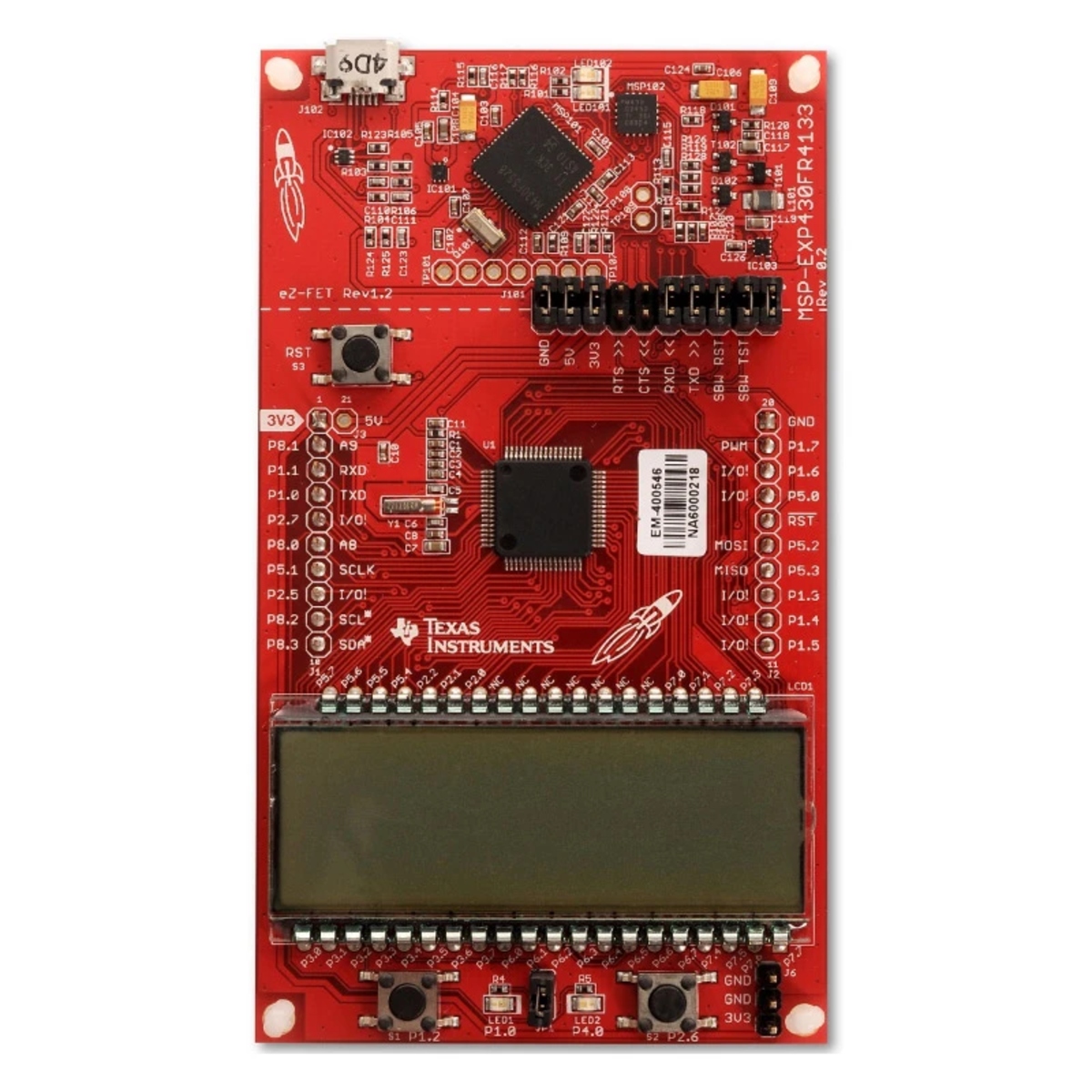

MSP-EXP430FR4133 MSP430FR4133 LaunchPad Development Kit

The MSP-EXP430FR4133 LaunchPad Development Kit is a microcontroller development board designed for applications based on the MSP430FR4133 ultra low power microcontroller. It features the MSP430 FRAM based architecture which provides fast write speed, low power consumption and high endurance memory for embedded applications.

This development board includes an integrated segmented LCD display and onboard debugger which allows easy programming and debugging through USB. It is widely used in low power embedded systems, metering devices, portable electronics and educational microcontroller development projects.

Key Features

• Based on MSP430FR4133 ultra low power microcontroller
• Integrated segmented LCD display
• Onboard debugger and programmer
• FRAM memory for fast and reliable data storage
• Low power operation suitable for battery powered systems
• USB interface for programming and power
• Suitable for embedded development and educational projects

Specifications

• Microcontroller = MSP430FR4133
• Core Architecture = MSP430 16bit microcontroller
• Memory Type = FRAM
• Flash Equivalent Memory = 16KB
• SRAM = 2KB
• Operating Voltage = 1.8V-3.6V
• Development Board Type = LaunchPad development kit
• Programming Interface = USB debug interface

Interfaces

• USB Connector = Power programming and debugging
• GPIO Pins = Digital input output connections
• UART Interface = Serial communication
• I2C Interface = Sensor communication
• SPI Interface = Peripheral communication
• LCD Segment Pins = Segmented LCD display interface
