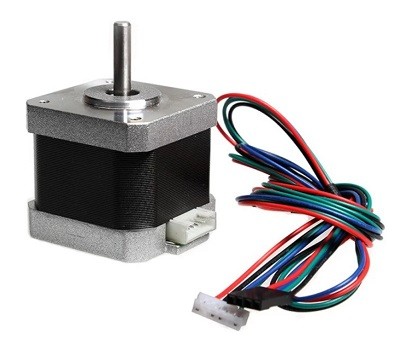

Nema17 Stepper Motor 17HS1352-P4130 1.3A 0.25Nm 1.8 Degree

The Nema17 Stepper Motor 17HS1352-P4130 is a precision two phase hybrid stepper motor designed for accurate position and speed control applications. It features a 1.8 degree step angle providing 200 steps per revolution for smooth and controlled motion.

This motor is suitable for 3D printers CNC machines laser engravers robotics and automation systems. With rated current of 1.3A per phase and holding torque of 0.25Nm it delivers reliable performance for compact motion control setups.

KEY FEATURES

• Standard Nema17 frame size
• 1.8 degree step angle
• 200 steps per revolution
• 0.25Nm holding torque
• 1.3A rated current per phase
• Stable and smooth rotation
• Suitable for CNC and 3D printer use

SPECIFICATIONS

• Model - 17HS1352-P4130
• Motor Type - 2 phase hybrid stepper motor
• Step Angle - 1.8 degree
• Rated Current - 1.3A per phase
• Holding Torque - 0.25Nm
• Phase Resistance - Approx 2 to 3 ohm typical
• Phase Inductance - Typical hybrid motor value
• Shaft Diameter - 5 mm
• Frame Size - Nema17
• Operating Temperature - -20 to +50 degree C

INTERFACES

• Coil A plus - Phase A positive
• Coil A minus - Phase A negative
• Coil B plus - Phase B positive
• Coil B minus - Phase B negative
• Shaft - Mechanical output rotation
