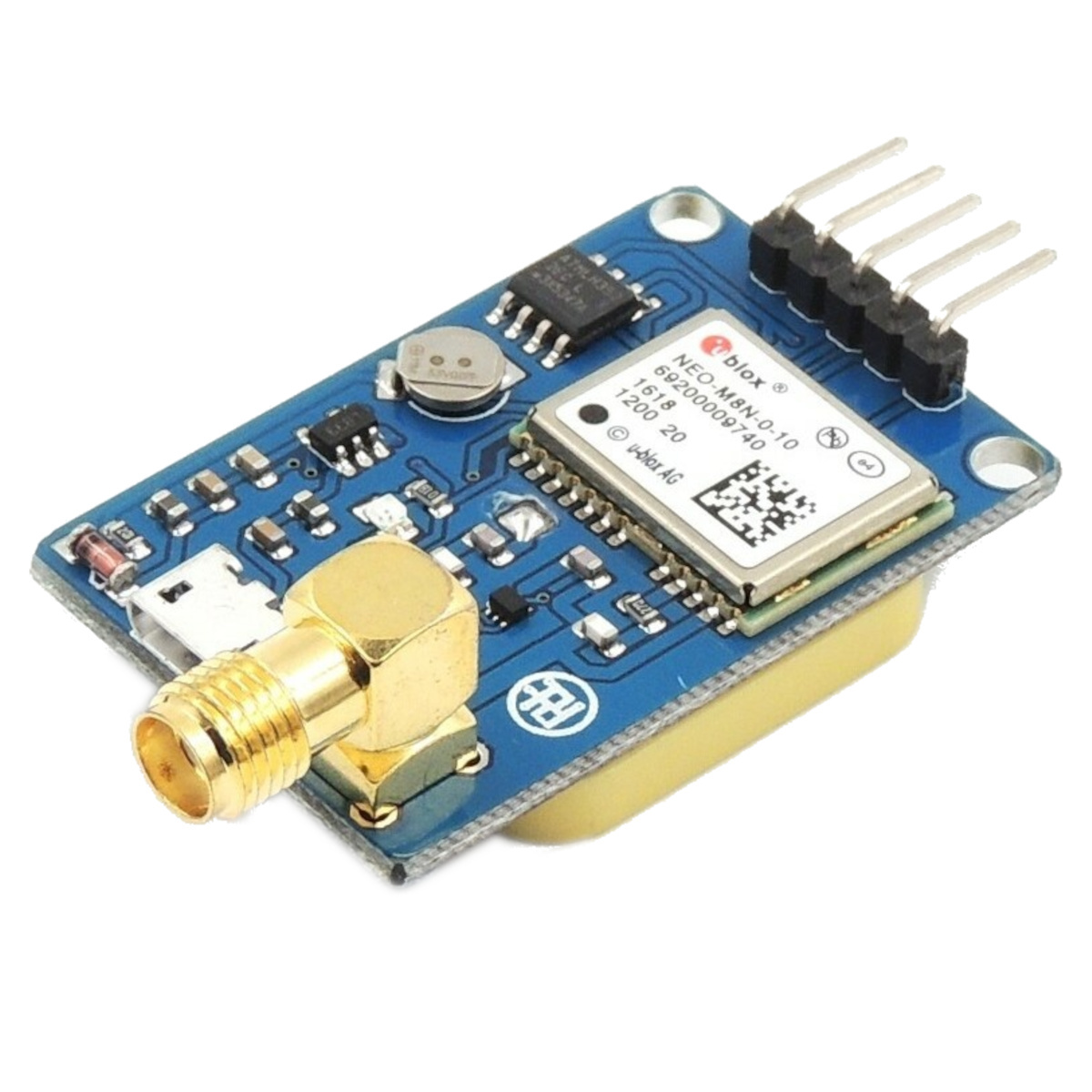

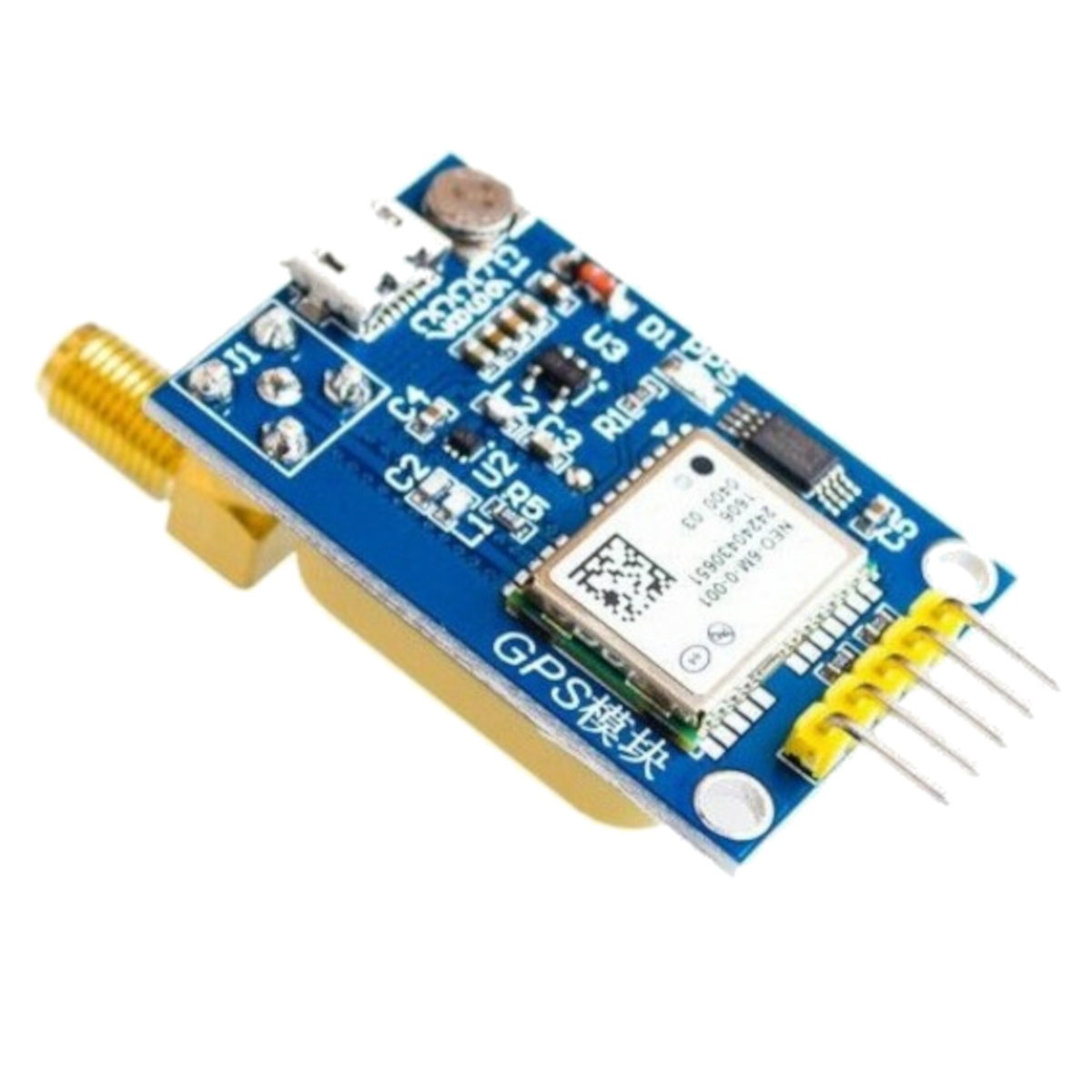

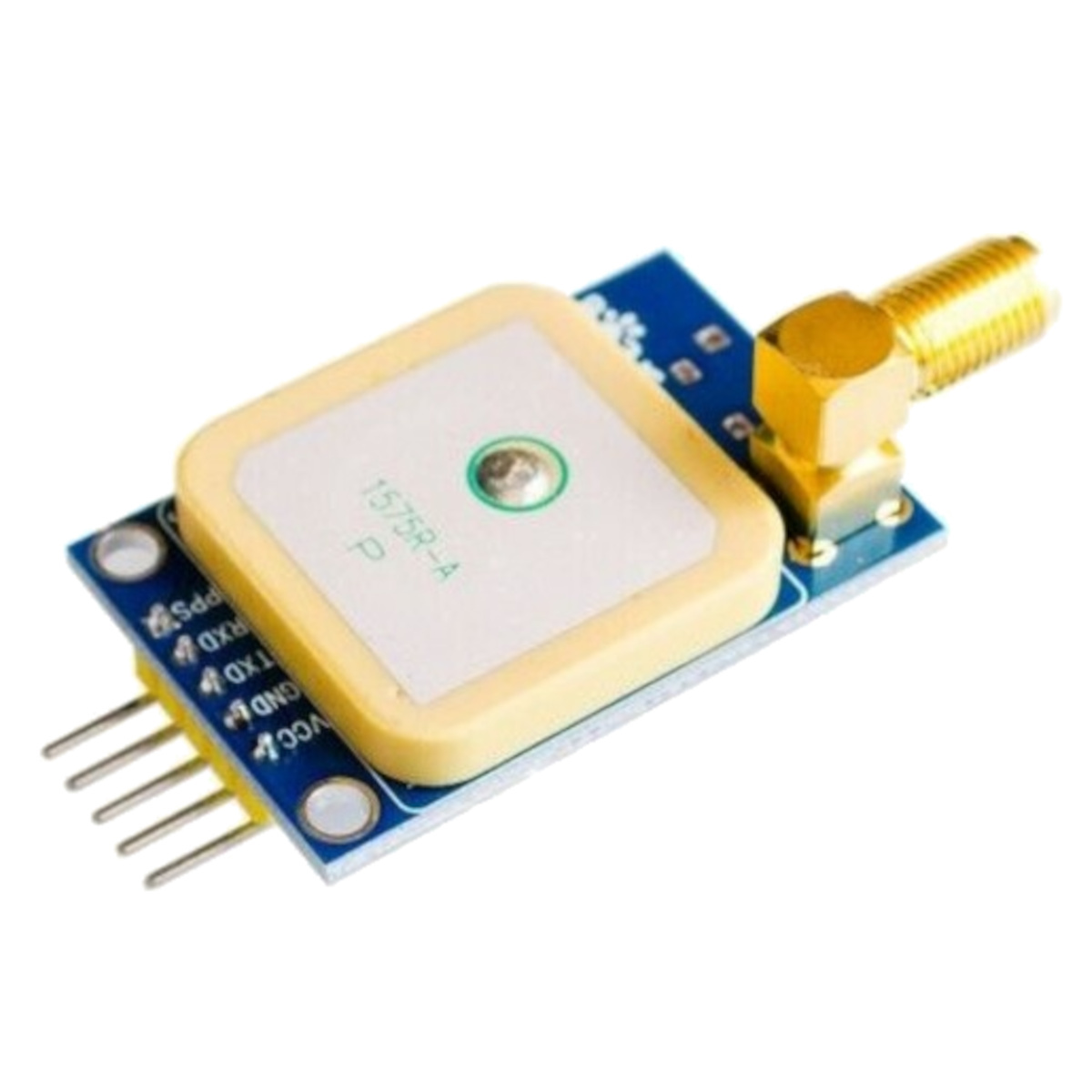

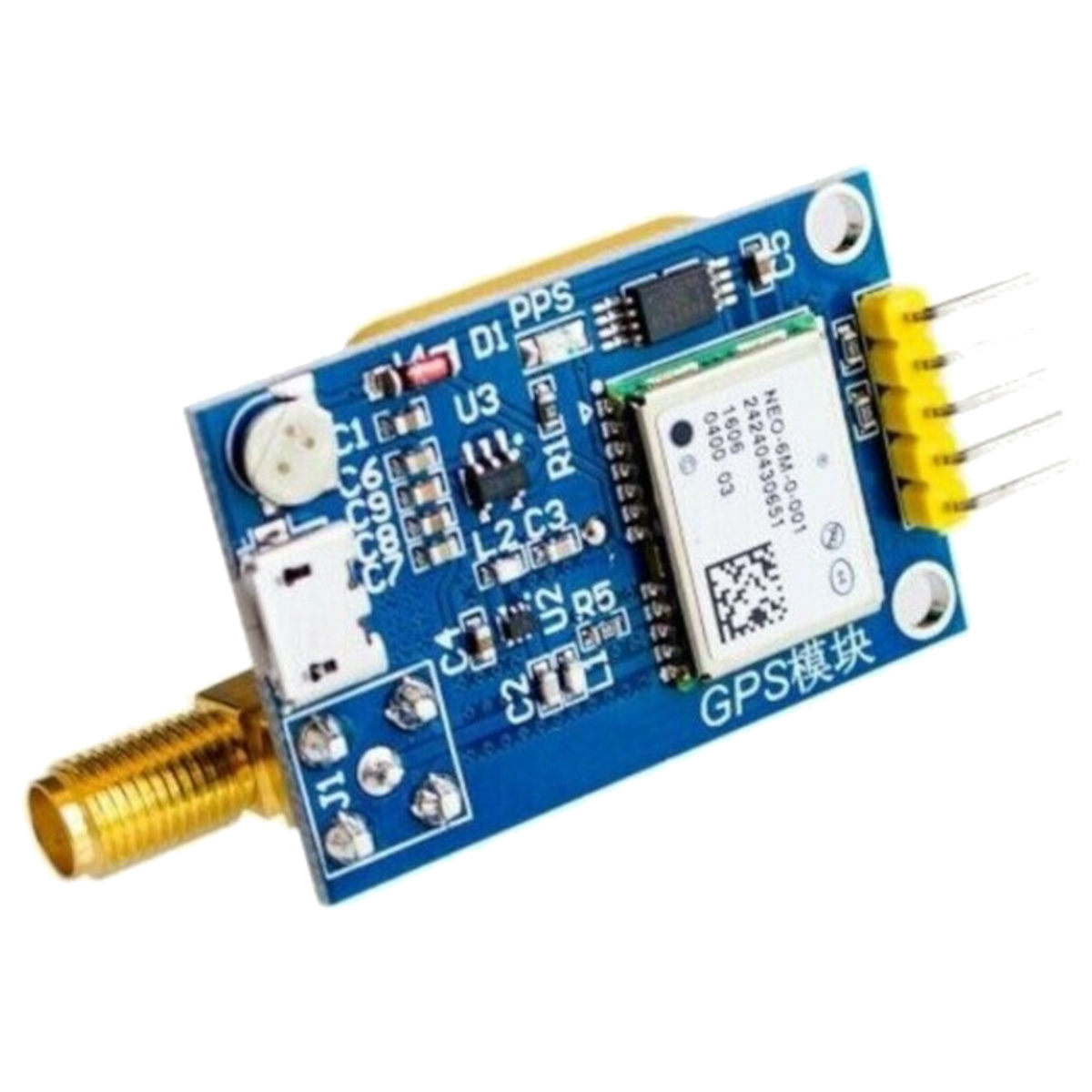

NEO-M8N GPS Module with Serial UART Interface (GNSS Positioning Module)

The NEO-M8N GPS Module is a high-performance GNSS receiver designed for accurate positioning, navigation, and timing applications. Supporting GPS, GLONASS, Galileo, and other satellite navigation systems, it provides fast satellite acquisition, high sensitivity, and reliable location tracking through a standard UART serial interface.

This module is widely used in drones, robotics, vehicle tracking systems, IoT devices, navigation equipment, and embedded development projects requiring precise geographic positioning data.

Key Features -

• High-performance NEO-M8N GNSS receiver

• Supports GPS, GLONASS, Galileo, and QZSS

• UART serial communication interface

• Fast satellite acquisition and tracking

• High positioning accuracy

• Built-in antenna support

• Suitable for outdoor navigation applications

Specifications -

• Product type - GPS GNSS Module

• Model - NEO-M8N

• Receiver type - Multi-GNSS Receiver

• Supported systems - GPS, GLONASS, Galileo, QZSS, SBAS

• Communication interface - UART Serial

• Position update rate - Up to 10Hz

• Supply voltage - 3.3V to 5V DC

• Sensitivity - High Sensitivity GNSS Reception

• Antenna support - External Active or Passive Antenna

• Mounting type - Module Board

Interfaces -

• VCC - Power Input

• GND - Ground Connection

• TXD - Serial Data Output

• RXD - Serial Data Input

• PPS - Pulse Per Second Output

• Antenna Connector - GNSS Antenna Interface

Applications -

• Drone navigation systems

• Vehicle tracking devices

• Robotics projects

• IoT location monitoring

• Marine navigation equipment

• Asset tracking systems

• Embedded GPS applications
