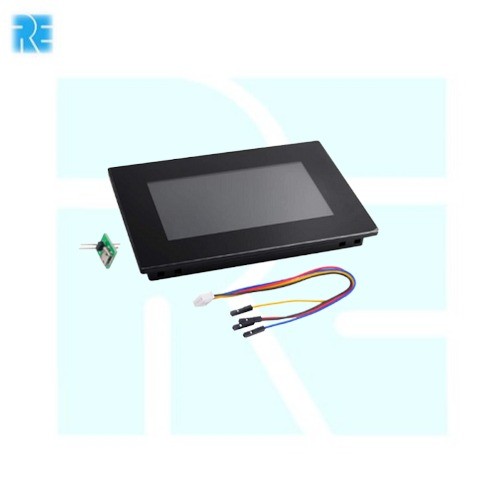

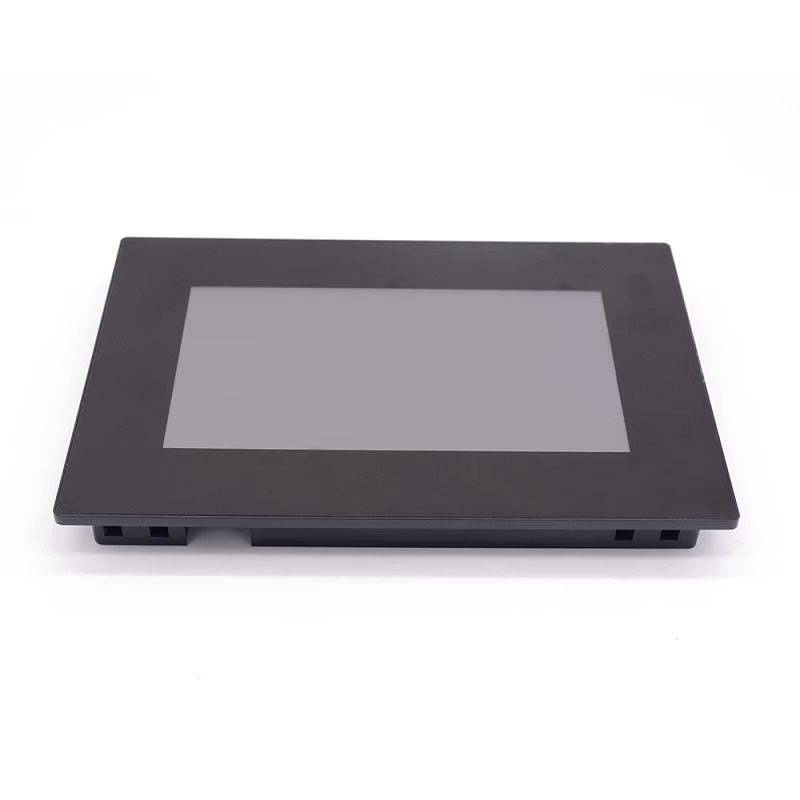

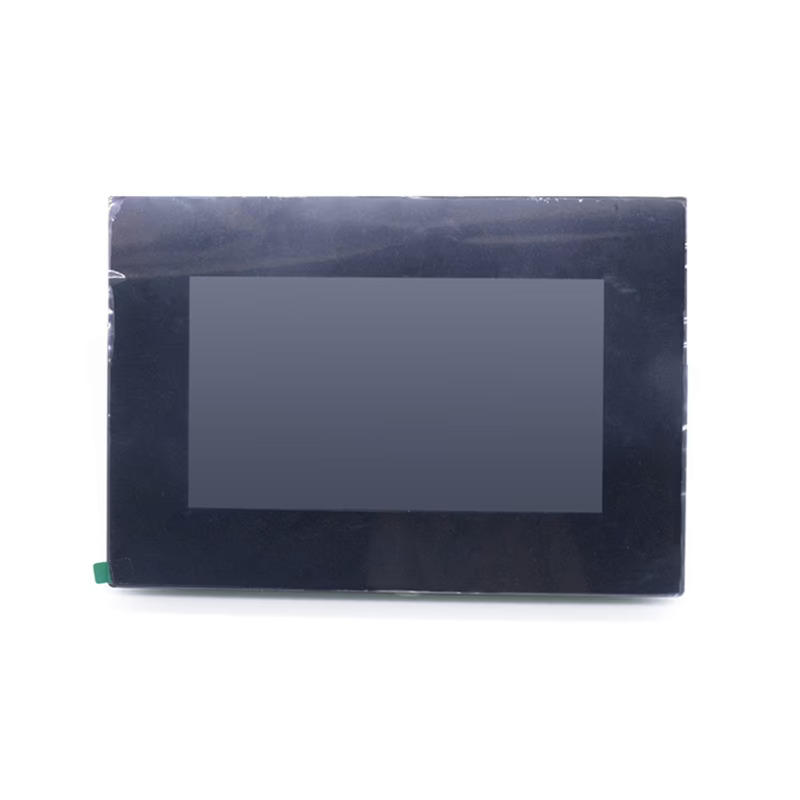

Nextion Enhanced 7 inch TFT LCD Touch Display NX8048K070-011R-Y

The Nextion Enhanced 7 inch TFT LCD Touch Display NX8048K070-011R-Y is a powerful human machine interface display designed for embedded systems, automation equipment and IoT applications. It integrates a high resolution TFT LCD screen with a resistive touch panel and onboard processor which handles graphical user interface operations independently from the host microcontroller.

The display communicates with external controllers through a simple UART serial interface, reducing the processing load on the main controller. With built in flash storage, RTC support and GPIO capability, it is widely used in industrial control panels, robotics systems and smart device interfaces.

Key Features

• 7 inch TFT LCD touch display
• Enhanced Nextion HMI display series
• Resistive touch panel input
• Integrated processor for GUI processing
• Built in RTC and GPIO support
• 32MB flash storage for user interface resources
• Supports Micro SD card up to 32GB
• Suitable for automation systems and embedded HMI

Specifications

• Model = NX8048K070-011R-Y
• Display Size = 7 inch
• Display Type = TFT LCD
• Resolution = 800x480
• Color Depth = 65K colors
• Touch Type = Resistive touch panel
• Operating Voltage = 5V-7V
• Flash Memory = 32MB
• RAM = 8192 byte
• Brightness = 230 nit
• Backlight Lifetime = More than 30000 hours

Interfaces

• VCC = Power supply input
• GND = Ground connection
• TX = Serial transmit data
• RX = Serial receive data
• Micro SD Slot = Data storage and firmware update
• GPIO = External device control interface
