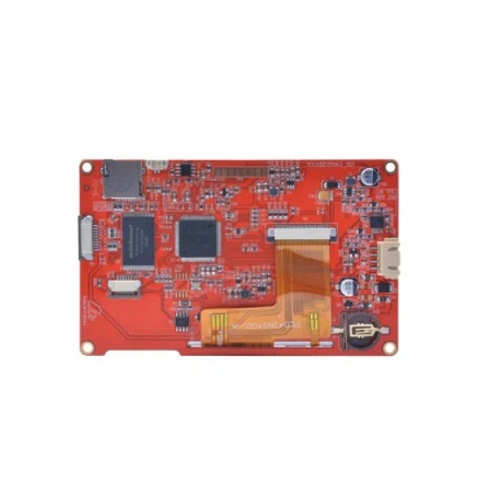

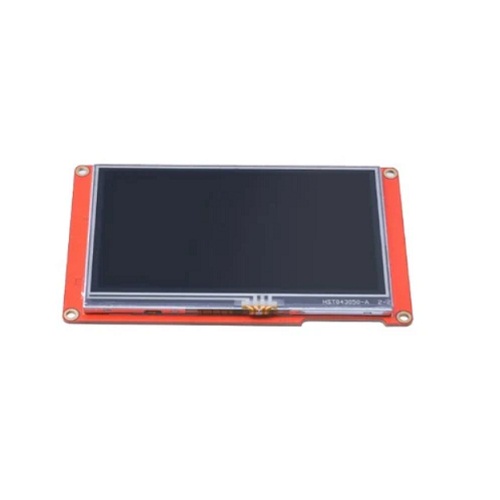

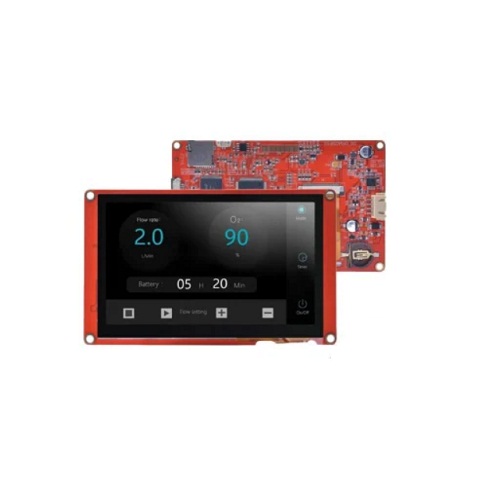

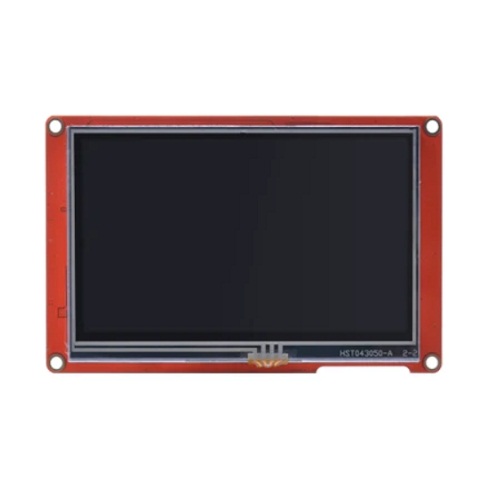

Nextion Intelligent NX4827P043-011R-Y 4.3 Inch HMI Resistive Touch Display with Enclosure (480x272 TFT LCD Intelligent Human Machine Interface Module)

The Nextion Intelligent NX4827P043-011R-Y is a 4.3-inch Human Machine Interface (HMI) display module featuring a 480 × 272 TFT LCD with a resistive touch panel, 200MHz onboard microcontroller, 128MB Flash memory, and a TTL serial communication interface. Designed for industrial automation, embedded systems, Internet of Things devices, and smart control panels, it simplifies graphical user interface development by handling display processing independently from the host controller. The included enclosure and power supply test board enable convenient installation and evaluation.

Key Features -

• 4.3-inch TFT LCD display

• 480 × 272 pixel resolution

• Resistive touch panel

• 200MHz onboard microcontroller

• 128MB Flash memory

• 512KB SRAM

• TTL serial communication interface

• 300 nit display brightness

• 65K RGB colour display

• Built-in Real Time Clock

• 8 digital General Purpose Input Output pins

• 1024 Byte EEPROM for data storage

• 1.25T-2-2A audio port

• Enclosure included for easy installation

• Power supply test board included

Specifications -

• Product Type - Intelligent Human Machine Interface Display

• Model - NX4827P043-011R-Y

• Display Size - 4.3 Inch

• Display Type - TFT LCD

• Touch Panel - Resistive Touch

• Resolution - 480 × 272 Pixels

• Display Colours - 65K RGB

• Brightness - 300 nits

• Onboard Microcontroller Frequency - 200MHz

• SRAM - 512KB

• Flash Memory - 128MB

• EEPROM - 1024 Bytes

• Interface - TTL Serial

• GPIO - 8 Digital GPIOs

• Real Time Clock - Built-in

• Audio Interface - 1.25T-2-2A Audio Port

• Enclosure - Included

• Power Supply Test Board - Included

Applications -

• Industrial automation systems

• Human Machine Interface control panels

• Smart home control systems

• Internet of Things devices

• Embedded system interfaces

• Robotics control panels

• Medical equipment displays

• Laboratory instruments

• Home automation projects

• Electronic product development
