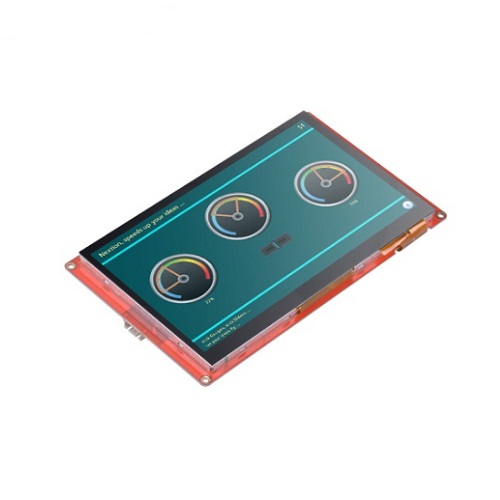

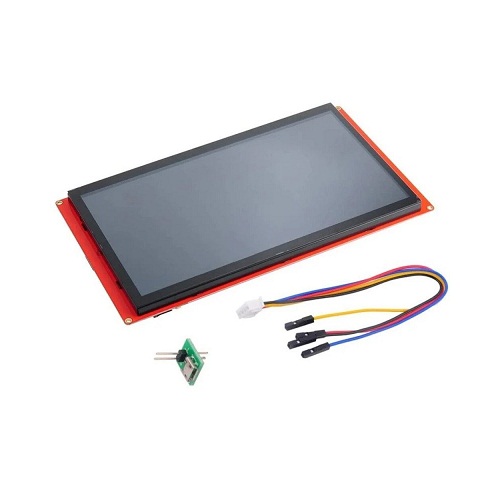

Nextion Intelligent NX8048P070-011C 7.0 Inch HMI Capacitive Touch Display (800x480 TFT LCD Intelligent Human Machine Interface Module)
The Nextion Intelligent NX8048P070-011C is a 7.0-inch Human Machine Interface (HMI) display module featuring an 800 × 480 TFT LCD with a capacitive touch panel, a powerful 200MHz onboard microcontroller, and a TTL serial communication interface. Designed for industrial automation, embedded systems, Internet of Things devices, smart control panels, and interactive displays, it simplifies graphical user interface development by handling display processing independently from the host controller. With support for audio and video playback, it enables the creation of rich and responsive user interfaces.
Key Features -
• 7.0-inch TFT LCD display
• Capacitive touchscreen for responsive operation
• 800 × 480 pixel resolution
• 200MHz onboard microcontroller
• Supports audio and video playback
• Drag-and-drop graphical user interface development
• TTL serial communication interface
• 300 nit display brightness

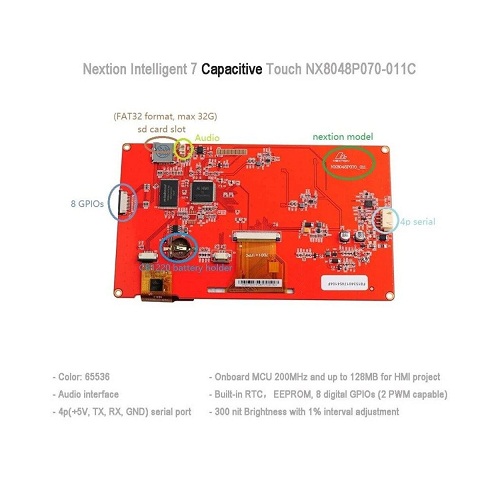

• 8 digital General Purpose Input Output pins
• Suitable for interactive Human Machine Interface applications
• Easy integration with embedded controllers
• Optimized for industrial and automation projects
Specifications -
• Product Type - Intelligent Human Machine Interface Display
• Model - NX8048P070-011C
• Display Size - 7.0 Inch
• Display Type - TFT LCD
• Touch Panel - Capacitive Touch
• Resolution - 800 × 480 Pixels
• Onboard Microcontroller Frequency - 200MHz
• Brightness - 300 nits
• Interface - TTL Serial
• GPIO - 8 Digital GPIOs
• Multimedia Support - Audio and Video
• User Interface Development - Drag-and-Drop GUI Design
• Weight - 700g
Applications -
• Industrial automation systems
• Human Machine Interface control panels
• Smart home control systems
• Internet of Things devices
• Embedded system interfaces
• Robotics control panels
• Medical equipment displays
• Laboratory instruments
• Interactive kiosks
• Electronic product development
