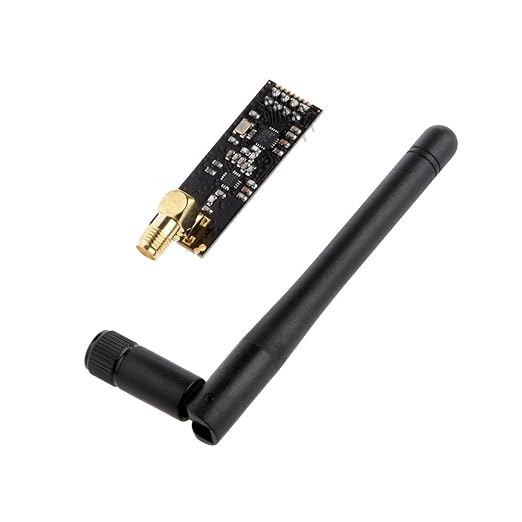

NRF24L01 2.4GHz PA LNA SMA Wireless Transceiver Module with Antenna
The NRF24L01 2.4GHz PA+LNA SMA Wireless Transceiver Module is a high performance RF communication module designed for long range wireless data transmission at 2.4GHz frequency. It integrates the NRF24L01+ chip with a power amplifier (PA), low noise amplifier (LNA), and an external SMA antenna connector to extend communication range and improve signal quality. The module supports high speed SPI interface for easy integration with microcontrollers and embedded systems.
This transceiver is ideal for wireless sensor networks, remote controls, IoT devices, telemetry, robotics, and data communication projects requiring reliable long range wireless links. The external SMA antenna enhances reception and transmission performance, making it suitable for robust RF communication in various environments.
KEY FEATURES
- 2.4GHz wireless transceiver
- Integrates PA and LNA for extended range
- External SMA antenna connector
- High speed SPI interface
- Low power consumption
- Supports multiple data rates and channels
- Compatible with Arduino and microcontrollers
- Suitable for wireless communication projects
SPECIFICATIONS
- RF Chip NRF24L01 with PA and LNA
- Frequency Range 2.400GHz to 2.4835GHz
- Modulation GFSK
- Interface SPI
- Supply Voltage 3.3V DC
- Data Rate Up to 2Mbps
- Antenna Connector SMA
- Operating Temperature -40C to +85C
INTERFACES
- VCC 3.3V power input
- GND Ground
- MOSI SPI Master Out Slave In
- MISO SPI Master In Slave Out
- SCK SPI Clock
- CSN SPI Chip Select
- CE Chip Enable control
- IRQ Interrupt output
- SMA Antenna connector
