NUCLEO-H753ZI STM32 Nucleo-144 Development Board With STM32H753ZI MCU Supports Arduino ST Zio And Morpho Connectivity

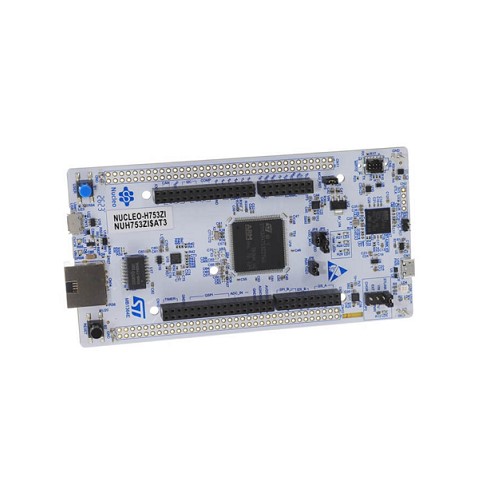

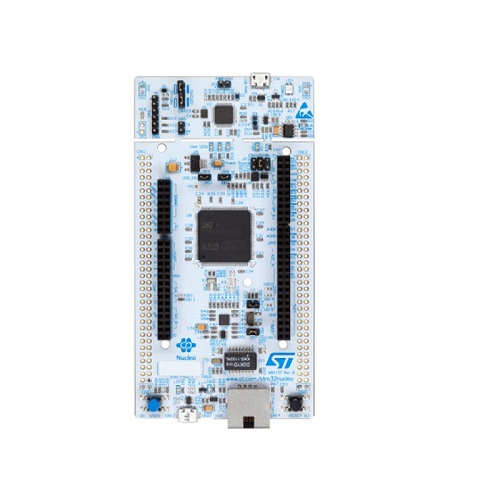

The NUCLEO-H753ZI development board is a high performance STM32 Nucleo-144 platform based on the STM32H753ZIT6 microcontroller. It features the ARM Cortex M7 core designed for advanced embedded applications requiring high processing performance and flexible connectivity options.
The board provides multiple expansion interfaces including Arduino compatible connectors ST Zio and ST Morpho connectors enabling easy integration with a wide range of peripheral modules and expansion boards. It also integrates the ST LINK debugger programmer allowing direct programming and debugging through USB connection making it suitable for professional development prototyping and evaluation of STM32 microcontrollers.
Key Features
- Based on STM32H753ZIT6 ARM Cortex M7 microcontroller
- Nucleo 144 development board platform
- Supports Arduino ST Zio and ST Morpho connectivity
- Integrated ST LINK debugger and programmer
- Three user LEDs for status indication
- One user push button and one reset push button
- 32.768 kHz crystal oscillator onboard
- Flexible power supply options through USB or external sources
- Ethernet support compliant with IEEE 802.3 2002
- USB device and USB OTG full speed support
- Compatible with STM32Cube software libraries and examples
- Supports IAR Embedded Workbench MDK ARM and STM32CubeIDE
Specifications
- Manufacturer Part Number = NUCLEO-H753ZI
- Microcontroller = STM32H753ZIT6
- Core Architecture = ARM Cortex M7F
- Core Type = 32 bit ARM processor
- Silicon Family = STM32
- Package Support = LQFP144 TFBGA225 VFBGA264
- Evaluation Target = STM32H753ZIT6U
- Crystal Oscillator = 32.768 kHz
- Ethernet = IEEE 802.3 2002 compliant
- USB Support = USB device and USB OTG full speed
- Power Supply Options = ST LINK USB VBUS USB connector or external source
- Kit Contents = Nucleo 144 development board STM32H753ZIT6
Interfaces
- ST LINK USB = Programming and debugging interface
- SWD = Serial wire debug interface
- USB = Power supply and communication interface
- Arduino Headers = Expansion connector interface
- ST Zio = High density expansion connector
- ST Morpho = Extended GPIO expansion interface
- Ethernet = Network communication interface
- GPIO = General purpose input output pins
