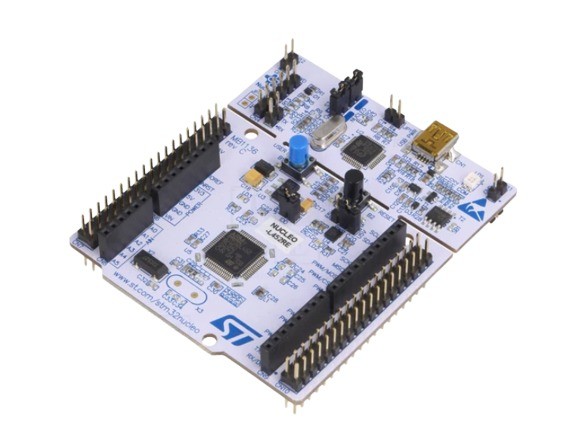

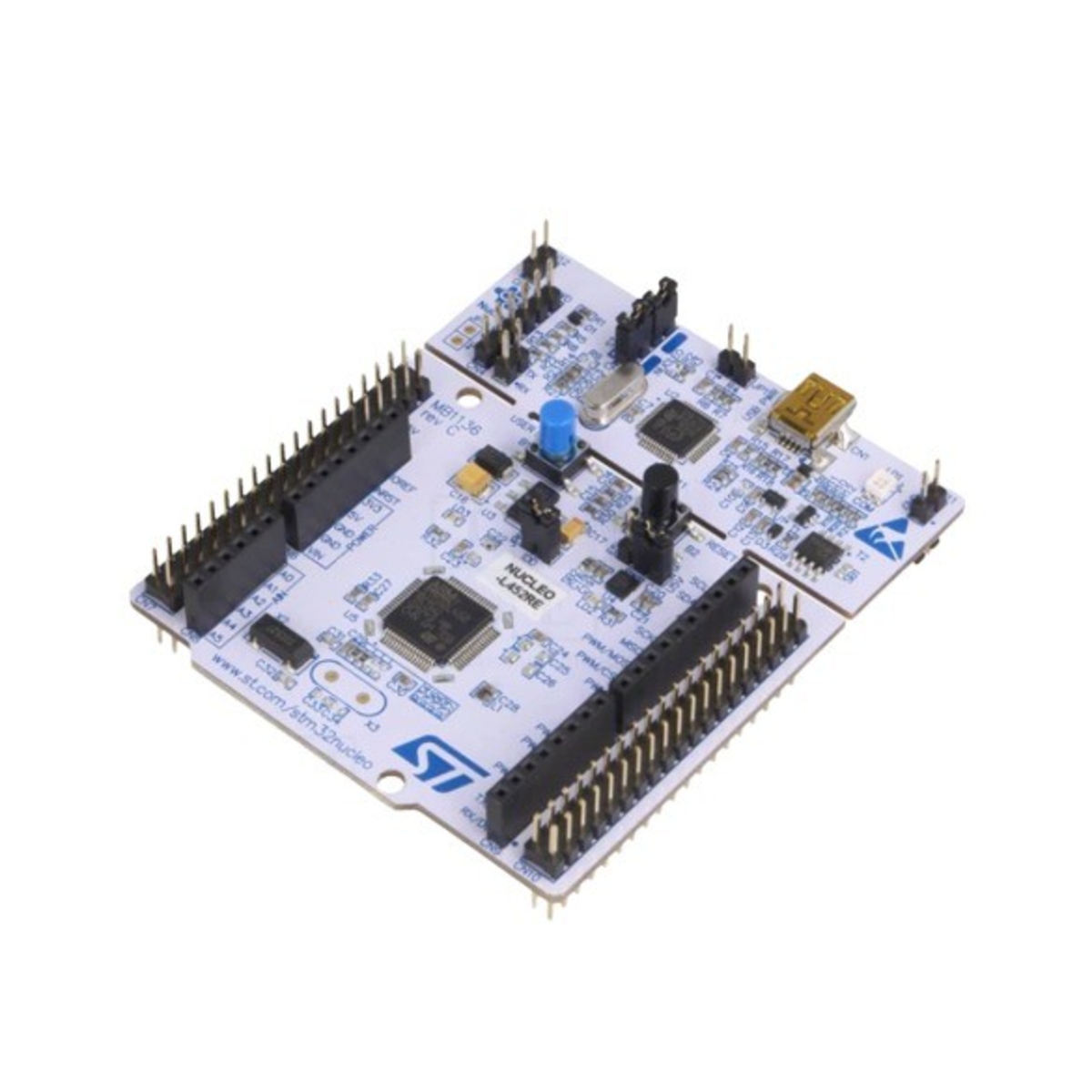

NUCLEO-L452RE Development Board STM32L452RET6U Cortex-M4 MCU

The NUCLEO-L452RE Development Board is based on the STM32L452RET6U ARM Cortex M4 microcontroller and is designed for low power and high performance embedded applications. It provides a flexible development platform for rapid prototyping industrial control and IoT solutions.

The board includes an integrated ST Link programmer debugger for direct USB programming and debugging. With Arduino Uno compatible headers and ST Morpho expansion connectors it enables easy integration with external modules sensors and shields for advanced embedded system development.

KEY FEATURES

• Based on STM32L452RET6U Cortex M4 MCU
• Integrated ST Link programmer debugger
• Arduino Uno compatible headers
• ST Morpho expansion connectors
• Low power consumption architecture
• USB connectivity for programming and communication
• Suitable for IoT and industrial applications

SPECIFICATIONS

• MCU - STM32L452RET6U
• Core - ARM Cortex M4 with FPU
• Flash Memory - 512 KB
• SRAM - 160 KB
• Operating Voltage - 3.3V
• Maximum Frequency - Up to 80 MHz
• Connectivity - USB UART SPI I2C CAN
• Debug Interface - SWD
• Form Factor - Nucleo

INTERFACES

• USB - Programming and virtual COM port
• Arduino Headers - Shield compatible interface
• ST Morpho - Extended GPIO access
• SWD - Serial wire debug interface
• UART - Serial communication
• SPI - Serial peripheral interface
• I2C - Two wire communication interface
• CAN - Controller area network interface
• GPIO - General purpose input output pins
