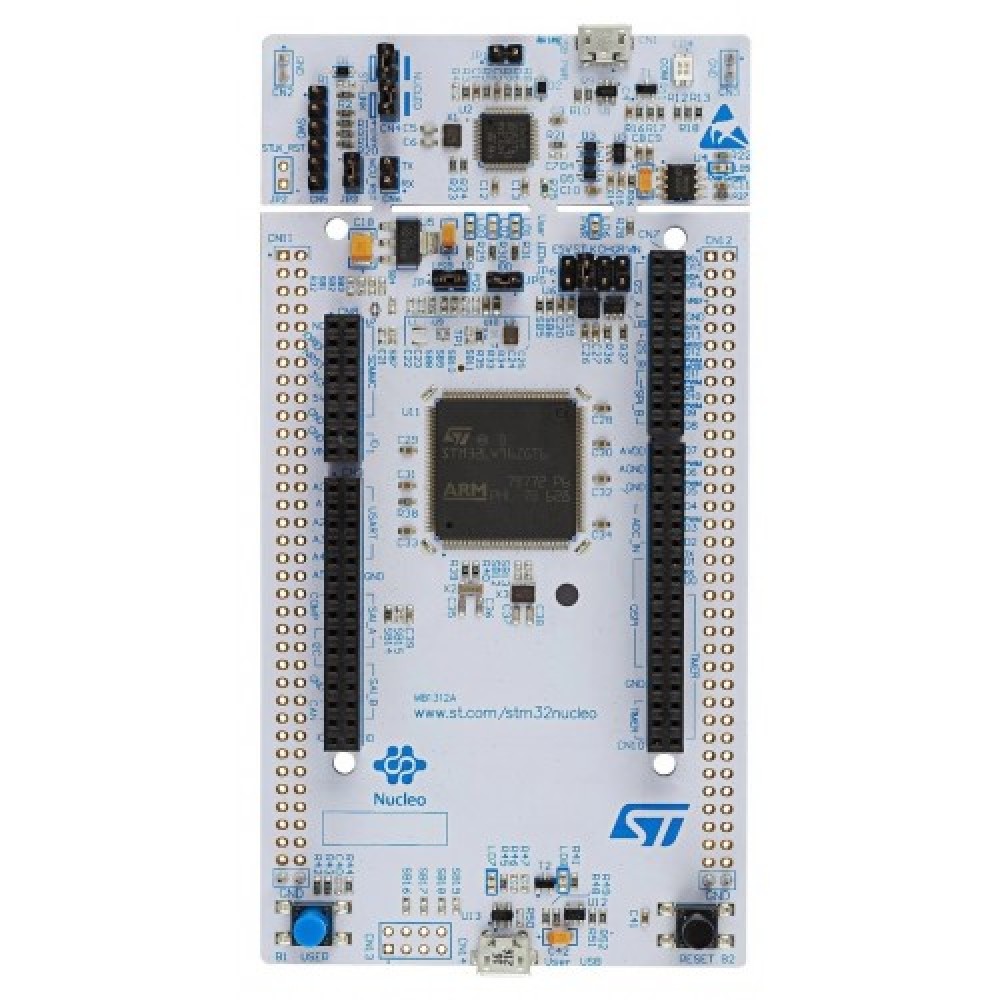

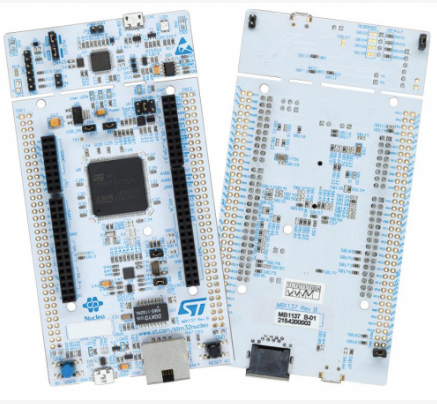

NUCLEO-L496ZG Development Board STM32 Nucleo-144 with STM32L496ZG MCU (STM32 Nucleo-L496ZG Board)

The NUCLEO-L496ZG is a powerful STM32 Nucleo-144 development board based on the STM32L496ZG ultra-low-power microcontroller. It provides a flexible and cost-effective platform for developing embedded applications, IoT devices, industrial control systems, and low-power designs. The board includes an integrated ST-LINK debugger/programmer and extensive connectivity options for rapid prototyping.

Key Features -

• Based on STM32L496ZG microcontroller

• STM32 Nucleo-144 development platform

• Integrated ST-LINK debugger and programmer

• Ultra-low-power ARM Cortex-M4 core

• Arduino, ST Morpho and Nucleo expansion support

• USB programming and debugging interface

• Multiple communication peripherals

• Suitable for IoT and embedded development

Specifications -

• Product type - Development Board

• Board model - NUCLEO-L496ZG

• Microcontroller - STM32L496ZG

• CPU core - ARM Cortex-M4 with FPU

• Operating frequency - Up to 80MHz

• Flash memory - 1MB

• SRAM - 320KB

• Package type - Nucleo-144 Board

• Debugger - Integrated ST-LINK/V2-1

• Communication interfaces - UART, SPI, I2C, CAN, USB

• GPIO support - Multiple Digital and Analog I/O

• Operating voltage - 3.3V Logic

• Connectivity - Arduino Uno V3, ST Morpho and Nucleo Headers

Applications -

• Embedded system development

• Internet of Things devices

• Industrial automation

• Smart sensing systems

• Data acquisition projects

• Low-power battery-powered devices

• Robotics and control systems

• Educational and research projects
