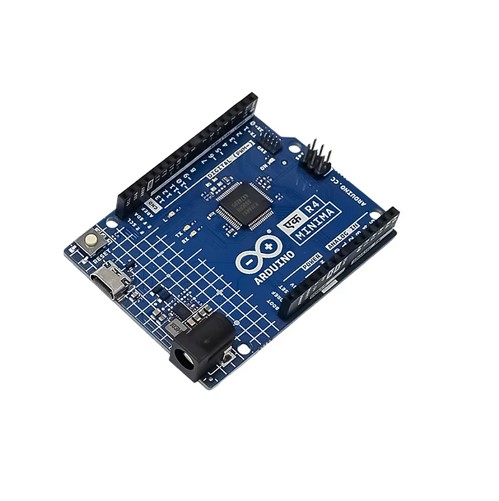

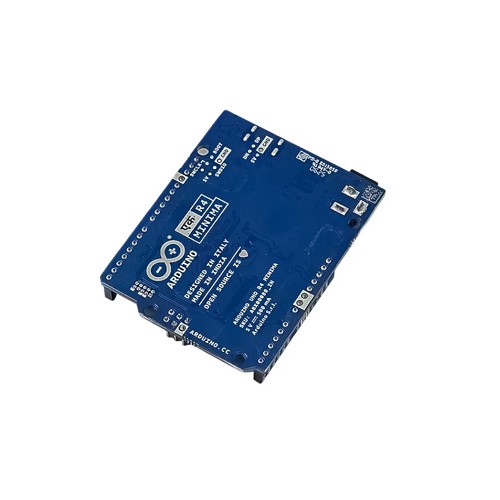

Official Arduino UNO EK (एक) R4 Minima ABX00080 Made in India 32 Bit Development Board (Arduino UNO EK R4 Minima)
The Official Arduino UNO EK R4 Minima ABX00080 is a next generation 32 bit development board manufactured in India. It is based on the powerful Renesas RA4M1 ARM Cortex-M4 microcontroller and maintains full compatibility with the classic UNO form factor and 5V operating logic. It offers improved processing power, larger memory, USB-C connectivity, DAC support, CAN Bus, and enhanced peripherals for advanced embedded and IoT applications.
Key Features -
- Official Arduino UNO EK R4 Minima Made in India edition
- Renesas RA4M1 32 bit ARM Cortex-M4 processor
- 48MHz clock speed for faster processing
- USB Type-C programming and power interface
- 5V operating logic compatible with UNO shields
- Built-in 12 bit DAC for analog output applications
- CAN Bus support for industrial communication
- HID support for keyboard and mouse emulation
- Improved memory and processing performance
Specifications -
- Board model - Arduino UNO EK R4 Minima ABX00080
- Microcontroller - Renesas RA4M1 R7FA4M1AB3CFM
- Architecture - ARM Cortex-M4 32 bit
- Clock speed - 48MHz
- Operating voltage - 5V
- Input voltage VIN - 6V to 24V
- Digital I O pins - 14
- PWM pins - 6
- Analog input pins - 6
- DAC - 1 channel 12 bit
- Flash memory - 256KB
- SRAM - 32KB
- EEPROM Data Flash - 8KB
- Communication interfaces - UART SPI I2C CAN
- USB connector - USB Type-C
- Board dimensions - approx 68.85mm × 53.34mm
Applications -
- Embedded system development
- Robotics and automation projects
- IoT and smart device applications
- Industrial communication systems
- STEM and educational learning
- Sensor interfacing and data acquisition
- DIY electronics prototyping
Pinout / Interfaces -
- Digital pins D0 to D13
- Analog pins A0 to A5
- PWM supported pins
- SPI interface
- I2C interface
- UART serial communication
- CAN Bus support
- USB-C programming port
