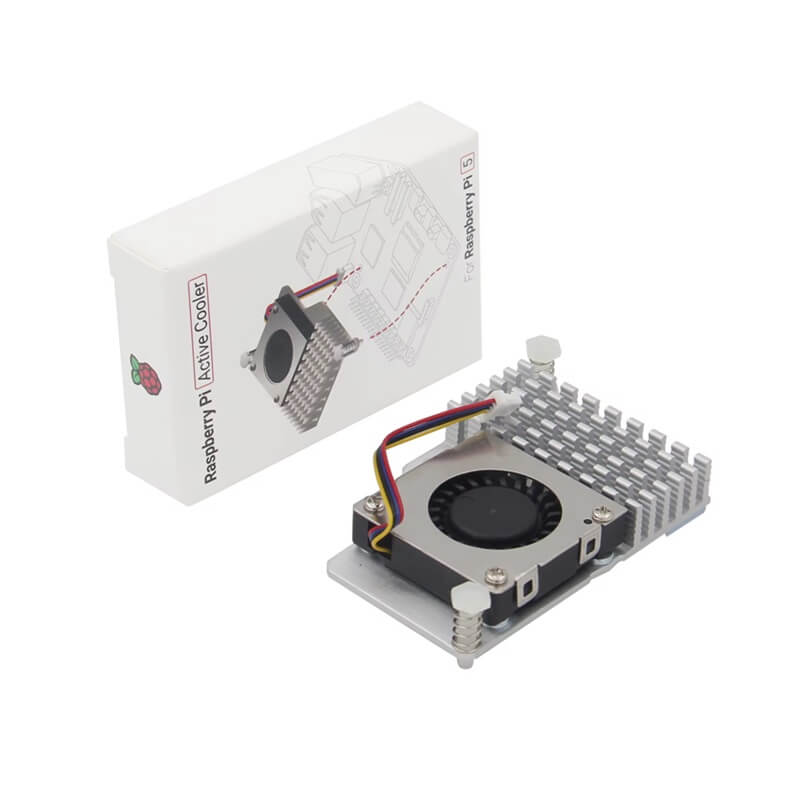

Official Raspberry Pi 5 Active Cooler

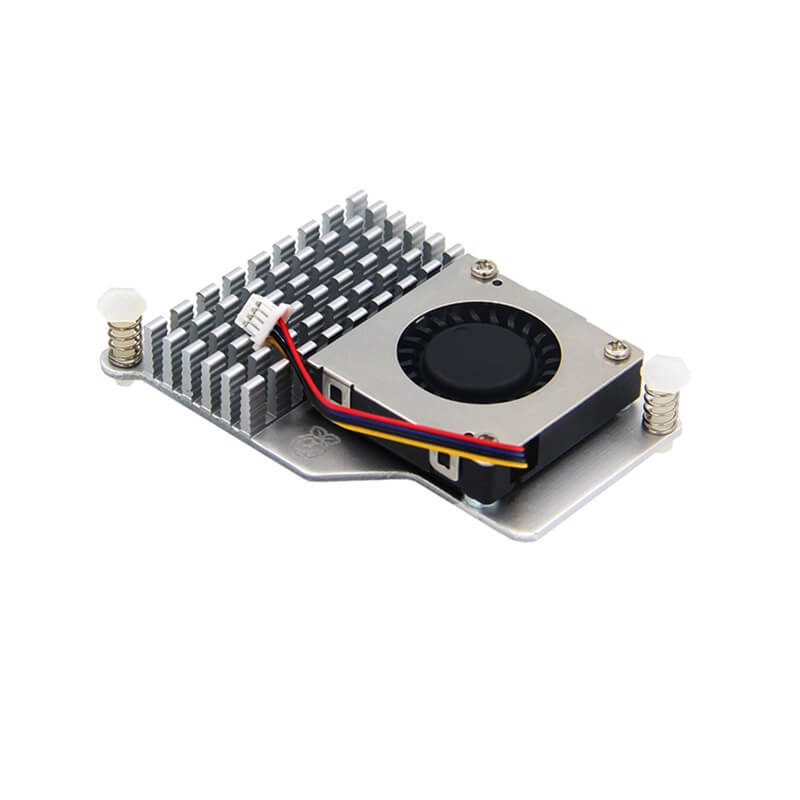

The Official Raspberry Pi 5 Active Cooler is a dedicated cooling accessory designed specifically for the Raspberry Pi 5 board. It combines a large anodised aluminium heatsink with a temperature controlled blower fan to efficiently dissipate heat generated by the processor and power management components.

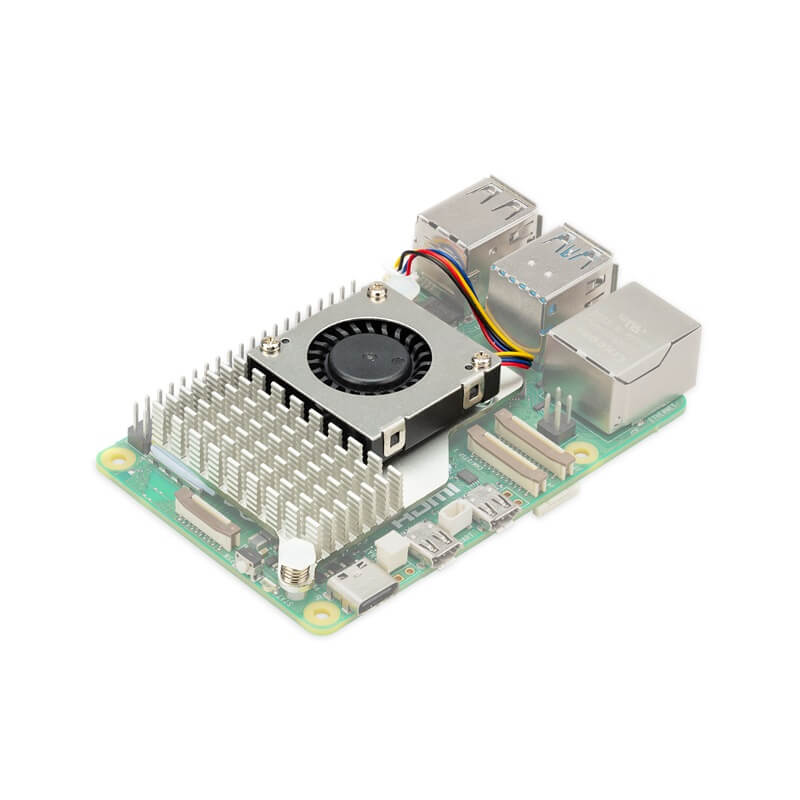

This cooler connects directly to the Raspberry Pi 5 fan header and is controlled by the firmware using pulse width modulation. The fan automatically adjusts speed according to CPU temperature, helping prevent thermal throttling during heavy workloads such as compiling software, running servers, or intensive computing tasks.

Key Features

• Official cooling solution designed for Raspberry Pi 5
• Aluminium heatsink with integrated blower fan
• Temperature controlled fan operation
• Firmware controlled cooling for stable performance
• Pre applied thermal pads for efficient heat transfer
• Spring loaded push pin mounting for easy installation
• Suitable for continuous high load applications

Specifications

• Compatibility = Raspberry Pi 5
• Input Voltage = 5V DC
• Power Source = Raspberry Pi 5 four pin fan header
• Cooling Type = Active fan plus passive heatsink
• Fan Speed = 8000 RPM plus minus 15 percent
• Maximum Airflow = 1.09 CFM
• Material = Anodised aluminium heatsink
• Cooling Control = PWM with tachometer feedback

Interfaces

• 4 Pin Fan Connector = Power supply fan control and tachometer signal connection to Raspberry Pi 5 fan header
