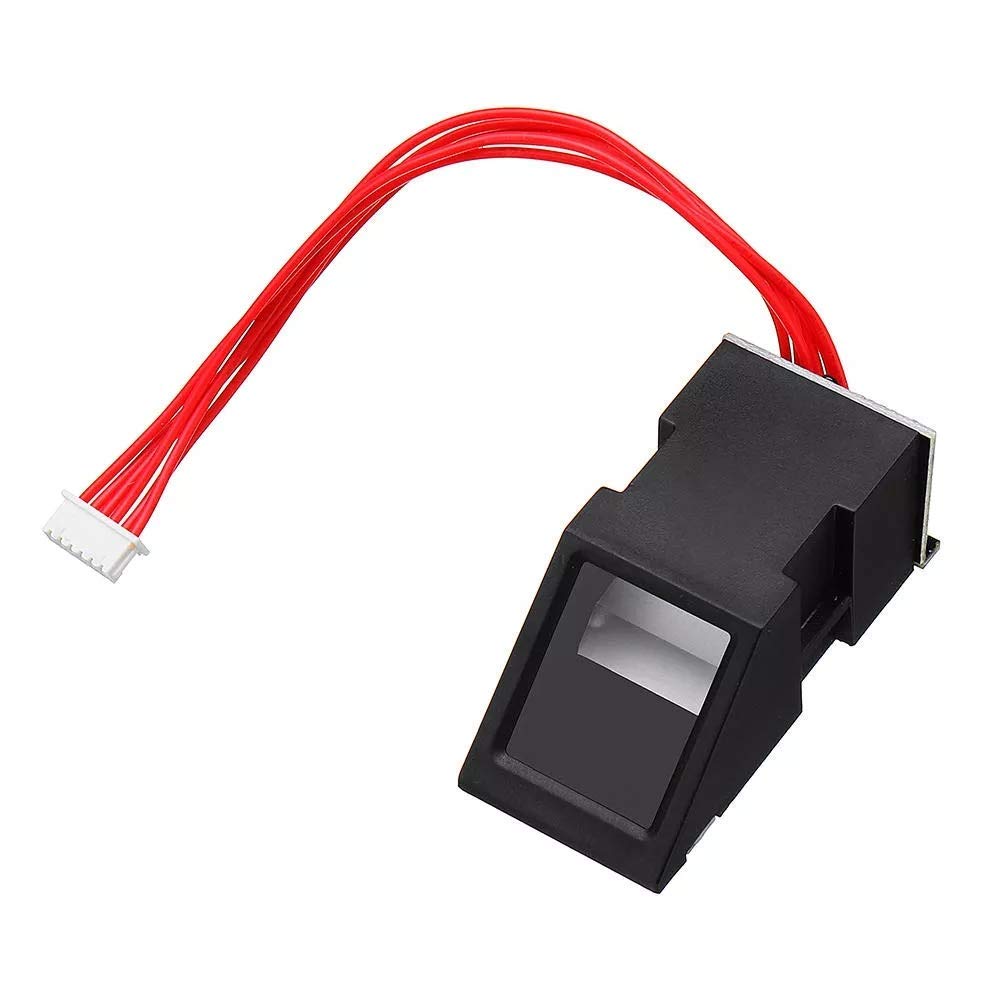

Optical Fingerprint Sensor Module FPM10A DY50 (TTL UART Biometric Reader)

The Optical Fingerprint Sensor Module FPM10A DY50 is a biometric identification module designed for fingerprint recognition and access control applications. It integrates an optical fingerprint sensor, digital signal processor, and internal memory for capturing, processing, storing, and matching fingerprint data.

The module communicates through a TTL UART serial interface, allowing easy integration with microcontrollers and embedded platforms. It is suitable for electronic door locks, attendance systems, security devices, and biometric authentication projects.

Key Features -

• Optical fingerprint recognition technology

• Built in digital signal processor for fingerprint processing

• TTL UART serial communication interface

• Fast fingerprint recognition

• Internal memory for fingerprint storage

• Suitable for biometric authentication systems

• Easy integration with microcontroller systems

Specifications -

• Model = FPM10A/DY50

• Sensor Type = Optical fingerprint sensor

• Operating Voltage = 3.6V-6V DC

• Operating Current = Less than 120mA

• Peak Current = Less than 140mA

• Recognition Time = Less than 1 second

• Storage Capacity = Up to 200 fingerprints typical

• Window Size = 14mm x 18mm

• False Accept Rate = Less than 0.001 percent

• False Reject Rate = Less than 1 percent

• Communication Interface = TTL UART serial

• Baud Rate = 9600-57600 bps

Applications -

• Electronic door locks

• Attendance systems

• Access control systems

• Security devices

• Biometric authentication

• Arduino and embedded security projects
