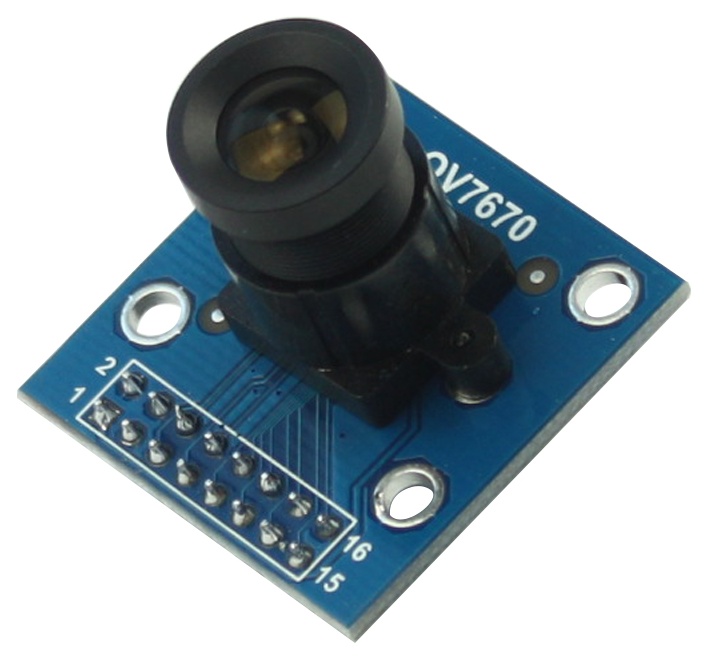

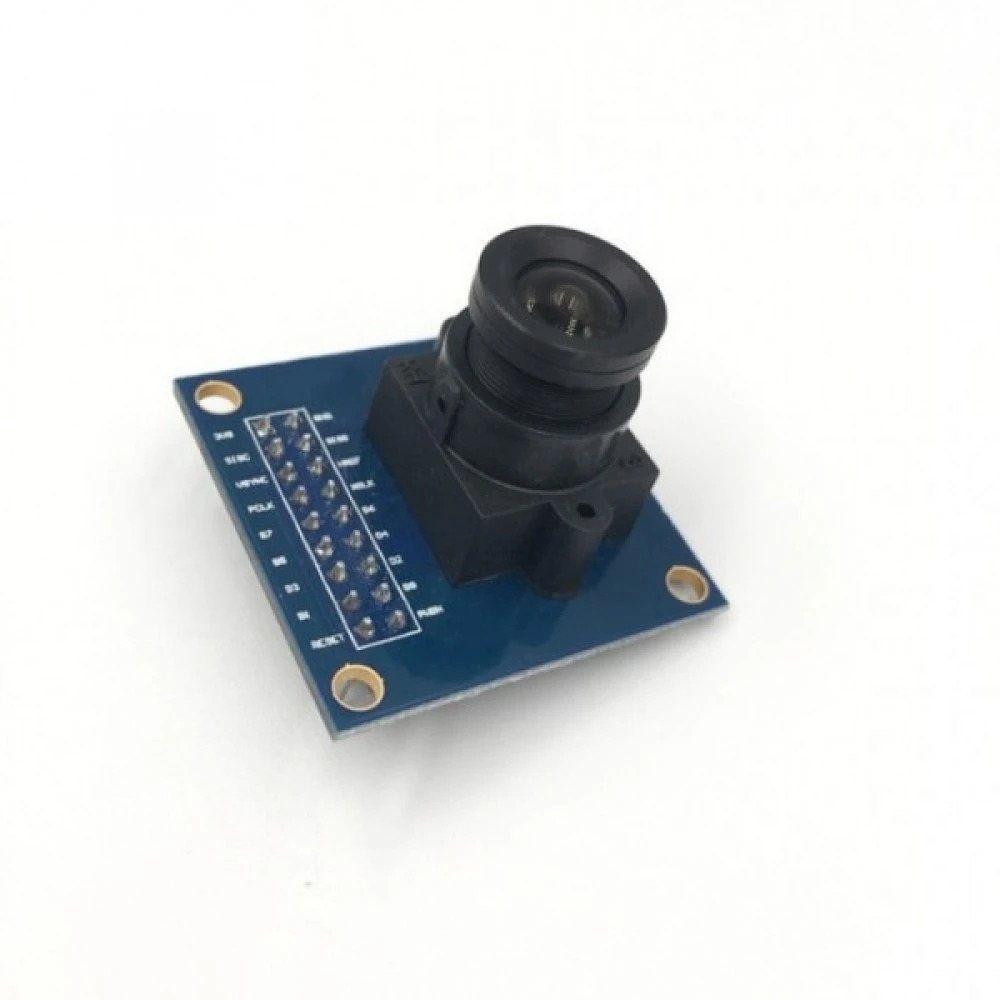

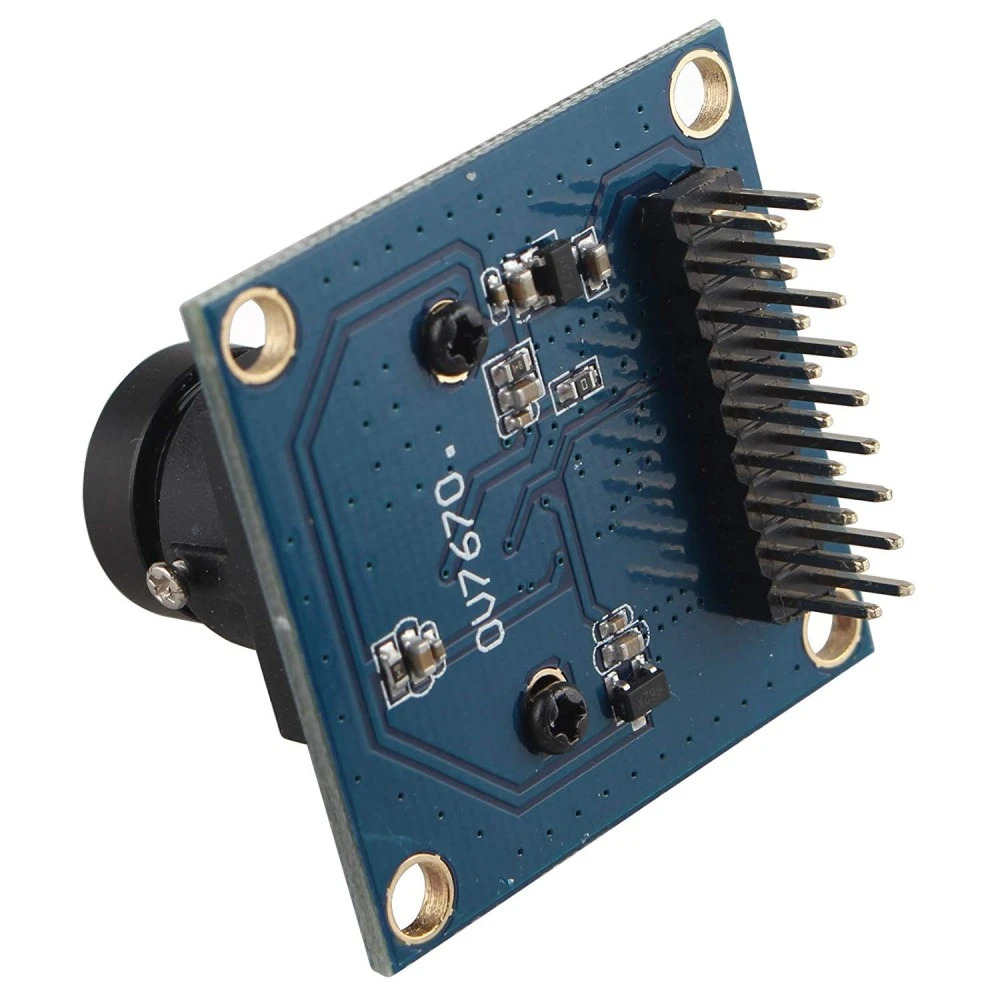

OV7670 VGA CMOS Camera Module (640 × 480 Image Sensor)

The OV7670 VGA CMOS Camera Module is a compact and low-cost image sensor designed for embedded vision, image processing, and machine vision applications. It features the OV7670 CMOS image sensor with a maximum resolution of 640 × 480 (VGA) and outputs raw image data through an 8-bit parallel interface. The module is controlled using the SCCB interface, making it suitable for Arduino, STM32, ESP32, FPGA, and other embedded platforms.

Key Features -

• 640 × 480 VGA image resolution

• OV7670 CMOS image sensor

• Supports RGB, YUV and other output formats

• 8-bit parallel data interface

• SCCB control interface

• Fixed focus lens

• Low power consumption

• Compact and lightweight design

• High-speed image capture

• Suitable for embedded vision projects

Specifications -

• Product type - CMOS Camera Module

• Sensor model - OV7670

• Sensor type - CMOS Image Sensor

• Resolution - 640 × 480 VGA

• Pixel format - RGB, YUV and Selectable Formats

• Data interface - 8-Bit Parallel Bus

• Control interface - SCCB Compatible with I2C

• Operating voltage - 3.3V DC

• Lens type - Fixed Focus

• Frame rate - Up to 30fps at VGA

Applications -

• Embedded vision systems

• Image processing

• Machine vision

• Robotics

• Object detection

• Arduino and STM32 projects

• FPGA development

• Smart camera applications
