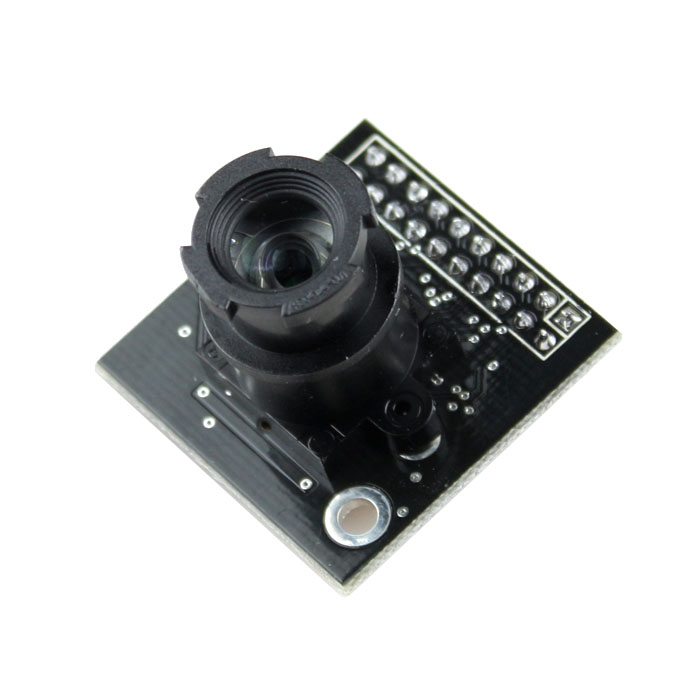

OV7670 AL422B FIFO CMOS Camera Module with DuPont Cable (Embedded Vision Camera for Arduino)

The OV7670 AL422B FIFO CMOS Camera Module is a compact image capture module designed for embedded vision, robotics, and smart car applications. It combines the OV7670 CMOS image sensor with an AL422B FIFO frame buffer, allowing microcontrollers to capture image data more efficiently without requiring high-speed continuous data processing. The onboard FIFO memory stores an entire image frame, simplifying interfacing with Arduino, STM32, ESP32, and other development platforms.

Supplied with DuPont jumper cables for easy connection, this camera module is ideal for image processing experiments, line-following robots, machine vision, surveillance prototypes, and educational embedded vision projects.

Key Features -

• OV7670 CMOS image sensor

• AL422B FIFO frame buffer memory

• Real-time image capture capability

• Onboard FIFO for simplified microcontroller interfacing

• Digital parallel image output

• Compact PCB module design

• Includes DuPont jumper cables for easy connection

• Low power operation

• Compatible with Arduino, STM32, ESP32, and other development boards

• Ideal for robotics, smart cars, and embedded vision applications

Specifications -

• Product type - CMOS Camera Module with FIFO Buffer

• Sensor model - OV7670

• Image sensor type - CMOS

• Frame buffer - AL422B FIFO Memory

• Output format - Digital Parallel Output

• Communication interface - Parallel Camera Interface

• Operating voltage - 3.3V DC

• Image resolution - VGA (640 × 480 Pixels)

• Lens type - Fixed Focus Lens

• Package / Mounting type - PCB Camera Module

Applications -

• Smart car vision systems

• Line-following and autonomous robots

• Embedded vision projects

• Image processing experiments

• Machine vision development

• Arduino and STM32 camera projects

• ESP32 imaging applications

• Educational electronics and robotics

• Object detection research

• DIY surveillance and monitoring systems
