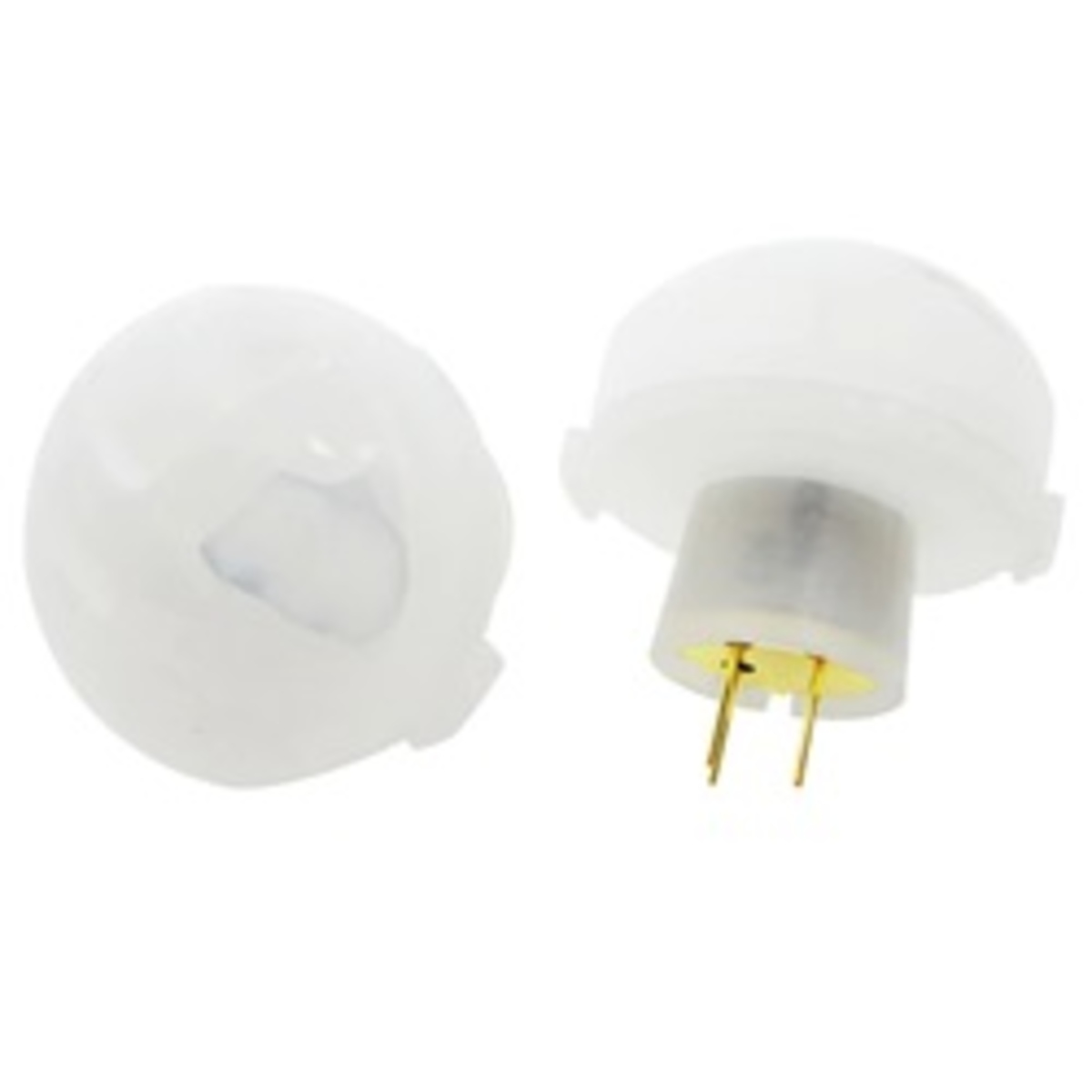

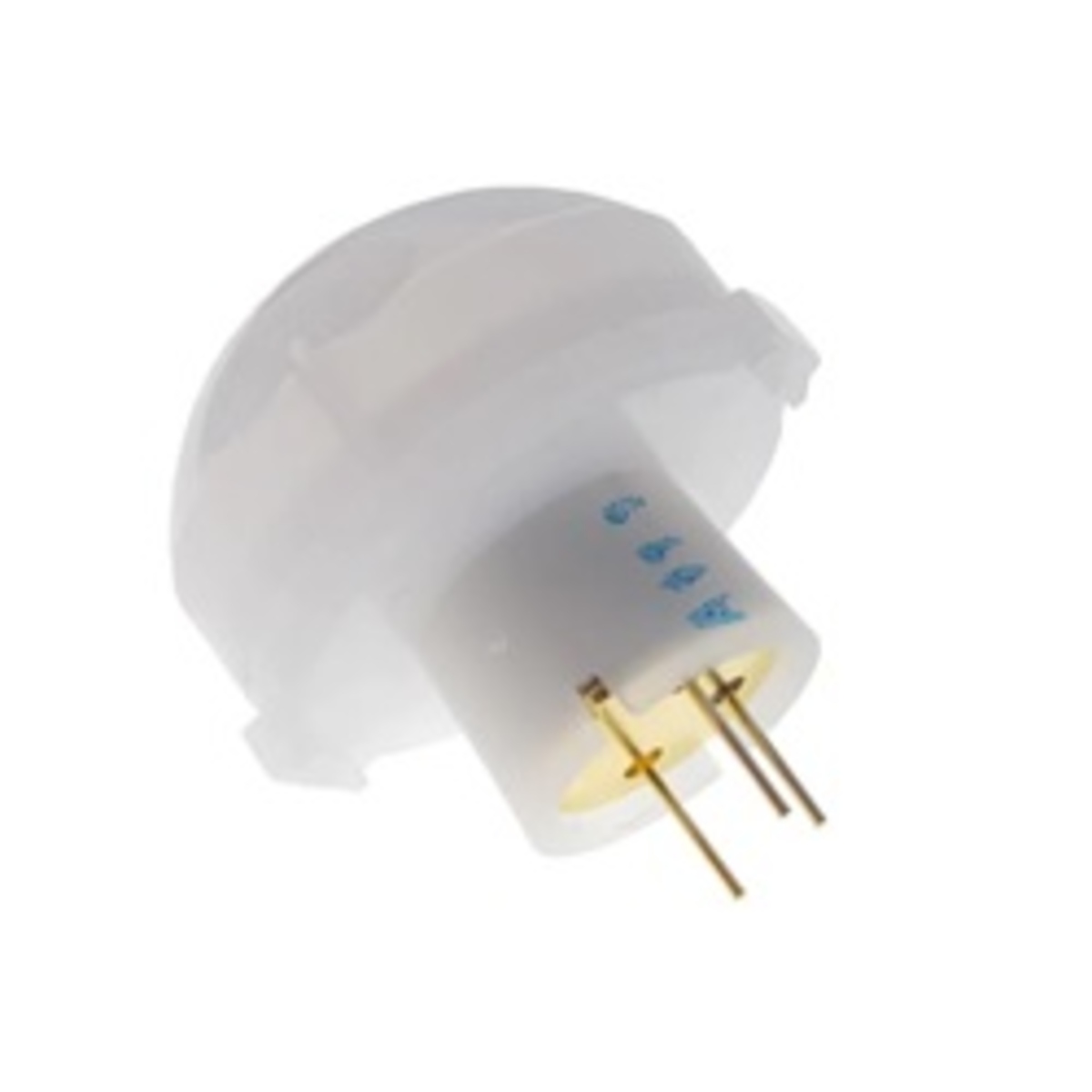

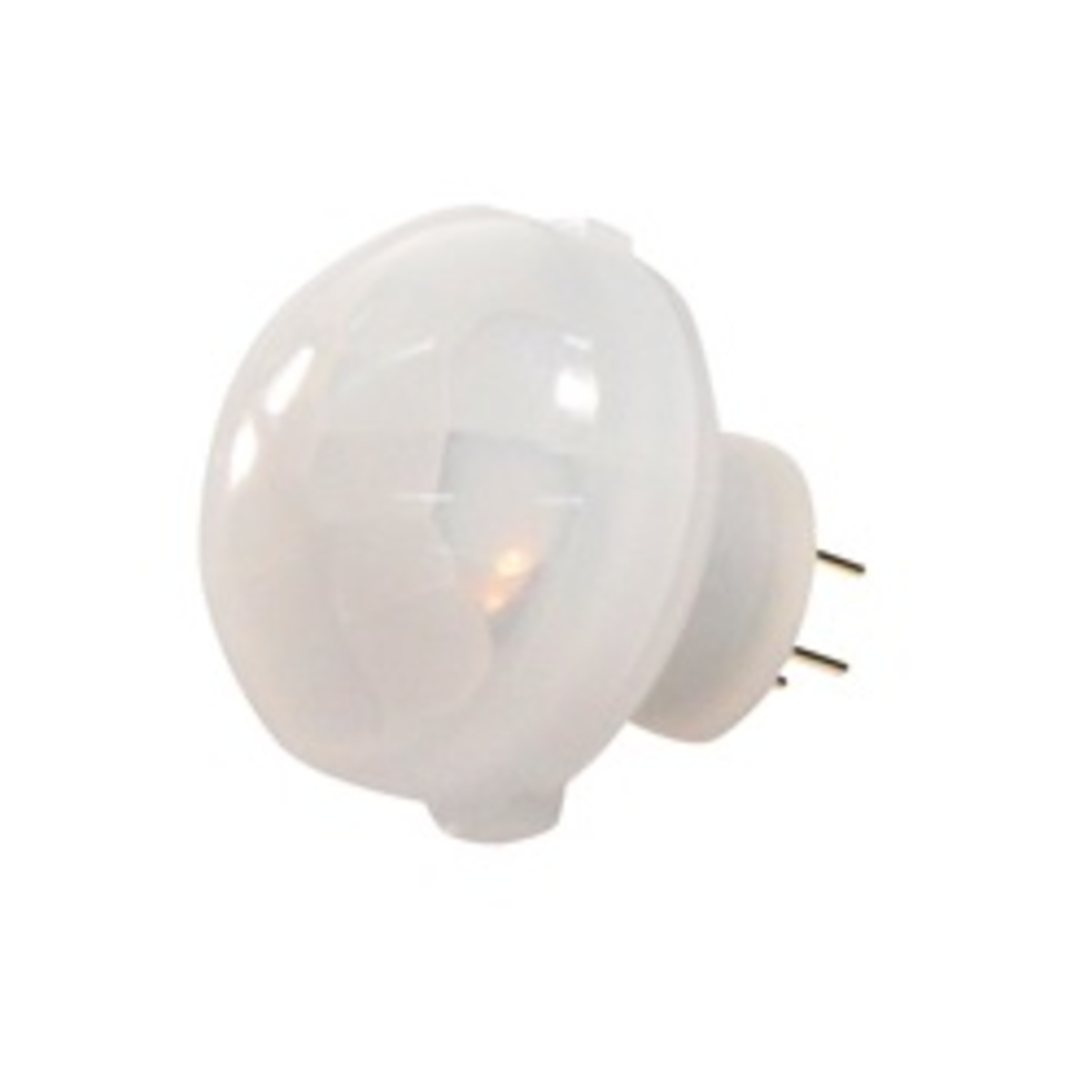

Panasonic EKMC1603111 PaPIR PIR Motion Sensor Digital Output Sensor Module (EKMC1603111 PIR Sensor)

The Panasonic EKMC1603111 PIR Sensor is a high performance passive infrared motion sensor designed for motion detection, automation systems, security devices, lighting control, and embedded electronic applications. It features long distance detection capability, low power consumption, and reliable digital output operation.

Key Features -

• Passive infrared motion detection sensor

• Long distance motion sensing capability

• Digital output signal

• Low standby current consumption

• Compact TO5 package design

• High noise resistance performance

Specifications -

• Product type - PIR Motion Sensor

• Model - EKMC1603111

• Brand - Panasonic

• Sensor type - Passive Infrared PIR Sensor

• Output type - Digital output

• Detection distance - Up to 12 meters

• Operating voltage - 3V to 6V DC

• Current consumption - Approx 170 microampere

• Package type - TO5 package

• Lens colour - White

• Detection angle - Approx 102 degree horizontal and 92 degree vertical

• Mounting type - Through hole mounting

• Operating temperature - Minus 20 degree C to plus 60 degree C

• Additional features - High signal to noise ratio, low false triggering, compact size

Applications -

• Motion activated lighting systems

• Security and intrusion detection

• Smart home automation

• Industrial sensing systems

• Embedded electronic projects
