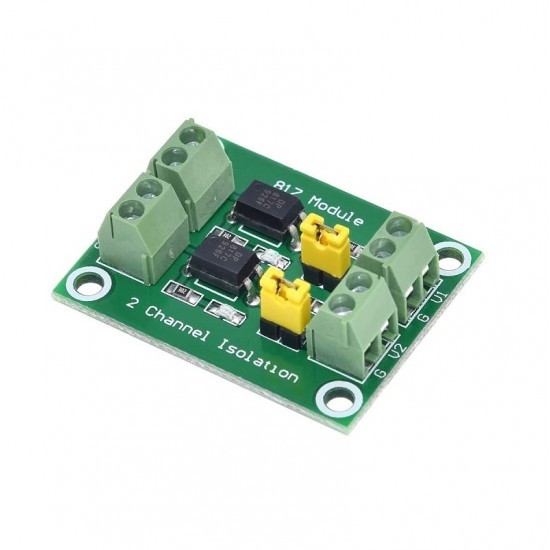

PC817 2-Channel Optocoupler Isolation Module

The PC817 2-Channel Optocoupler Isolation Module is a compact PCB designed to provide electrical isolation between input control signals and output circuits. It features two PC817 optocouplers for dual-channel isolation, enabling safe interfacing between high-voltage or noisy circuits and sensitive microcontrollers.

This module is suitable for microcontroller interfacing, relay triggering, industrial automation, and protection of low-voltage electronics from high-voltage spikes. The dual-channel design allows independent isolation for two separate signals.

KEY FEATURES

• Dual-channel optocoupler isolation
• Uses PC817 optocoupler ICs
• Compact PCB module design
• High voltage signal isolation
• Protects microcontrollers and sensitive circuits
• Easy integration with embedded electronics
• Suitable for relay control and industrial automation

SPECIFICATIONS

• Number of Channels = 2
• Input Voltage = 3-24V DC typical
• Output Voltage = Corresponding isolated signal
• Isolation Voltage = 5000V DC typical
• Input Current = 5-20 mA
• Response Time = <10ms
• Module Size = Approx 35 x 20 mm

INTERFACES

• VCC = Power supply input for module
• GND = Ground
• IN1 / IN2 = Input signal for channel 1 and 2
• OUT1 / OUT2 = Isolated output for channel 1 and 2
