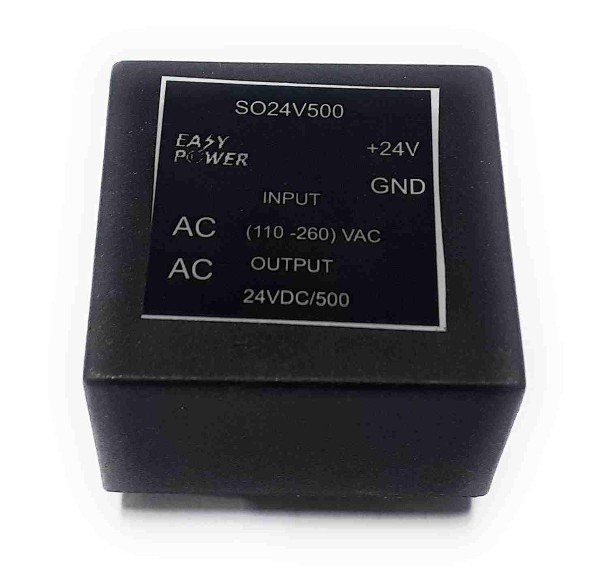

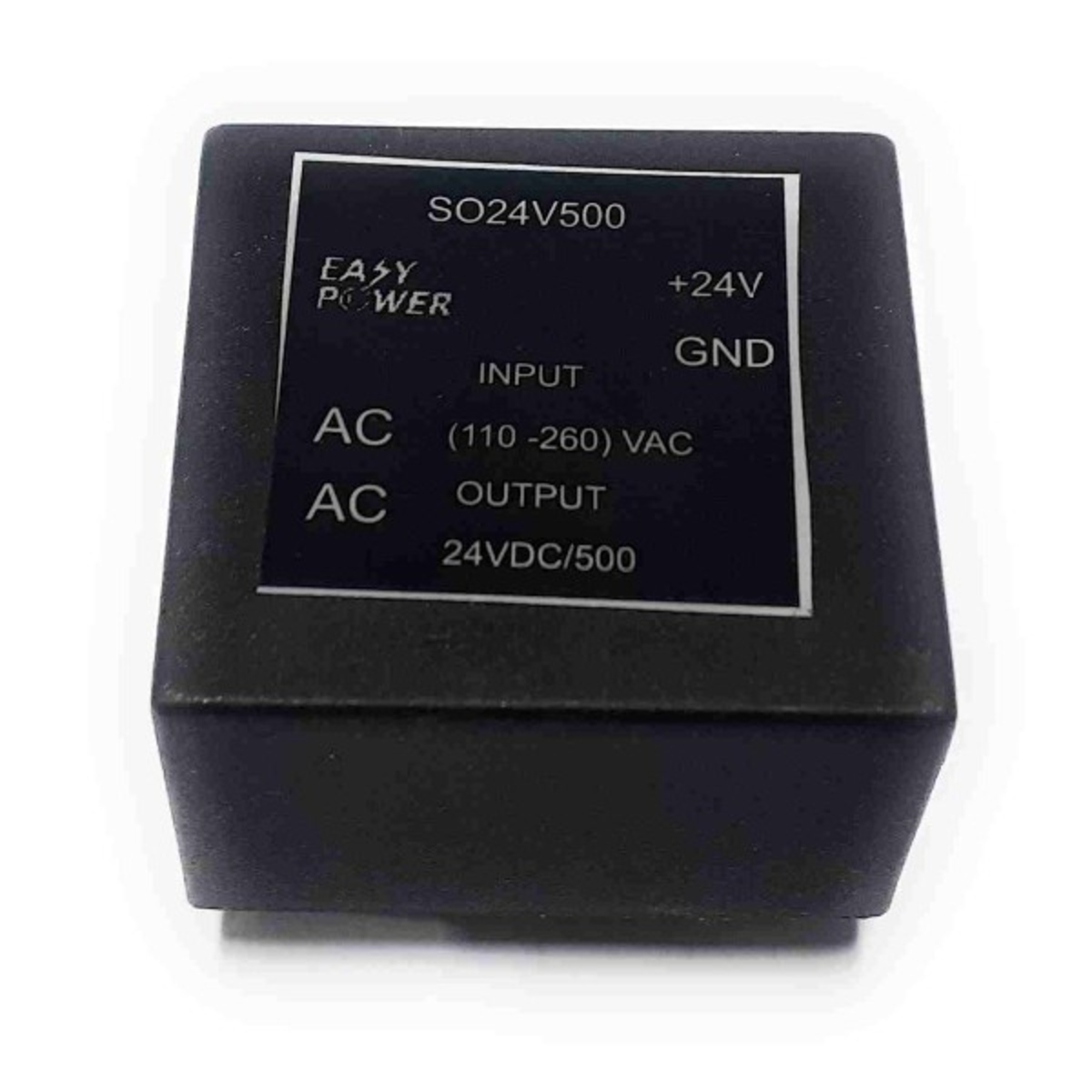

PCB Mountable Micro SMPS-SO24V500 -24V 500mA (Isolated Power Supply Module)

The PCB Mountable Micro SMPS-SO24V500 is a compact isolated switching power supply module designed to provide a regulated -24V DC output from a wide AC input range. It delivers up to 500mA output current, making it suitable for direct PCB mounting in embedded, industrial, and instrumentation applications.

The module is ideal for generating negative voltage rails in analog circuits, communication equipment, control systems, and other electronic applications requiring a stable -24V DC supply. Its compact SMPS design provides efficient AC-DC conversion with stable output performance and electrical isolation.

Key Features -

• Regulated -24V DC output

• Maximum output current up to 500mA

• Wide 85-265V AC input range

• Compact PCB mountable design

• Isolated switching power supply

• High-efficiency AC-DC conversion

• Stable regulated output

• Suitable for negative voltage rail generation

• Reliable operation in embedded and industrial systems

• Designed for direct PCB integration

Specifications -

• Product Type: PCB Mountable AC-DC SMPS Module

• Model: SO24V500

• Input Voltage: 85-265V AC

• Output Voltage: -24V DC

• Output Current: 500mA max

• Output Power: 12W

• Isolation Type: Galvanic Isolation

• Conversion Type: Switching Regulator SMPS

• Output Type: Regulated DC

• Mounting Type: PCB Through Hole

• Application: Negative Voltage Power Supply

Applications -

• Analog electronic circuits

• Negative voltage rail generation

• Communication equipment

• Industrial control systems

• Instrumentation equipment

• Operational amplifier circuits

• Embedded electronic systems

• Signal processing circuits

• Control and automation equipment

• DIY power supply projects
