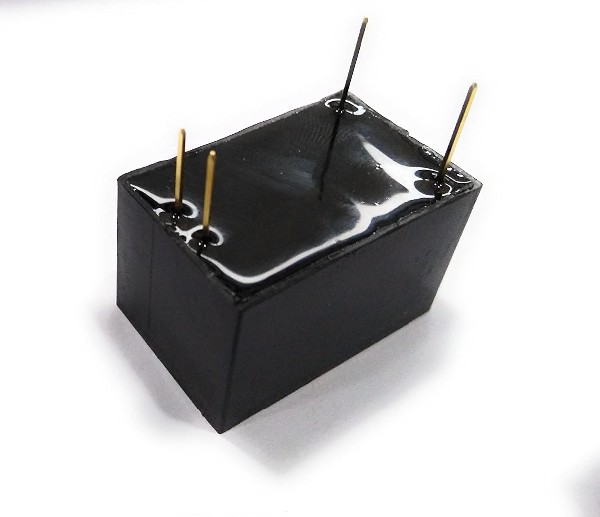

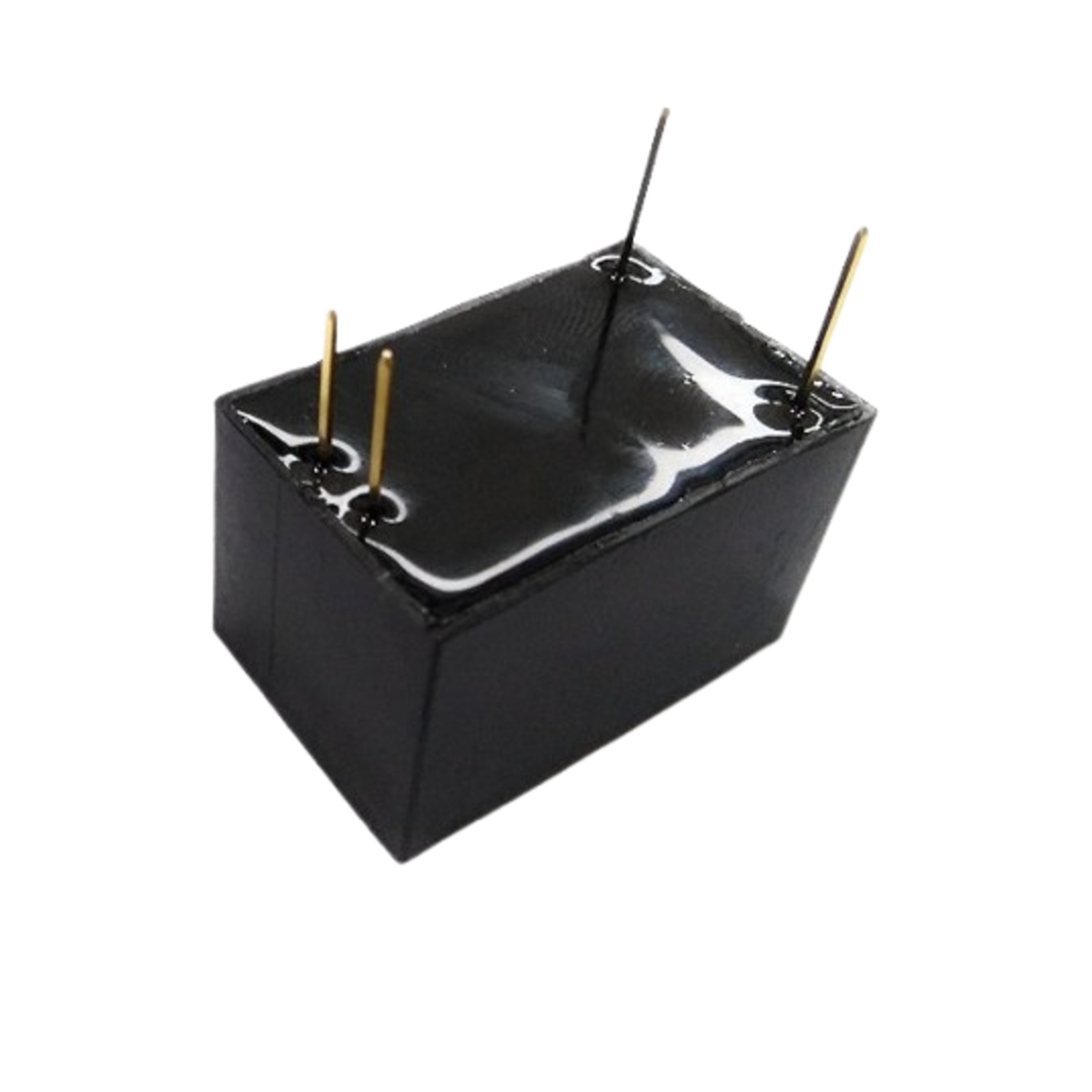

PCB Mountable Micro SMPS-SO5V1000 -5V 1000mA (Isolated Power Supply Module)
The PCB Mountable Micro SMPS-SO5V1000 is a compact isolated switching power supply module designed to provide a stable -5V DC output from a wide AC input range. It delivers up to 1000mA output current and is designed for direct PCB mounting in embedded, industrial, and electronic systems.
The module is suitable for generating negative voltage rails in analog circuits, communication equipment, signal processing boards, and instrumentation systems. Its switching power supply design provides efficient AC to DC conversion with stable output performance and minimal external components.
KEY FEATURES -
- Regulated -5V DC output
- Output current up to 1000mA
- Wide AC input voltage range
- Isolated switching power supply design
- Compact PCB mountable construction
- Efficient AC to DC power conversion
- Stable regulated output
- Suitable for negative voltage rail generation
- Ideal for embedded and industrial electronics
SPECIFICATIONS -
- Model = SO5V1000
- Input Voltage = 85-265V AC
- Output Voltage = -5V DC
- Output Current = 1000mA max
- Output Power = 5W
- Isolation Type = Galvanic isolation
- Conversion Type = Switching regulator SMPS
- Mounting Type = PCB through hole
- Output Type = Regulated DC
APPLICATIONS -
- Analog electronic circuits
- Negative voltage rail generation
- Signal processing boards
- Communication equipment
- Instrumentation systems
- Operational amplifier circuits
- Embedded electronic systems
- Industrial control circuits
- PCB power supply applications
