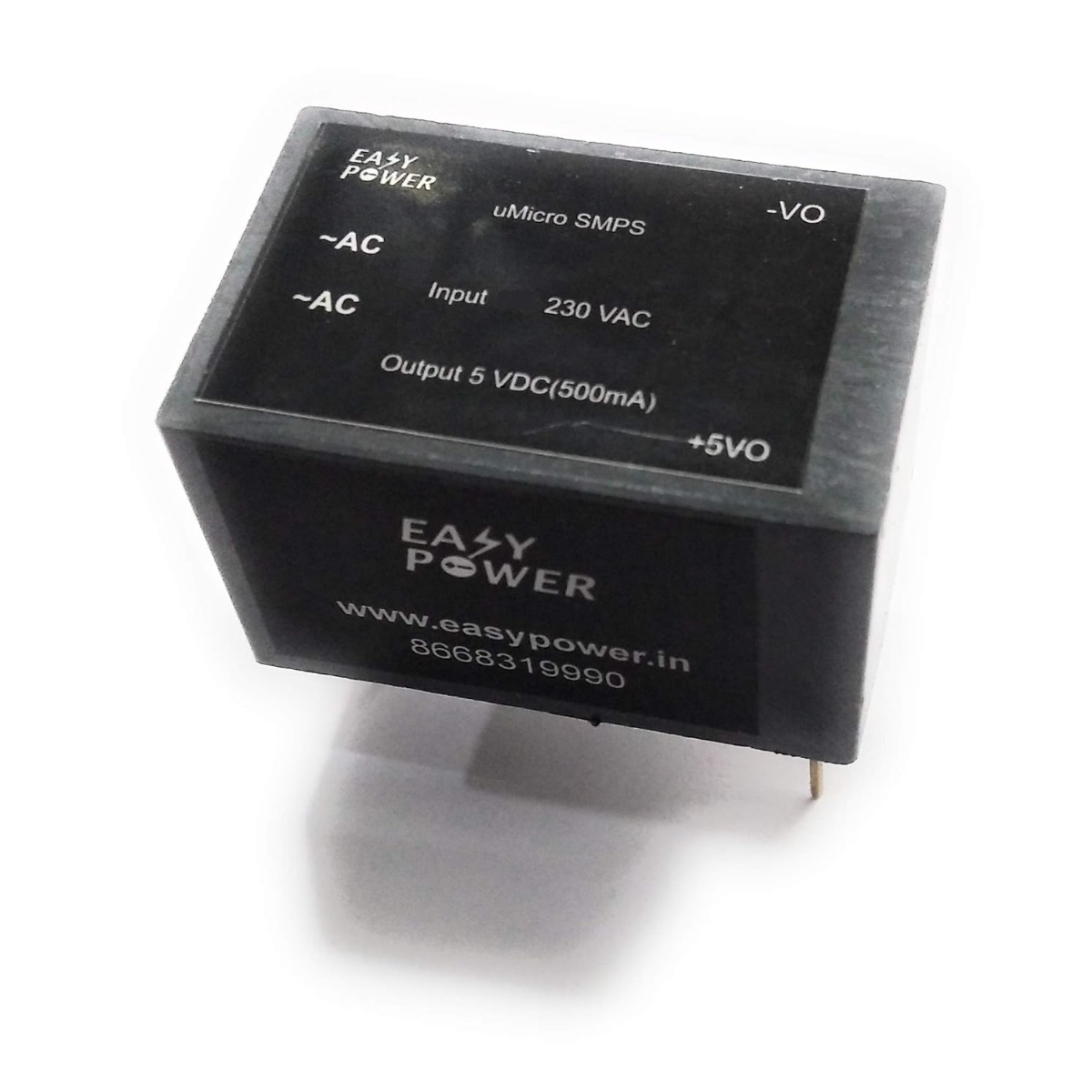

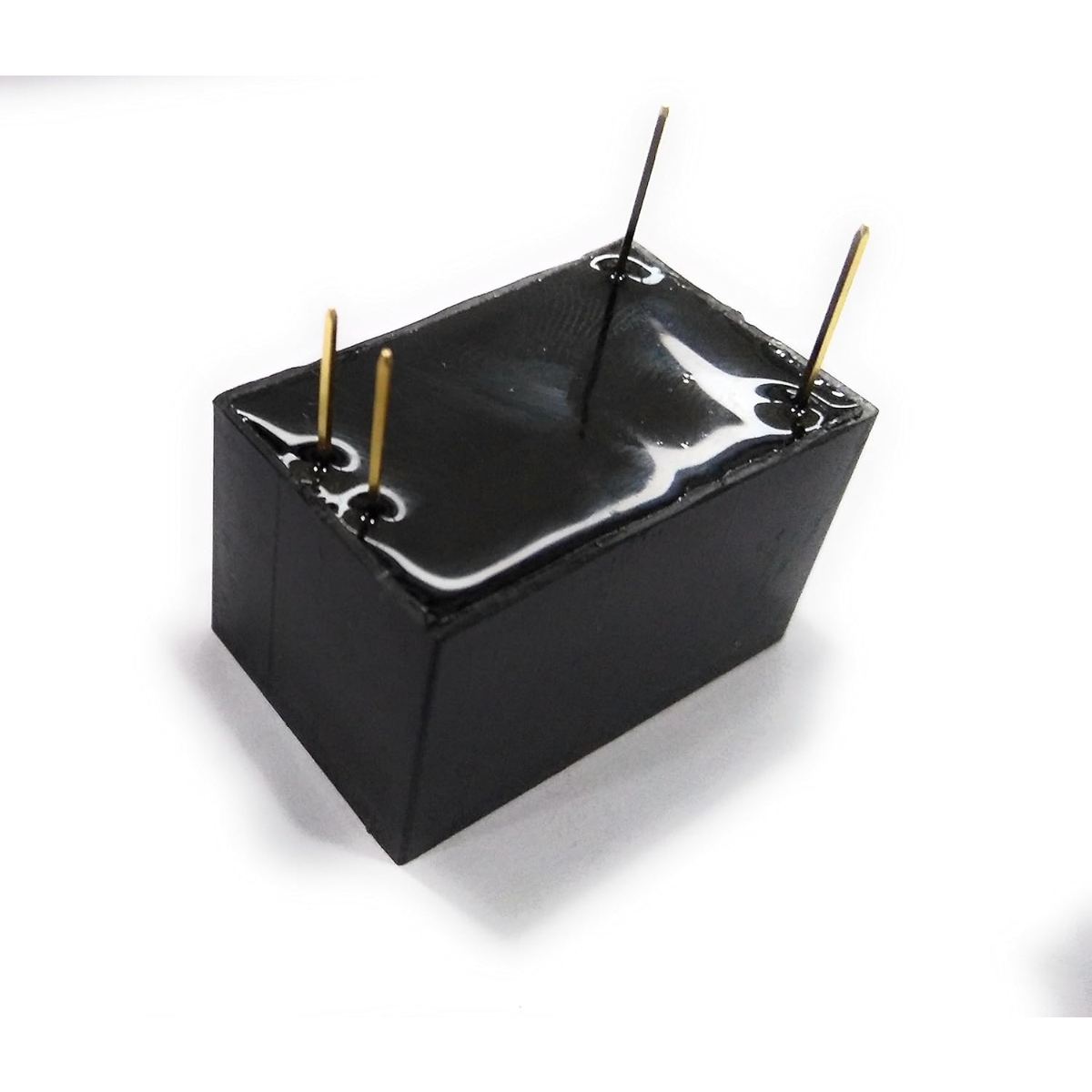

SO5V500 PCB Mountable Micro SMPS Module 85-265VAC to -5V 500mA Isolated Power Supply (2.5W AC-DC Converter)

The SO5V500 PCB Mountable Micro SMPS is a compact isolated AC to DC power supply module designed to provide a regulated -5V DC output with up to 500mA output current. Featuring a fully enclosed switching power supply design and direct PCB mounting capability, this module is ideal for negative voltage generation in analog circuits, instrumentation systems, industrial controls, and embedded electronic applications.

Key Features -

• Regulated -5V DC output

• Output current up to 500mA

• Compact PCB mountable design

• Isolated switching power supply

• Wide 85V to 265V AC input range

• High efficiency power conversion

• Stable low ripple output

• Fully enclosed module construction

• Reliable long-term operation

• Minimal external components required

Specifications -

• Product type - AC to DC SMPS Power Module

• Model - SO5V500

• Input voltage - 85V to 265V AC

• Output voltage - -5V DC

• Output current - 500mA Maximum

• Output power - 2.5W

• Isolation type - Galvanic Isolation

• Conversion type - Switching Mode Power Supply

• Mounting type - PCB Through Hole

• Output regulation - Regulated Output

Applications -

• Analog signal conditioning circuits

• Instrumentation systems

• Industrial control equipment

• Embedded electronics

• Operational amplifier power supplies

• Data acquisition systems

• Communication equipment

• Negative voltage generation applications
