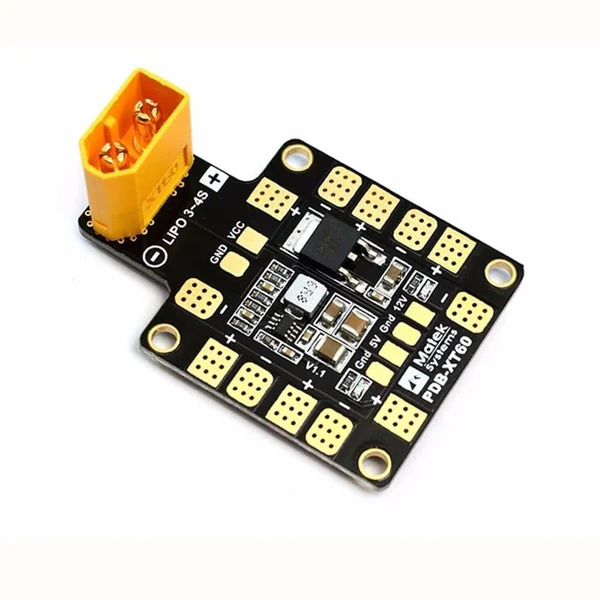

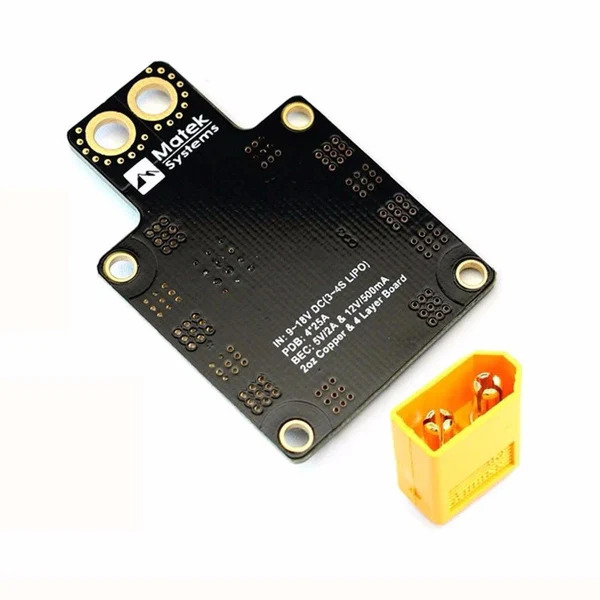

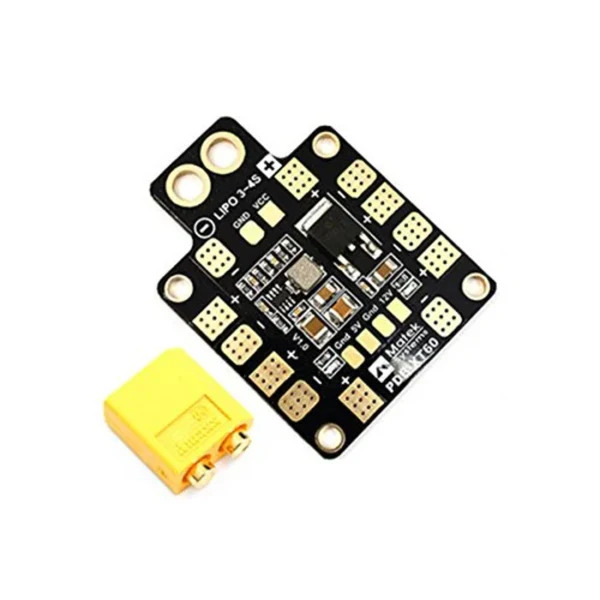

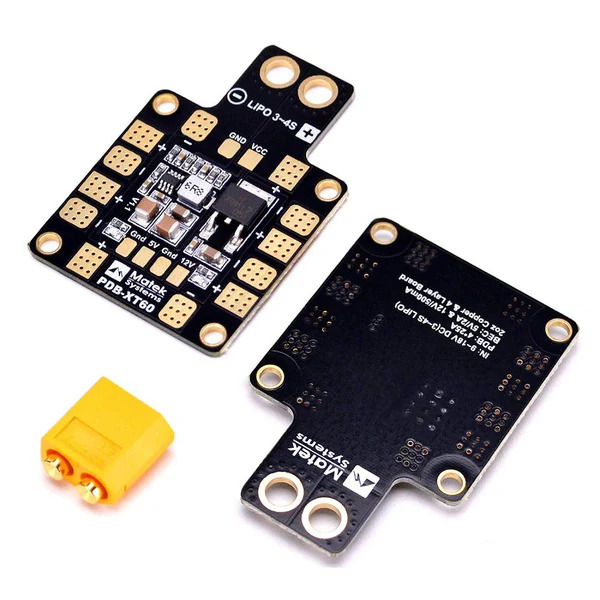

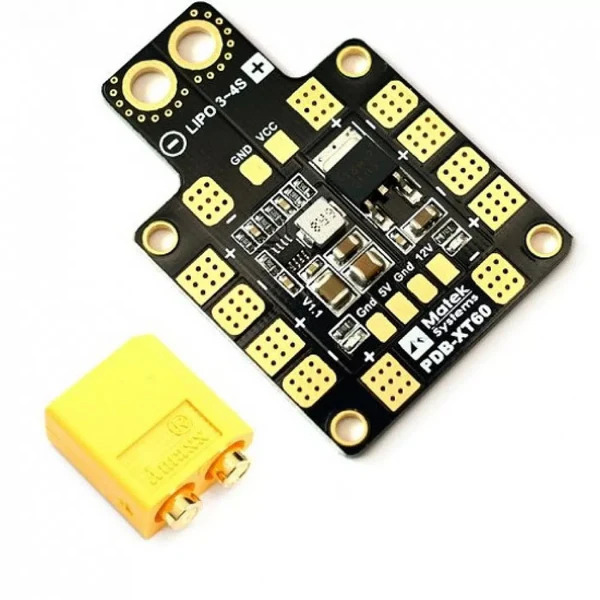

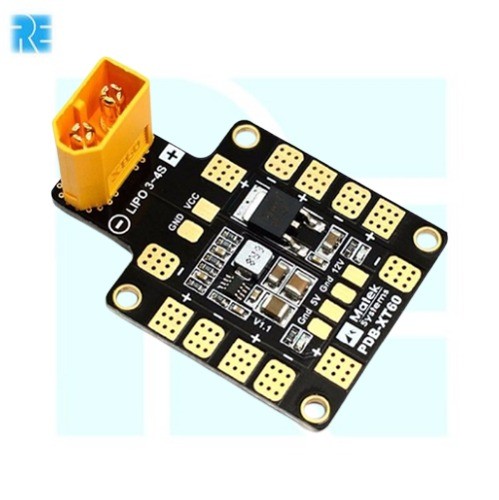

PDB-XT60 with BEC 5V and 12V

The PDB-XT60 Power Distribution Board is designed to distribute battery power to multiple electronic components in drones and robotics systems. It provides a central power hub that simplifies wiring and ensures stable power delivery to ESCs, flight controllers and other onboard electronics.

The board includes an XT60 battery connector and integrated BEC regulators that provide stable 5V and 12V outputs for powering cameras, flight controllers and other devices. This makes it suitable for drone builds and embedded systems where multiple voltage levels are required from a single battery source.

Key Features

• Power distribution board for drone and robotics systems
• Integrated XT60 battery connector
• Built in BEC outputs for 5V and 12V
• Stable regulated output for electronic modules
• Simplifies power wiring for multiple devices
• Compact PCB design for drone frames
• Suitable for flight controller camera and transmitter power

Specifications

• Board Type = Power distribution board PDB
• Battery Connector = XT60
• BEC Output 1 = 5V
• BEC Output 2 = 12V
• Application = Drone power distribution and embedded systems
• PCB Type = High current power distribution PCB

Interfaces

• XT60 Connector = Battery power input
• ESC Power Pads = Power output for ESC modules
• 5V Output Pads = Regulated 5V output
• 12V Output Pads = Regulated 12V output
• GND Pads = Ground connection for devices
