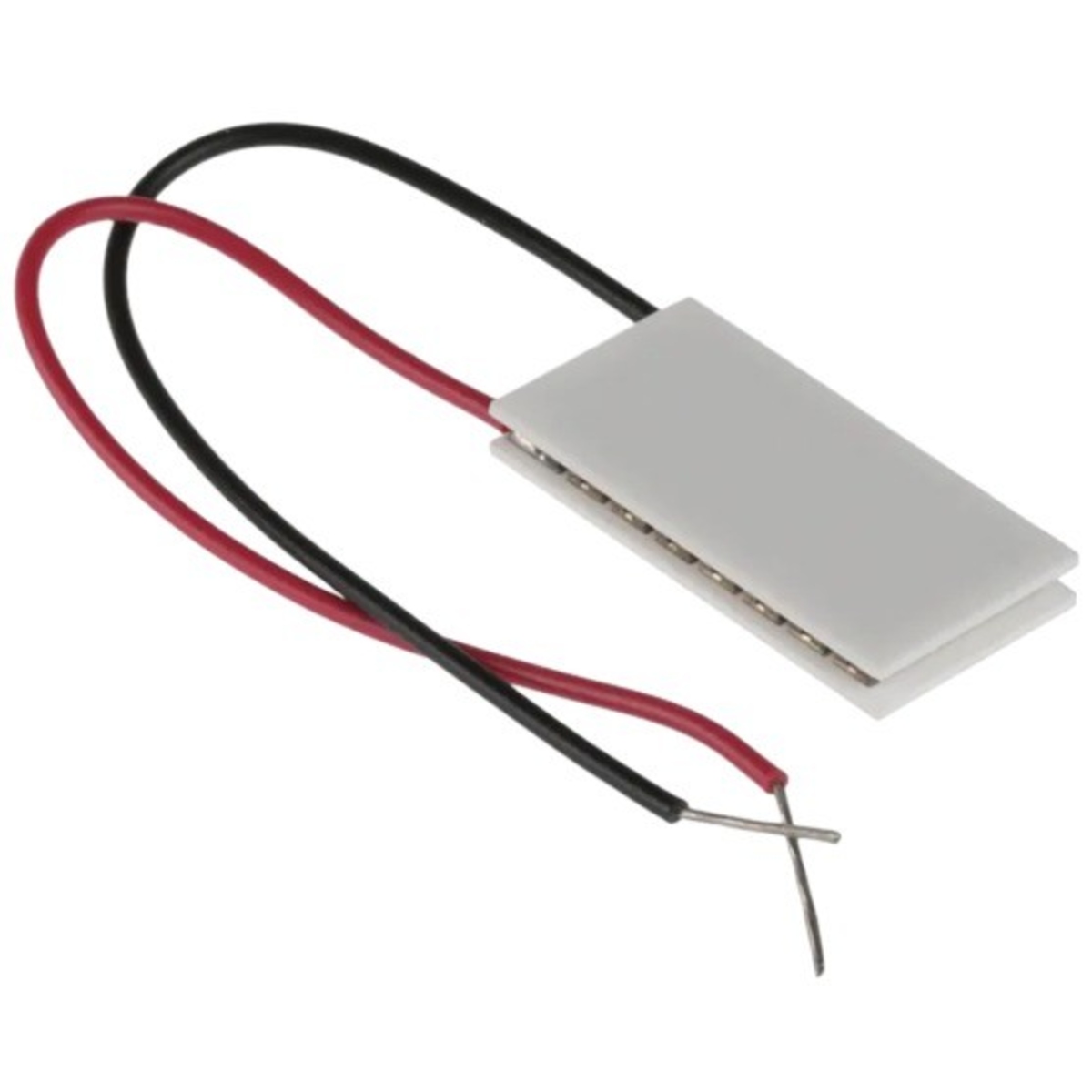

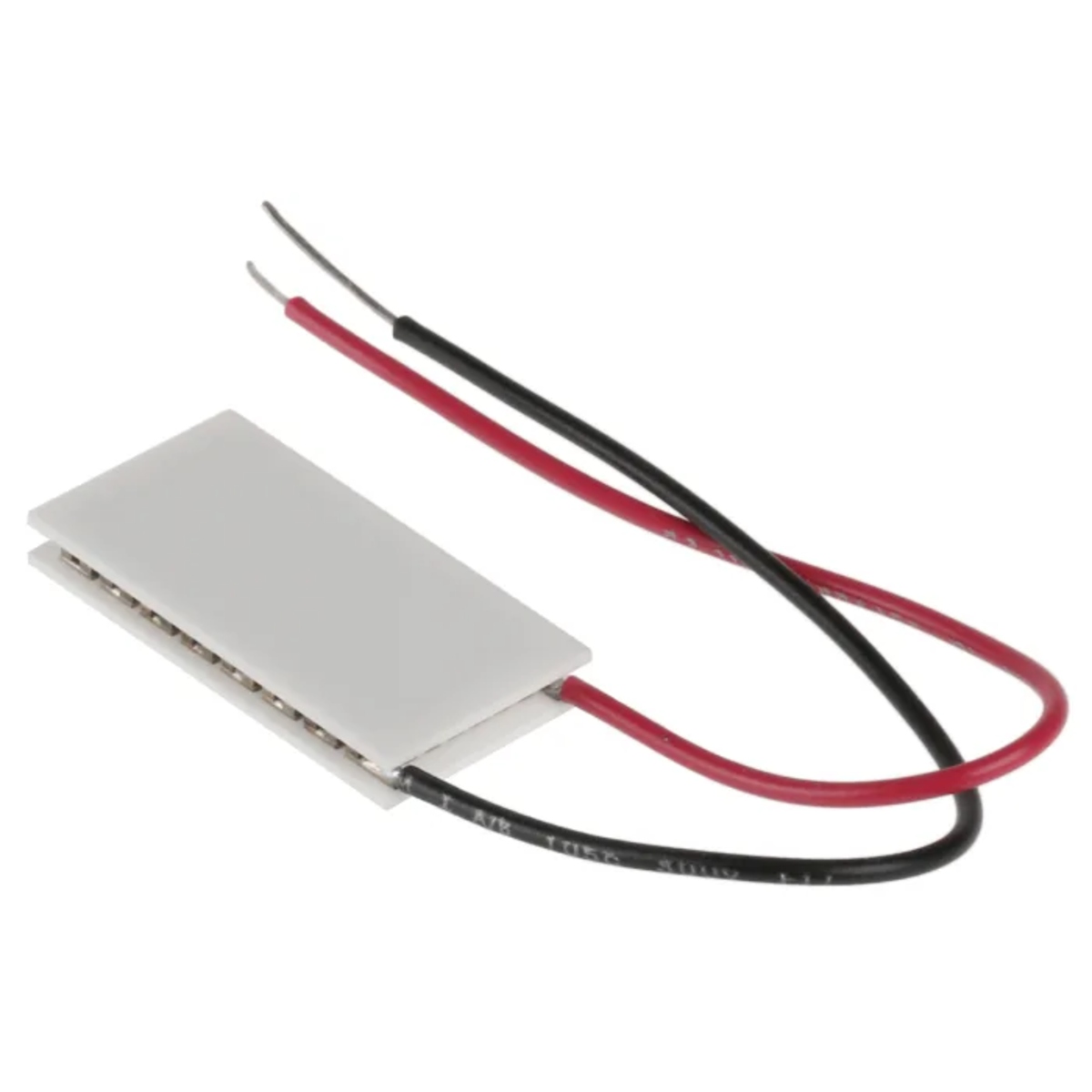

17.9W Thermoelectric Peltier Module 30x15mm (TEC Cooler, Thermoelectric Cooling Module)

The 17.9W Thermoelectric Peltier Module is a compact solid-state cooling device that operates using the Peltier effect to provide both cooling and heating functions. When a DC voltage is applied, one side of the module becomes cold while the opposite side becomes hot, enabling efficient heat transfer. Its compact 30x15mm size makes it ideal for electronic cooling, laboratory equipment, portable refrigeration systems, and temperature control applications.

Key Features -

• Thermoelectric cooling and heating operation

• Cooling capacity up to 17.9W

• Maximum temperature difference up to 74K

• Compact 30x15mm module size

• Fast thermal response

• Lightweight construction

• Silicone sealed for durability

• Direct heat sink mounting capability

Specifications -

• Product type - Thermoelectric Peltier Module

• Cooling power - 17.9W

• Rated voltage - 7.6V DC

• Rated current - 3.9A

• Maximum temperature difference - 74K

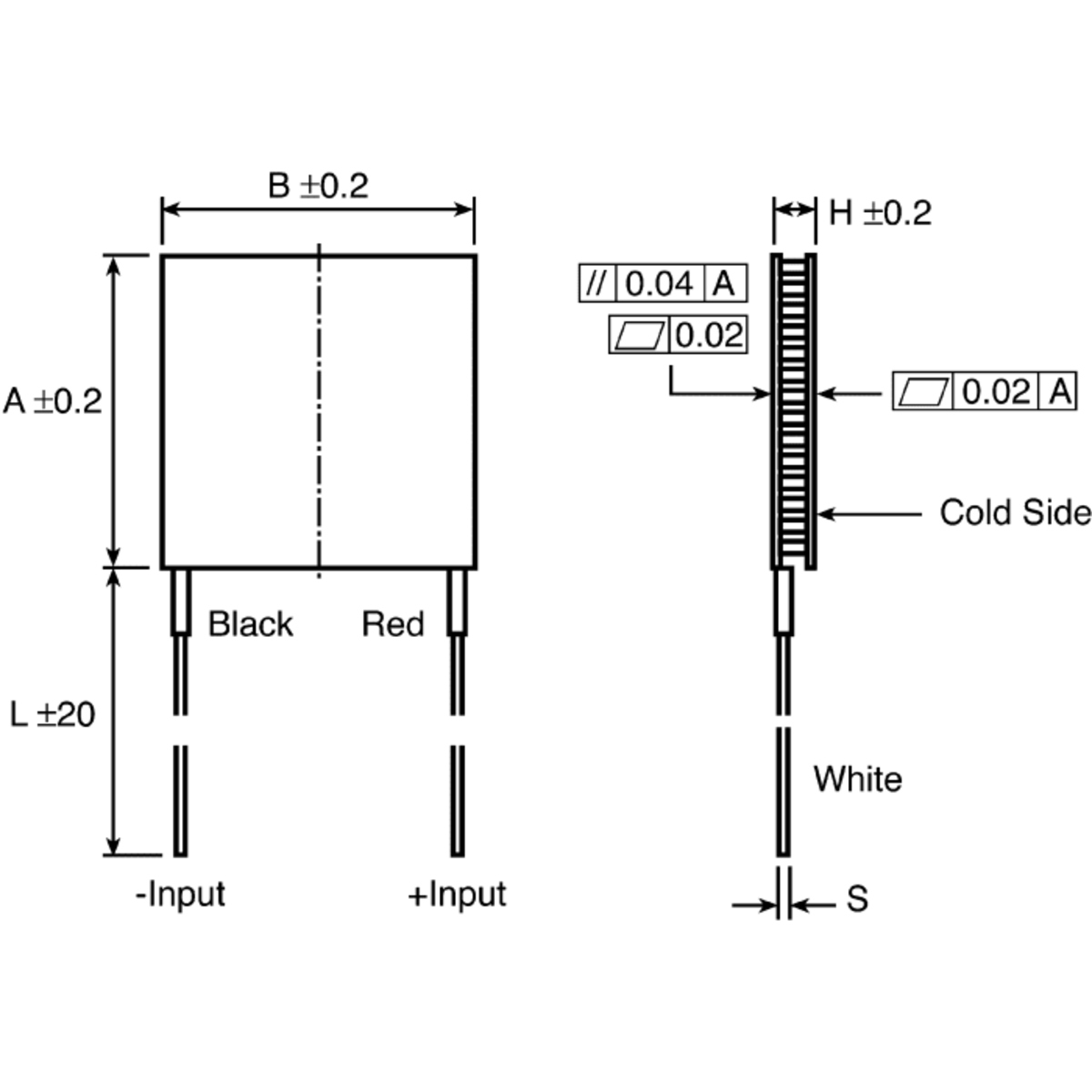

• Module size - 30 x 15mm

• Operating principle - Peltier Thermoelectric Effect

• Construction - Solid State Module

• Sealing type - Silicone Sealed

• Application - Cooling and Heating Systems

Interfaces -

• Red Wire - Positive DC Input

• Black Wire - Negative DC Input

Applications -

• Electronic component cooling

• Portable refrigeration systems

• Temperature control equipment

• Laboratory instruments

• Medical devices

• DIY cooling projects

• Industrial thermal management
