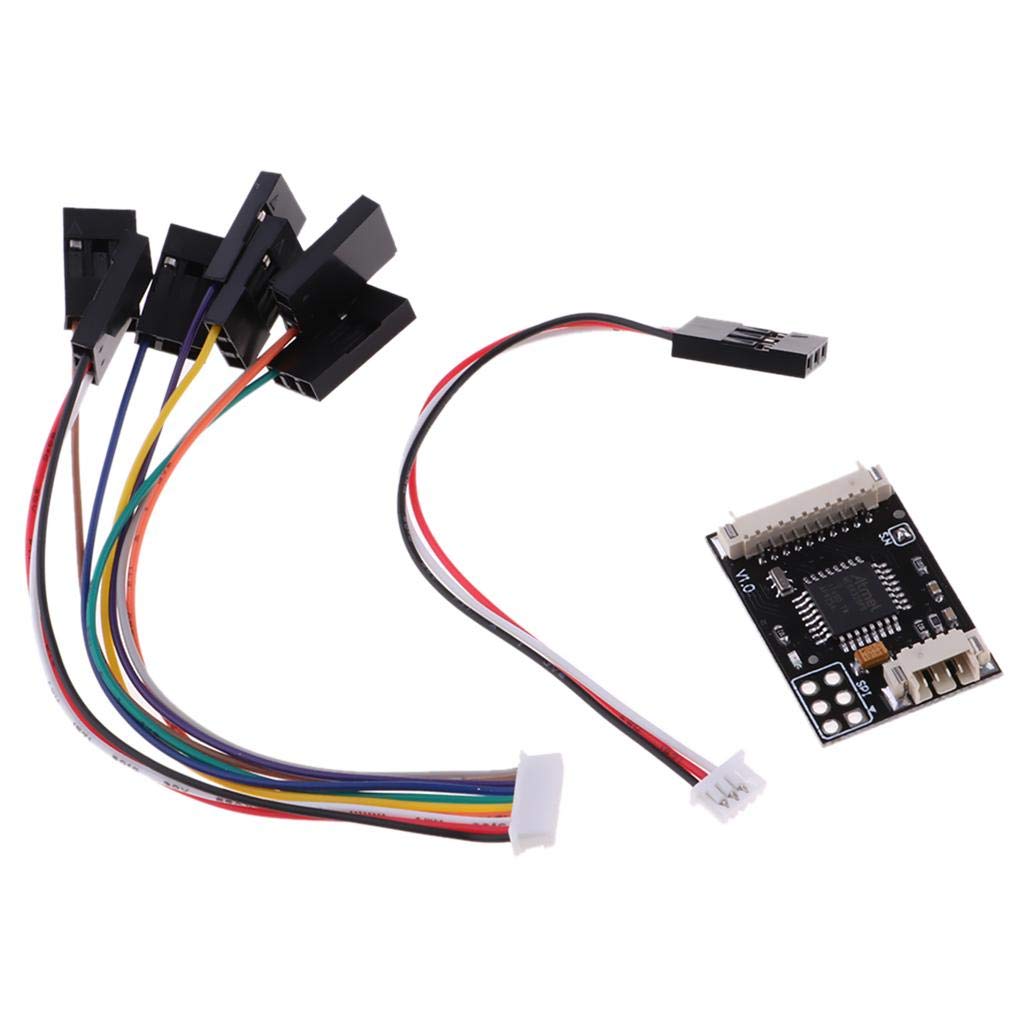

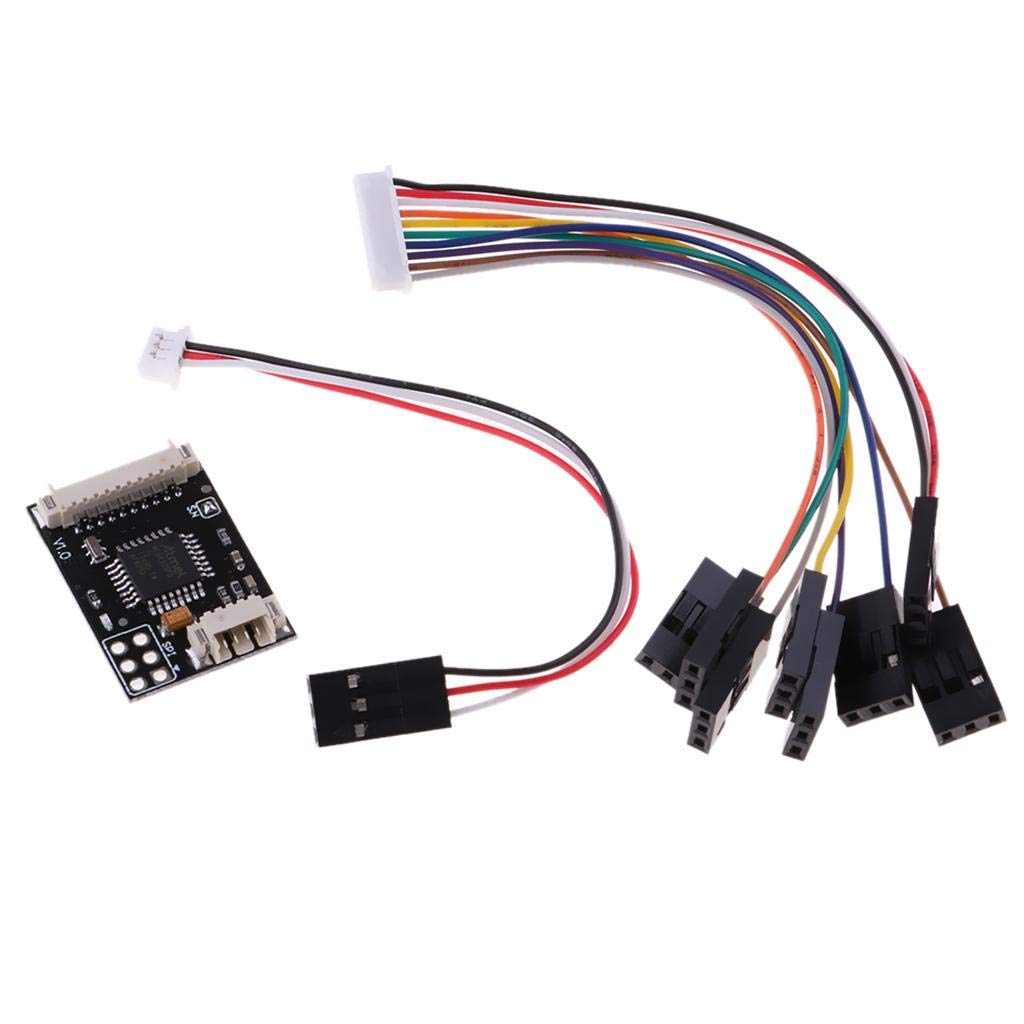

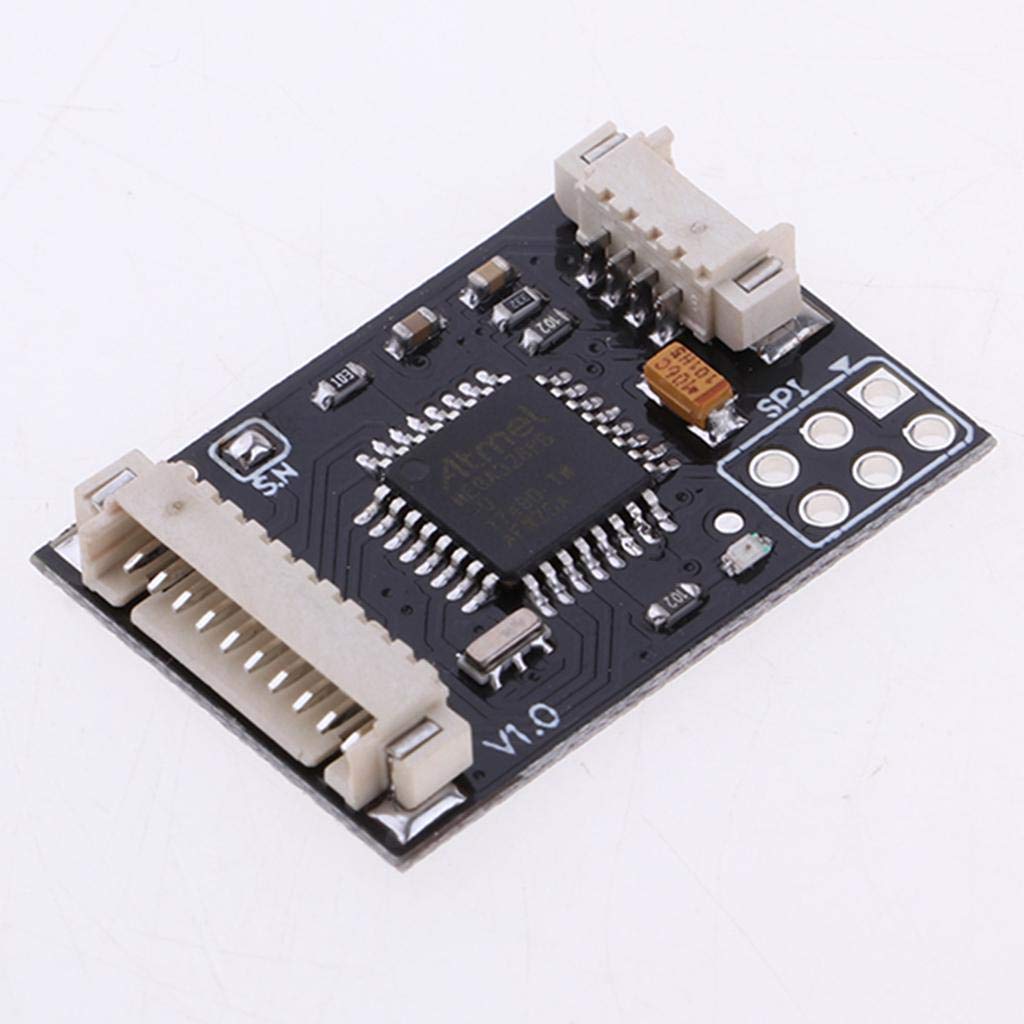

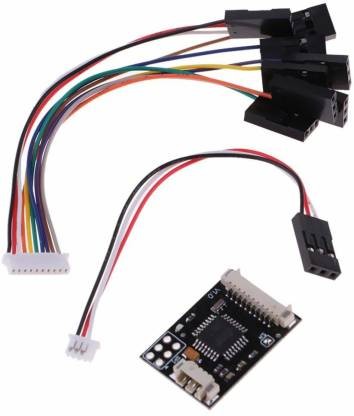

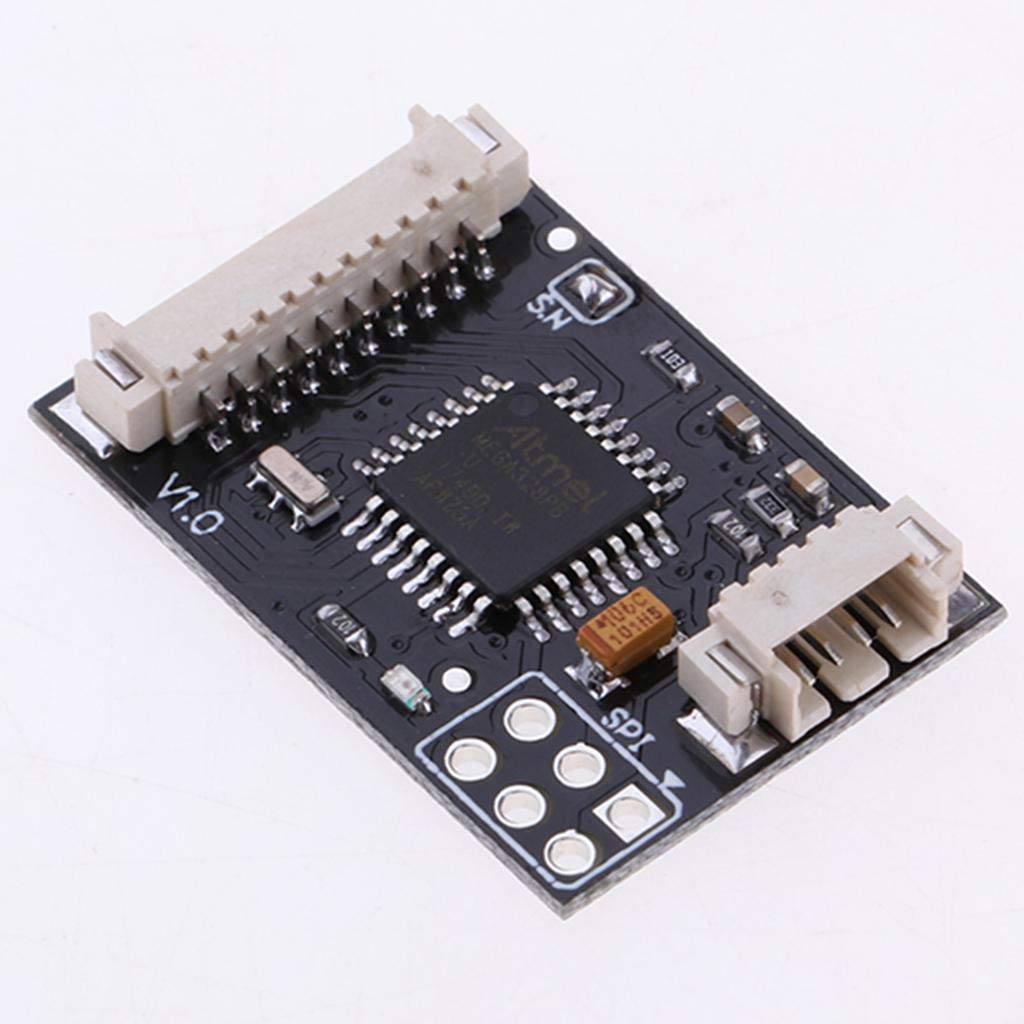

PM Encoder V1.0 for Pixhawk PPZ MK MWC MegaPirate APM Flight Controller (PPM Encoder Module)

The PM Encoder V1.0 is a signal conversion module designed for use with Pixhawk, APM, MegaPirate, MultiWii, and other compatible flight controllers. It converts multiple PWM input signals from an RC receiver into a single PPM output stream, simplifying wiring and improving flight controller integration in drones, UAVs, and RC aircraft.

Key Features -

• Converts multiple PWM channels to a single PPM signal

• Compatible with Pixhawk and APM flight controllers

• Reduces wiring complexity

• Compact and lightweight design

• Stable and reliable signal conversion

• Easy installation and integration

• Suitable for multirotor and fixed-wing aircraft

Specifications -

• Product type - PPM Encoder Module

• Model - PM Encoder V1.0

• Signal conversion - PWM to PPM

• Input type - Multiple PWM channels

• Output type - Single PPM signal

• Compatibility - Pixhawk, PPZ MK, MWC, MegaPirate, APM Flight Controllers

• Mounting type - PCB Module

• Operating voltage - Suitable for standard RC receiver systems

• Application type - RC signal processing and flight controller interfacing

• Material - Electronic PCB assembly

• Additional features - Simplifies receiver connections and improves cable management

Applications -

• Quadcopters and multirotor drones

• Fixed-wing RC aircraft

• UAV flight control systems

• Pixhawk-based projects

• APM flight controller systems

• RC hobby and research projects
