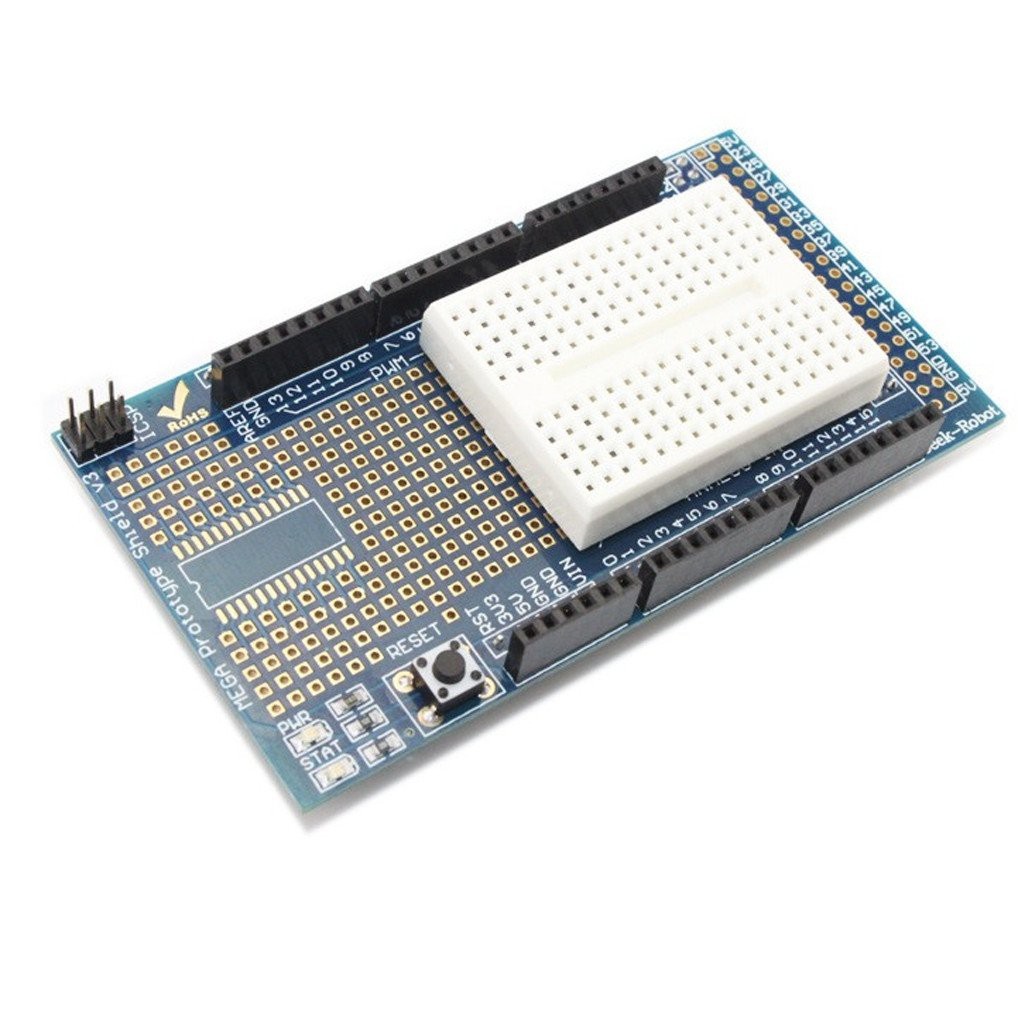

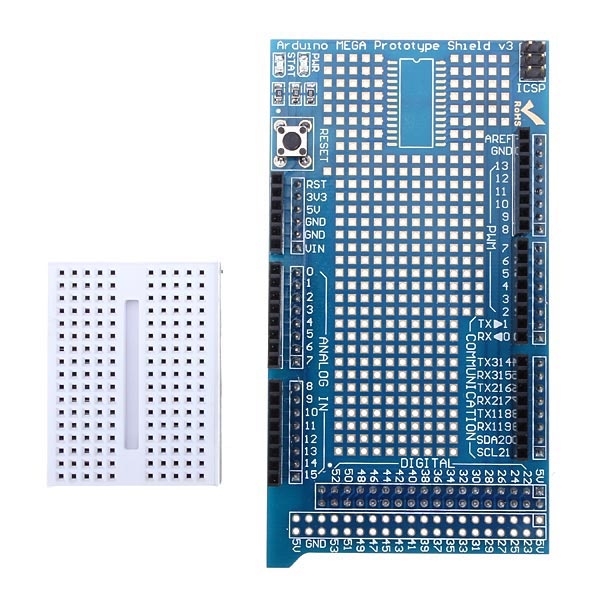

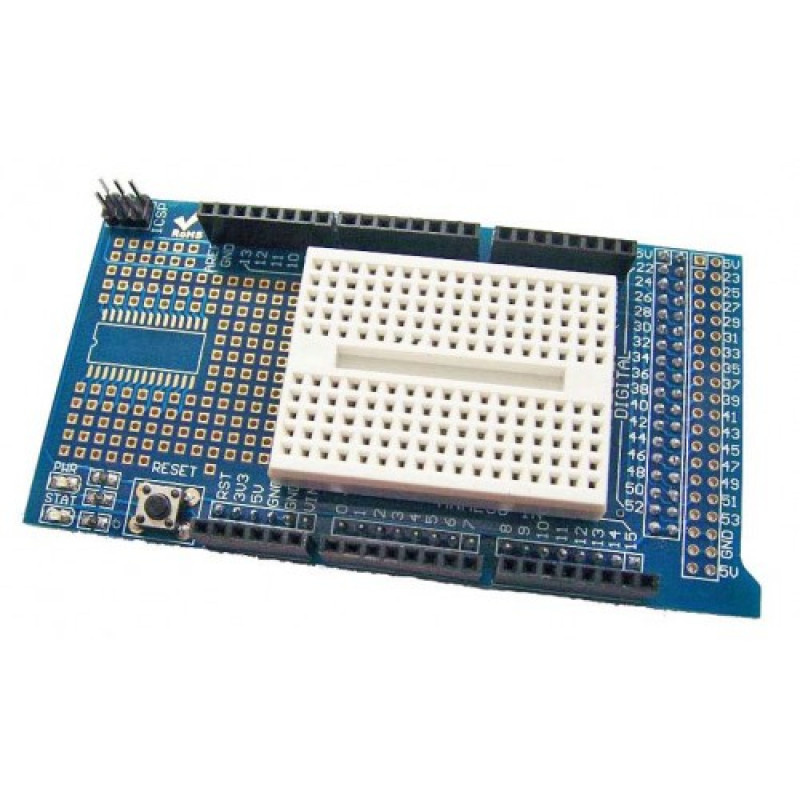

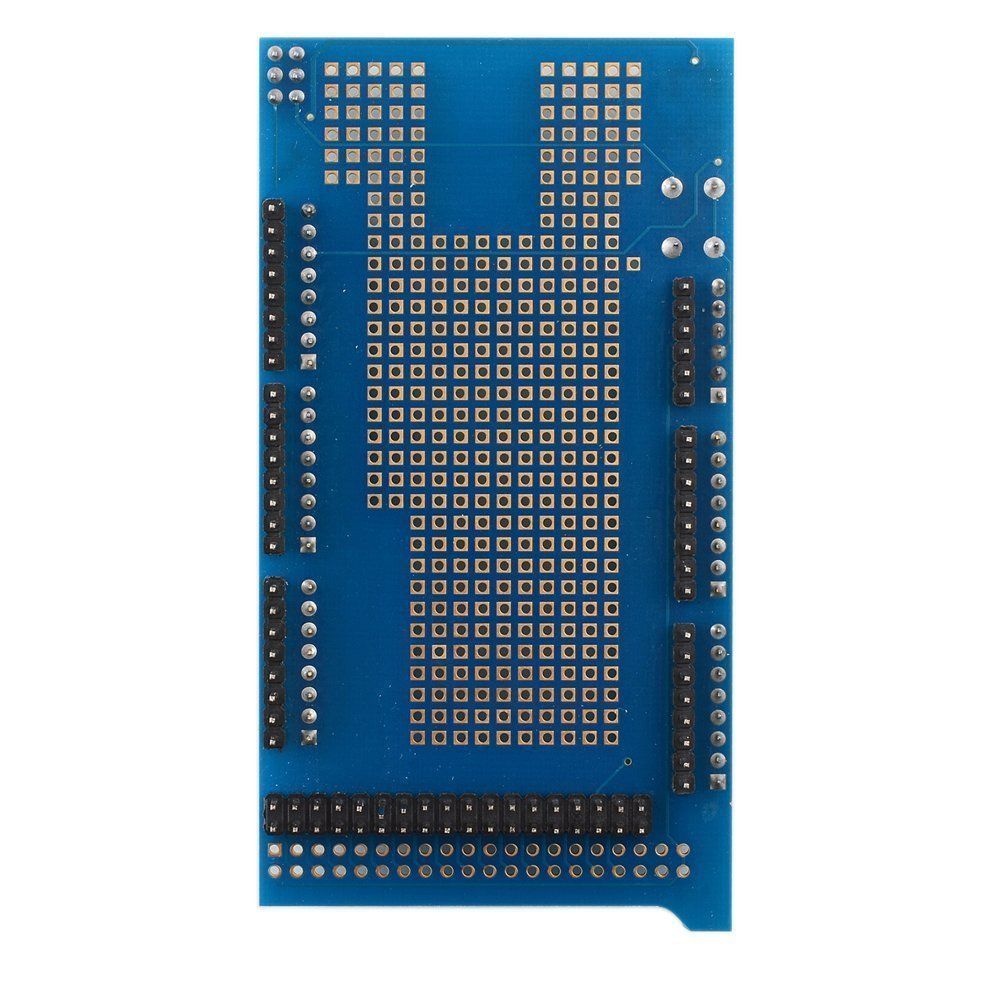

Prototype Shield V3.0 for Arduino Mega with Mini Breadboard (Arduino Mega Prototype Expansion Board)

The Prototype Shield V3.0 for Arduino Mega is an easy-to-use expansion board designed to simplify prototyping and custom circuit development. It features a solderable prototyping area along with a detachable mini breadboard, providing flexible options for both permanent and temporary circuit assembly.

This shield plugs directly into Arduino Mega headers, giving convenient access to all I/O pins while providing ample space to build, test, and modify custom circuits without additional wiring complexity.

Key Features -

• Compatible with Arduino Mega boards

• Includes solderable prototyping area

• Comes with detachable mini breadboard

• Direct plug-and-play shield design

• Access to all Arduino Mega I/O pins

• Ideal for rapid prototyping and testing

• Compact and durable construction

Specifications -

• Product type - Prototype Shield Expansion Board

• Version - V3.0

• Board compatibility - Arduino Mega

• Breadboard type - Mini Detachable Breadboard

• Prototyping area - Solderable Pads and Traces

• Operating voltage - 5V from Arduino Mega

• Mounting type - Direct Shield Header Connection

• Connector type - Arduino Mega Shield Headers

• Construction - PCB with Mini Breadboard

• Application - Circuit Prototyping and Development

Interfaces -

• Arduino Mega Shield Header Pins

• Prototyping Area Pads

• Mini Breadboard Connection Area

• Power Pins - 5V and GND

Applications -

• Arduino Mega projects

• Electronic prototyping

• Sensor interfacing

• Embedded system development

• Educational electronics projects

• DIY circuit design

• Hardware testing and experimentation
