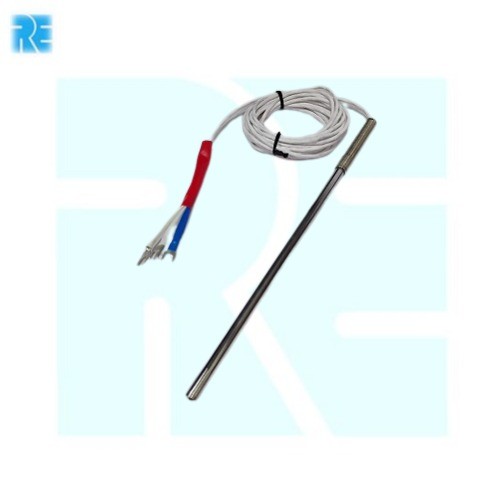

PT100 RTD Sensor Pencil Type Probe 3 Meter 3 Wire Cable Stainless Steel Temperature Sensor (PT100 RTD Sensor)

SKU: RSN-177Category: Sensors
₹ 501.50 (Inclusive of 18.00% GST)
Base Price: ₹ 425.00 | GST (18.00%): ₹ 76.50
Out of Stock
Secure payments powered by Razorpay
UPIMastercardRuPayGoogle Pay
Pune Store Pickup – Free
Order before 5 PM • Ready in approx. 2 hours
Collect upto 7:30 PM (Mon – Sat)
Dispatch from Pune
Orders before 3 PM: Same day dispatch
Orders after 3 PM: Next day dispatch
(No dispatch on Sunday)
Buying in bulk?
Secure Payments100% safe and trusted
GST InvoiceWith every order
Wide Product RangeComponents, modules, tools and more
Product SupportQuick assistance via email

PT100 RTD Sensor Pencil Type Probe 3 Meter 3 Wire Cable Stainless Steel Temperature Sensor (PT100 RTD Sensor)

The PT100 RTD pencil type probe is a precision platinum resistance temperature sensor designed for accurate temperature measurement in industrial laboratory and automation applications. It uses a 3 wire configuration to improve measurement accuracy by compensating lead wire resistance.

Key Features -

  • PT100 platinum RTD temperature sensor
  • Pencil type stainless steel probe design
  • 3 wire configuration for improved accuracy
  • 3 meter cable length for flexible installation
  • Stable and repeatable temperature measurement
  • Suitable for industrial and laboratory use

Specifications -

  • Sensor type - PT100 RTD sensor
  • Probe type - pencil type probe
  • Wire configuration - 3 wire
  • Cable length - approx 3 meter
  • Probe material - stainless steel SS316 typical
  • Temperature range - approx -50 to 450 degree C typical
  • Resistance - 100 ohm at 0 degree C
  • Accuracy - class A or class B typical

Applications -

  • Industrial process temperature measurement
  • HVAC and thermal monitoring systems
  • Laboratory and testing equipment
  • Food processing and automation systems
  • Chemical and pharmaceutical industries

Pinout Configuration -

  • Red wire - RTD terminal
  • Red wire - compensation terminal
  • White wire - RTD terminal
