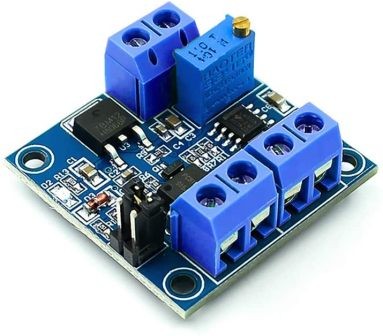

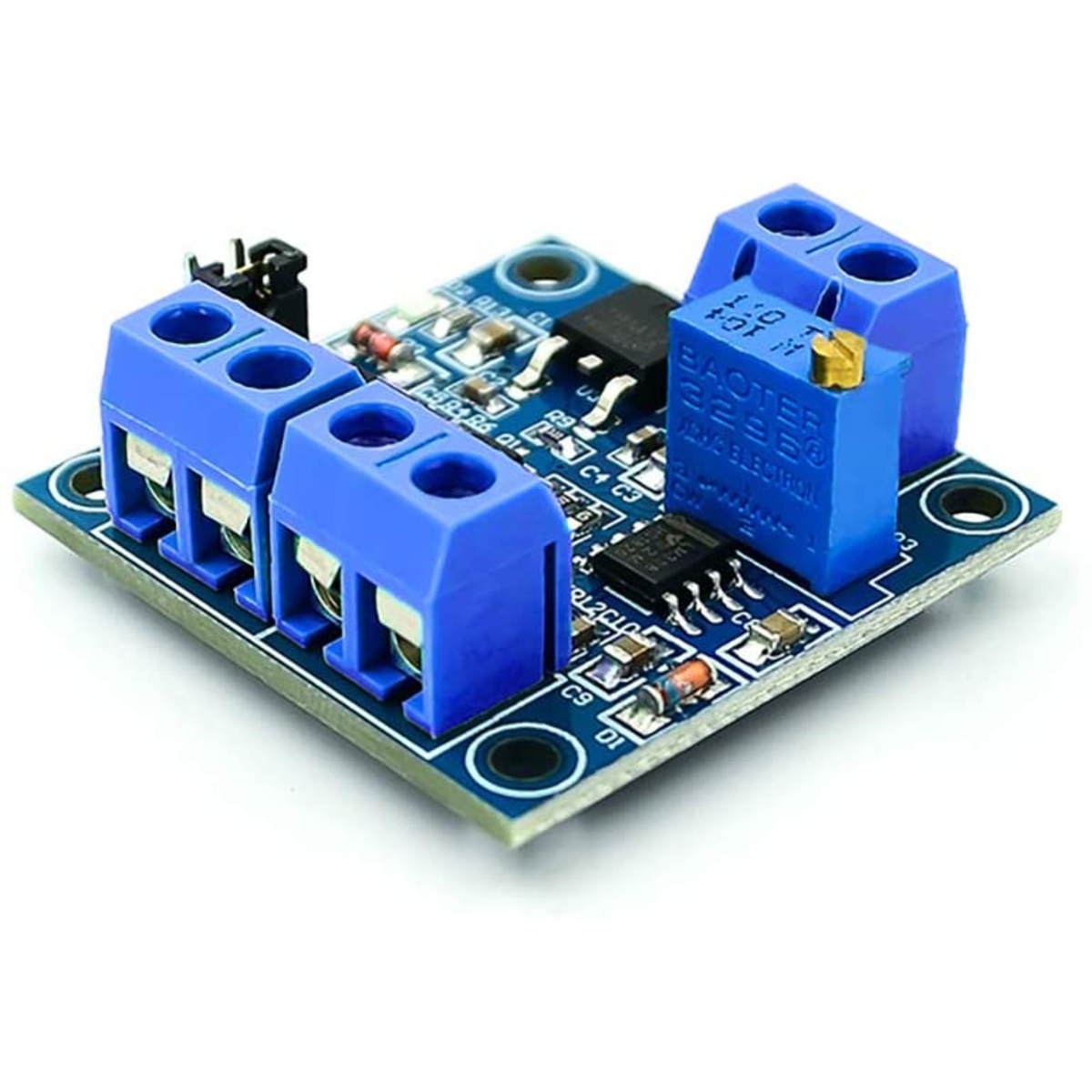

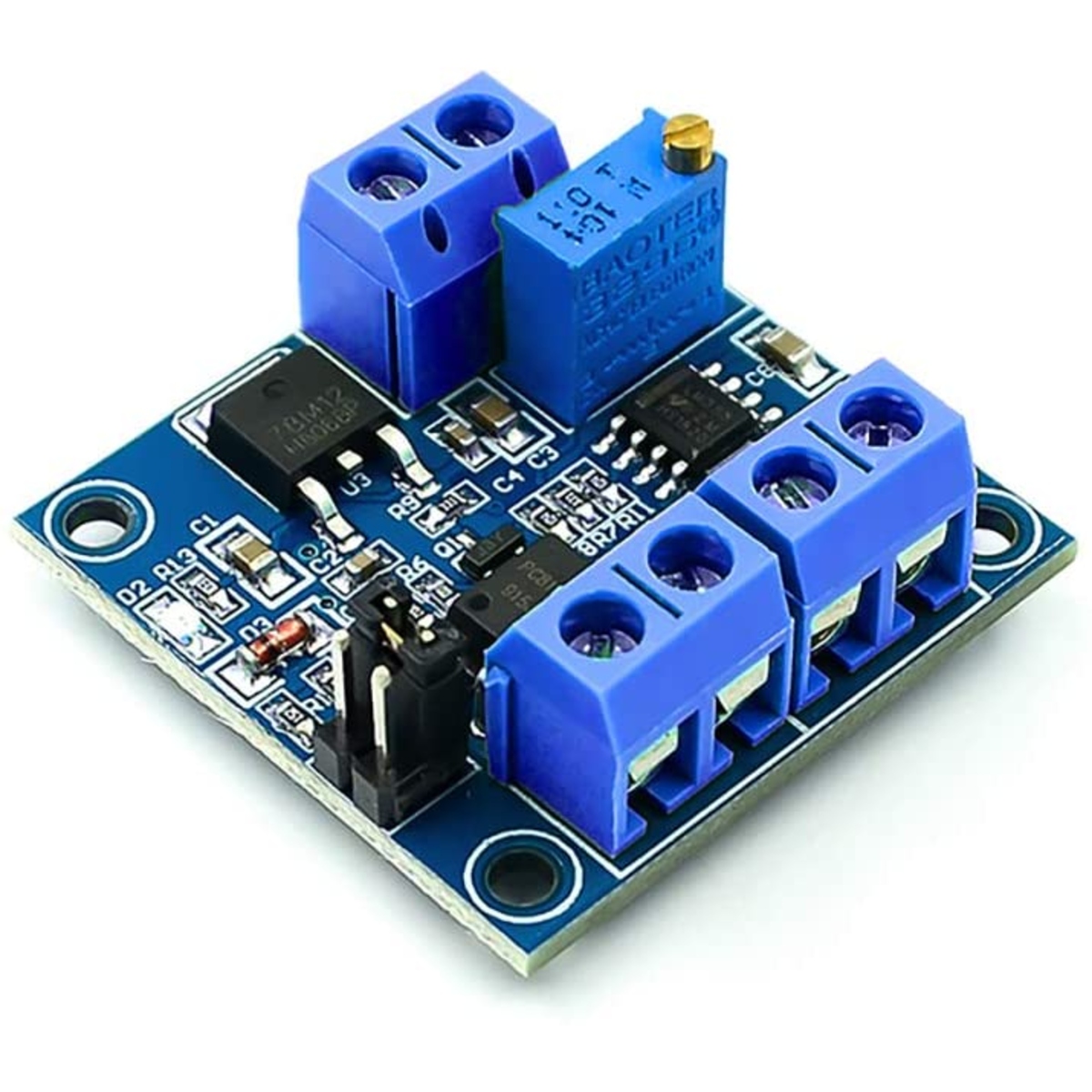

PWM to Voltage 0-100% to 0-10V Converter Module (PWM Signal to Analog Voltage Module)

The PWM to Voltage Converter Module is designed to convert a PWM (Pulse Width Modulation) signal into a proportional analog voltage output ranging from 0V to 10V. It is widely used in industrial automation, PLC systems, variable frequency drives, motor speed control, lighting control, and embedded control applications where a stable analog voltage signal is required.

The module accurately converts PWM duty cycles from 0% to 100% into a corresponding 0-10V analog output, making it ideal for interfacing digital controllers with analog-controlled equipment.

Key Features -

• Converts PWM signals to 0-10V analog voltage

• Supports 0% to 100% duty cycle conversion

• Stable and accurate analog output

• Industrial control compatible

• Easy integration with PLC and microcontroller systems

• Compact module design

• Suitable for automation applications

Specifications -

• Product type - PWM to Voltage Converter Module

• Input signal - PWM Signal

• Input duty cycle range - 0% to 100%

• Output voltage range - 0V to 10V DC

• Conversion type - PWM to Analog Voltage

• Output signal - Linear Voltage Output

• Mounting type - PCB Module

• Control interface - PWM Input Terminal

• Application - Analog Signal Generation

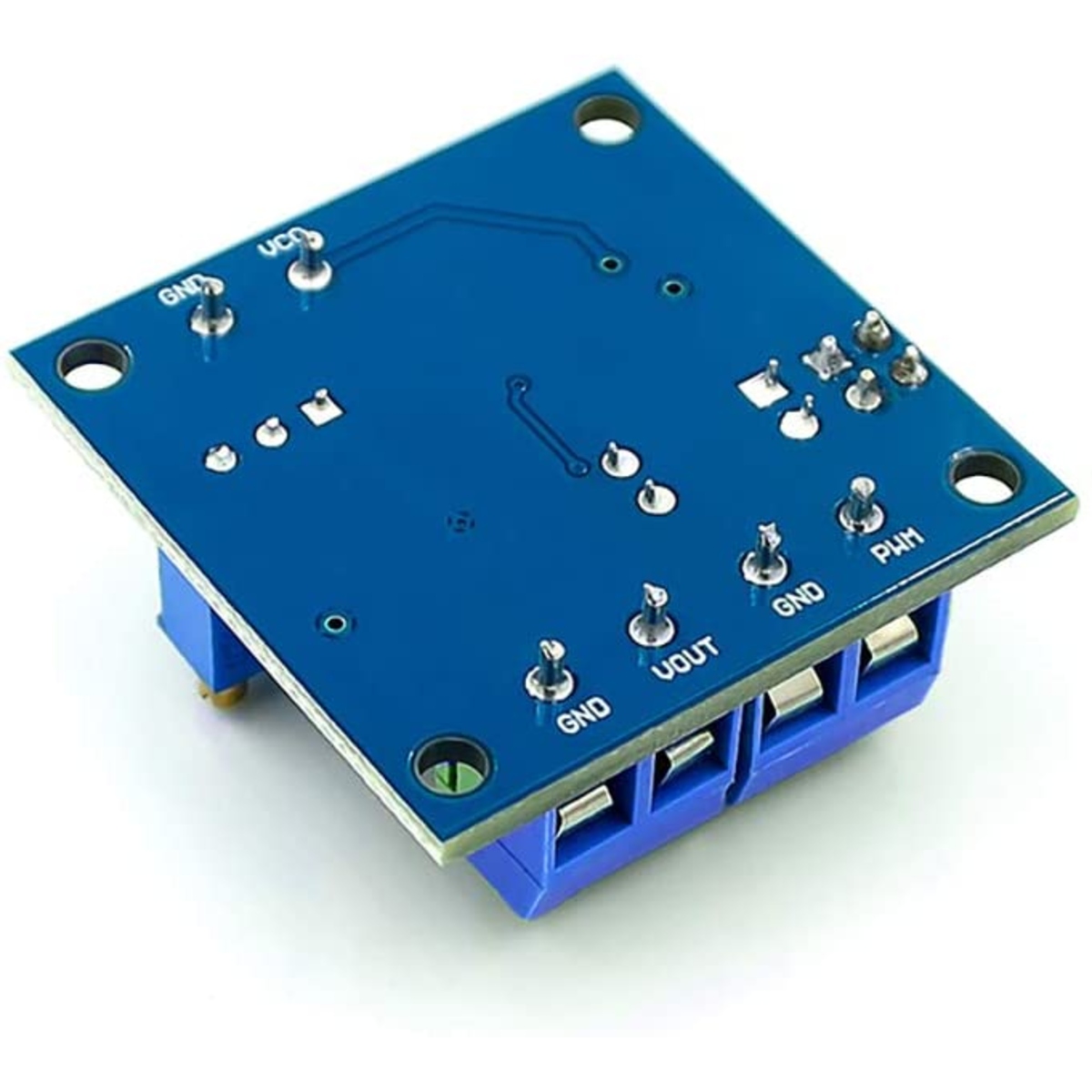

Interfaces -

• VCC - Power Supply Input

• GND - Ground Connection

• PWM IN - PWM Signal Input

• VOUT - Analog Voltage Output (0V to 10V)

• GND OUT - Output Ground Reference

Applications -

• PLC analog signal generation

• Variable frequency drive control

• Motor speed control systems

• LED dimming applications

• Industrial automation equipment

• Process control systems

• Embedded electronics projects
