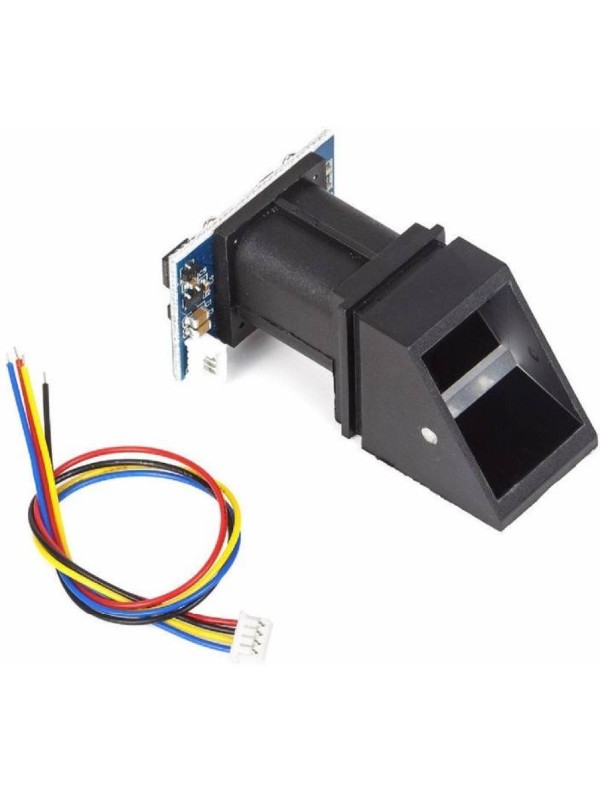

R305 FINGERPRINT BIOMETRIC SENSOR WITH SERIAL UART

The R305 Fingerprint Biometric Sensor is a compact and reliable fingerprint recognition module designed for secure access control and identity verification systems. It integrates an optical fingerprint sensor high speed DSP processor and onboard flash memory for fingerprint template storage.

The module supports serial UART communication allowing easy interfacing with microcontrollers such as Arduino ESP32 STM32 and other embedded platforms. It can perform fingerprint enrollment matching and searching directly within the module reducing the processing load on the main controller.

KEY FEATURES

Optical fingerprint sensing technology

Built in DSP processor for fast matching

Onboard flash memory for template storage

UART serial communication interface

High accuracy fingerprint recognition

Supports fingerprint enrollment and deletion

Low power consumption

Compact and durable design

SPECIFICATIONS

Model R305

Sensor Type Optical

Interface UART TTL level

Operating Voltage 3.6V to 6V

Operating Current Typically 100 mA

Fingerprint Capacity Up to 256 templates

False Acceptance Rate Less than 0.001 percent

False Rejection Rate Less than 1 percent

Communication Speed Up to 57600 bps

Image Resolution 500 dpi

INTERFACES

VCC Power supply

GND Ground

TX Data transmit

RX Data receive

Touch or status pin depending on version
