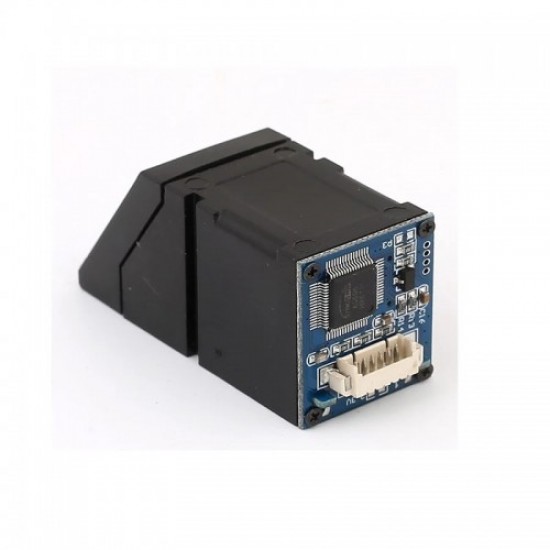

R307 FINGERPRINT BIOMETRIC SENSOR WITH SERIAL UART

The R307 Fingerprint Biometric Sensor is an advanced optical fingerprint recognition module designed for secure authentication and access control applications. It features a high performance DSP processor and onboard flash memory for storing fingerprint templates with fast and accurate matching.

The module communicates through a serial UART interface allowing easy integration with microcontrollers such as Arduino ESP32 STM32 and other embedded systems. It can independently handle fingerprint enrollment comparison and searching reducing the processing burden on the host controller.

KEY FEATURES

Optical fingerprint sensing technology

High speed DSP processor for fast matching

Onboard flash memory for template storage

UART serial TTL interface

High accuracy fingerprint recognition

Supports fingerprint enrollment deletion and search

Low power consumption design

Built in LED indicator

SPECIFICATIONS

Model R307

Sensor Type Optical

Interface UART TTL level

Operating Voltage 3.6V to 6V

Operating Current Typically 120 mA

Fingerprint Capacity Up to 1000 templates

False Acceptance Rate Less than 0.001 percent

False Rejection Rate Less than 1 percent

Communication Speed Up to 57600 bps

Image Resolution 500 dpi

INTERFACES

VCC Power supply

GND Ground

TX Data transmit

RX Data receive

Touch or status pin depending on version
