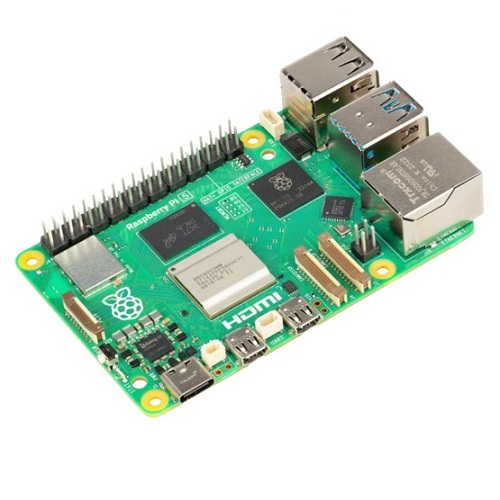

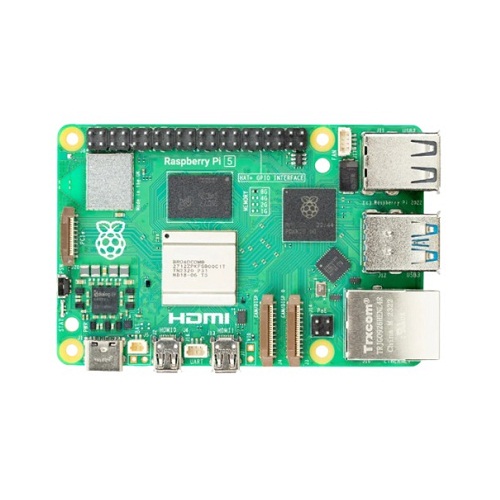

Raspberry Pi 5 Model B 2GB RAM (Quad-Core Arm Cortex-A76 Single Board Computer)

The Raspberry Pi 5 Model B 2GB is a high-performance single-board computer designed for embedded systems, robotics, Internet of Things (IoT), artificial intelligence edge computing, multimedia, industrial automation, and software development. Powered by a 2.4GHz quad-core 64-bit Arm Cortex-A76 processor with 2GB LPDDR4X RAM, it delivers substantial performance improvements over previous Raspberry Pi models. Featuring dual-band Wi-Fi, Bluetooth 5.0, Gigabit Ethernet, PCIe expansion, dual MIPI interfaces, USB 3.0, and a 40-pin GPIO header, it provides a powerful and versatile platform for professional and educational applications.

Key Features -

• 2.4GHz quad-core 64-bit Arm Cortex-A76 processor

• 2GB LPDDR4X-4267 SDRAM for efficient multitasking

• VideoCore VII GPU for enhanced graphics performance

• Dual-band 2.4GHz and 5GHz IEEE 802.11ac Wi-Fi

• Bluetooth 5.0 with Bluetooth Low Energy (BLE)

• Gigabit Ethernet with PoE+ support (PoE+ HAT required)

• Two USB 3.0 and two USB 2.0 ports

• MicroSD card slot with SDR104 high-speed support

• PCIe 2.0 x1 interface for high-speed expansion

• Dual 4-lane MIPI camera/display transceivers

• Standard 40-pin Raspberry Pi GPIO header

• Built-in Real-Time Clock (RTC) with external battery support

• Onboard power button for convenient operation

Specifications -

• Product type - Single Board Computer (SBC)

• Model - Raspberry Pi 5 Model B 2GB

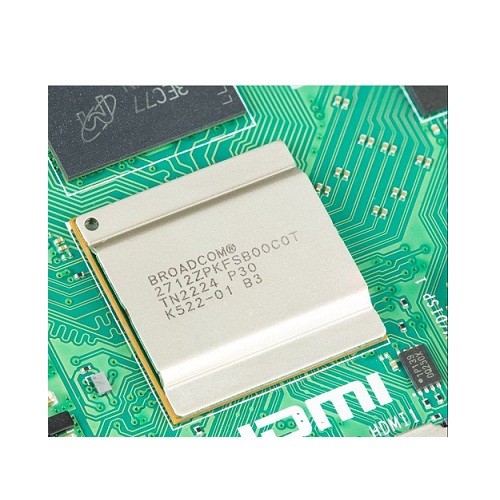

• Main processor - Broadcom BCM2712 Quad-Core 64-bit Arm Cortex-A76

• CPU speed - 2.4GHz

• CPU cache - 512KB L2 Cache, 2MB Shared L3 Cache

• GPU - VideoCore VII

• Memory - 2GB LPDDR4X-4267 SDRAM

• Wireless connectivity - Dual-band IEEE 802.11ac Wi-Fi (2.4GHz/5GHz)

• Bluetooth - Bluetooth 5.0 with BLE

• Ethernet - Gigabit Ethernet (PoE+ supported with optional HAT)

• USB ports - 2 × USB 3.0, 2 × USB 2.0

• Storage - MicroSD Card Slot (SDR104 High-Speed Mode)

• Expansion interface - PCIe 2.0 x1

• Camera/Display interfaces - 2 × 4-Lane MIPI Camera/Display Transceivers

• GPIO - 40-Pin Standard Raspberry Pi Header

• RTC - Built-in with External Battery Support

• Power input - 5V DC, 5A via USB Type-C with Power Delivery Support

Applications -

• Embedded system development

• Robotics and automation projects

• Internet of Things (IoT) devices

• AI and edge computing applications

• Home automation systems

• Media centers and digital signage

• Industrial monitoring and control

• Network servers and gateways

• Educational programming and electronics learning

• Computer vision and machine learning projects
