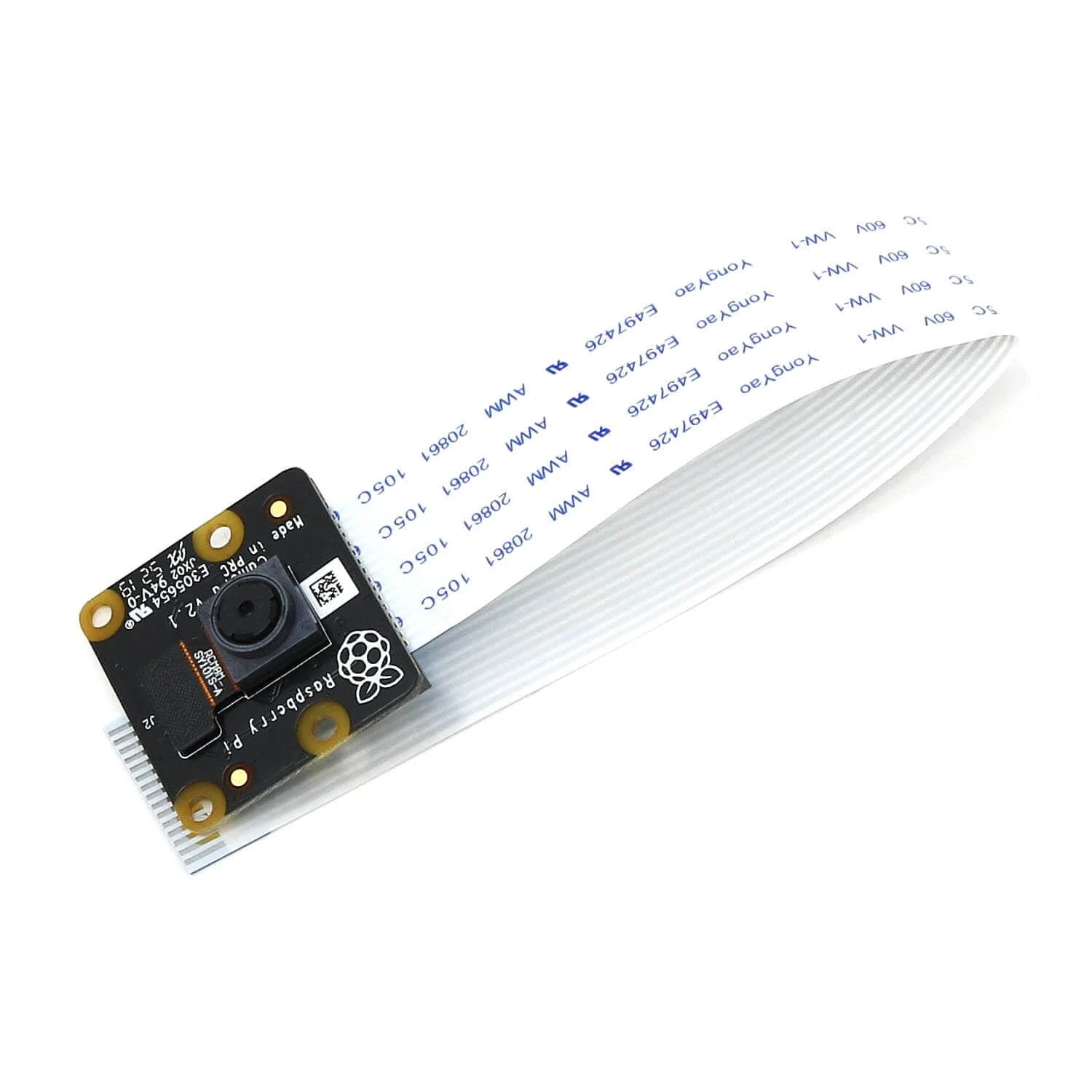

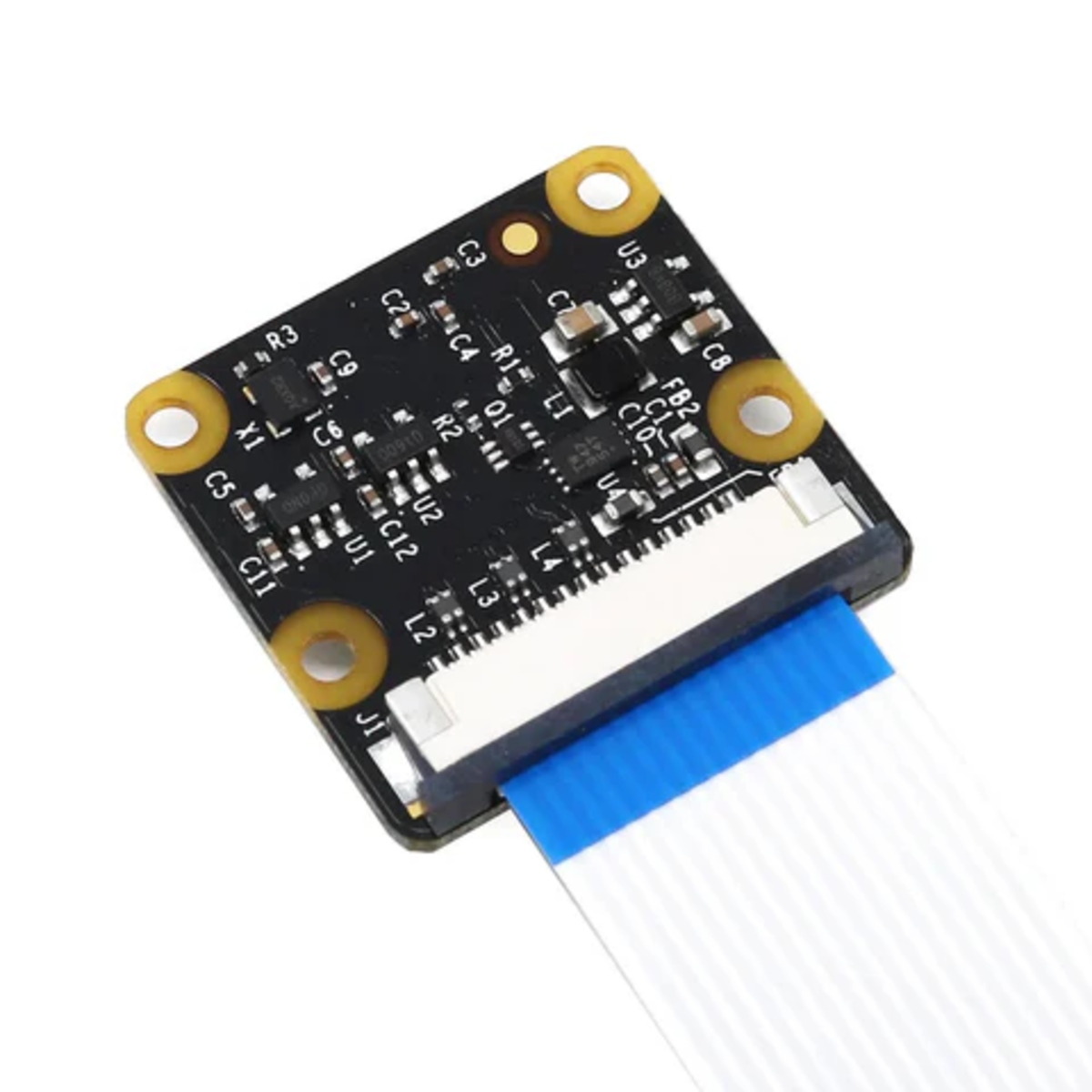

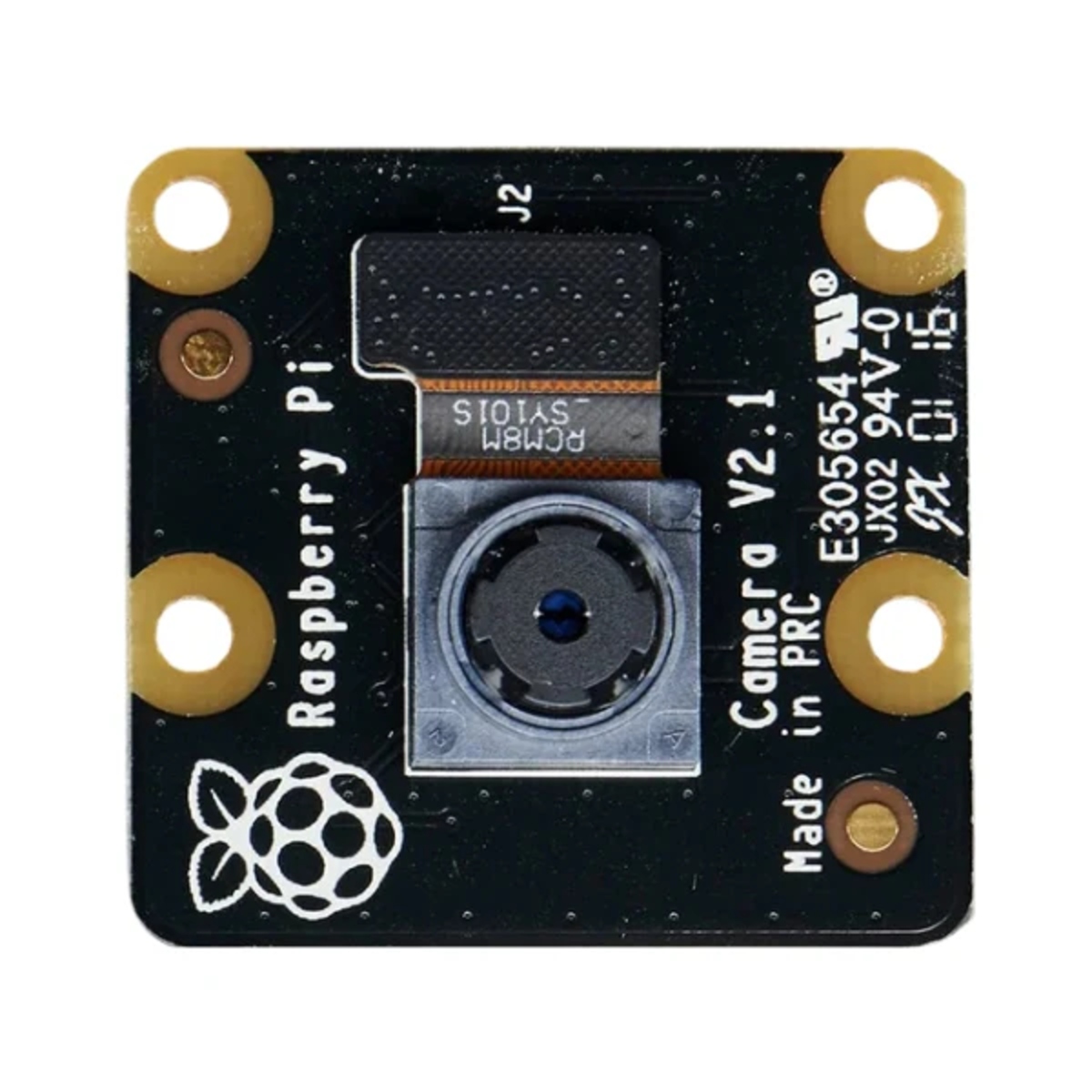

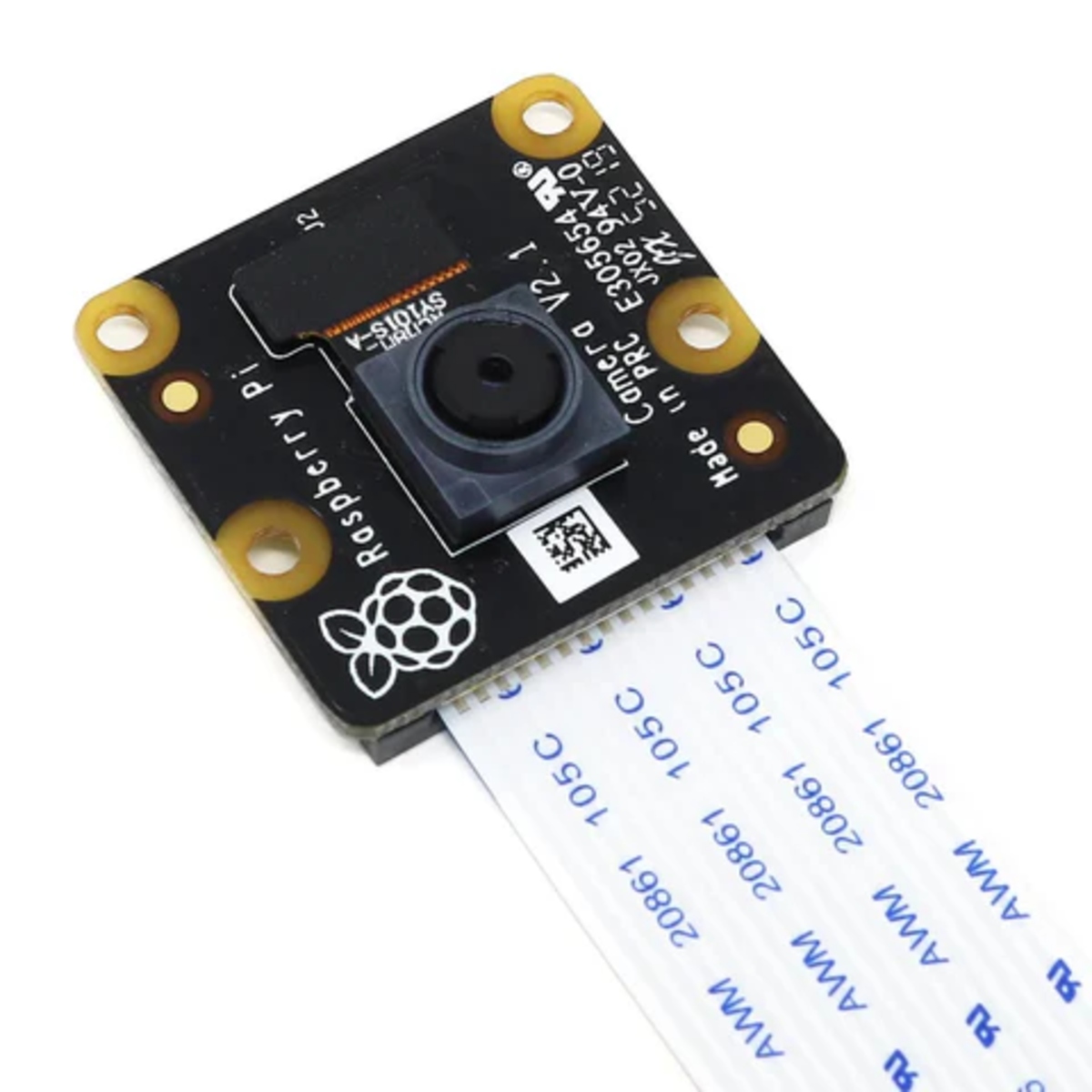

Raspberry Pi NoIR Camera V2 (8MP Sony IMX219 Camera Module with CSI Interface)

The Raspberry Pi NoIR Camera V2 is an official camera module designed for Raspberry Pi computers, featuring the Sony IMX219 8-megapixel image sensor. Unlike the standard Camera Module V2, the NoIR version does not include an infrared (IR) cut filter, allowing it to capture infrared light for improved imaging in low-light environments when used with IR illumination. The camera connects directly to the Raspberry Pi CSI (Camera Serial Interface) port, providing high-quality still images and Full HD video recording. It is ideal for night vision systems, surveillance, robotics, machine vision, wildlife monitoring, time-lapse photography, and computer vision projects.

Key Features -

• Official Raspberry Pi NoIR Camera Module V2

• Sony IMX219 8MP CMOS image sensor

• No infrared filter for night vision applications

• Direct CSI interface connection

• Supports high-resolution still images

• Full HD video recording support

• Compact and lightweight design

• Fixed focus lens

• Compatible with Raspberry Pi camera software

• Ideal for computer vision and surveillance

Specifications -

• Product type - Camera Module

• Model - Raspberry Pi NoIR Camera V2

• Image sensor - Sony IMX219

• Sensor resolution - 8 Megapixels

• Maximum still resolution - 3280 × 2464 Pixels

• Video resolutions - 1080p, 720p and 640 × 480

• Lens type - Fixed Focus

• Infrared sensitivity - Yes (NoIR)

• Interface - CSI (Camera Serial Interface)

• Operating voltage - 3.3V (Via CSI Connector)

• Mounting type - PCB Camera Module

Applications -

• Night vision systems

• Surveillance cameras

• Wildlife monitoring

• Robotics vision

• Computer vision

• Machine learning projects

• Time-lapse photography

• Embedded imaging systems
