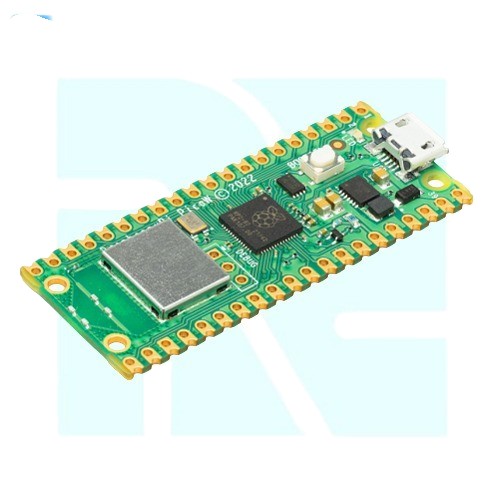

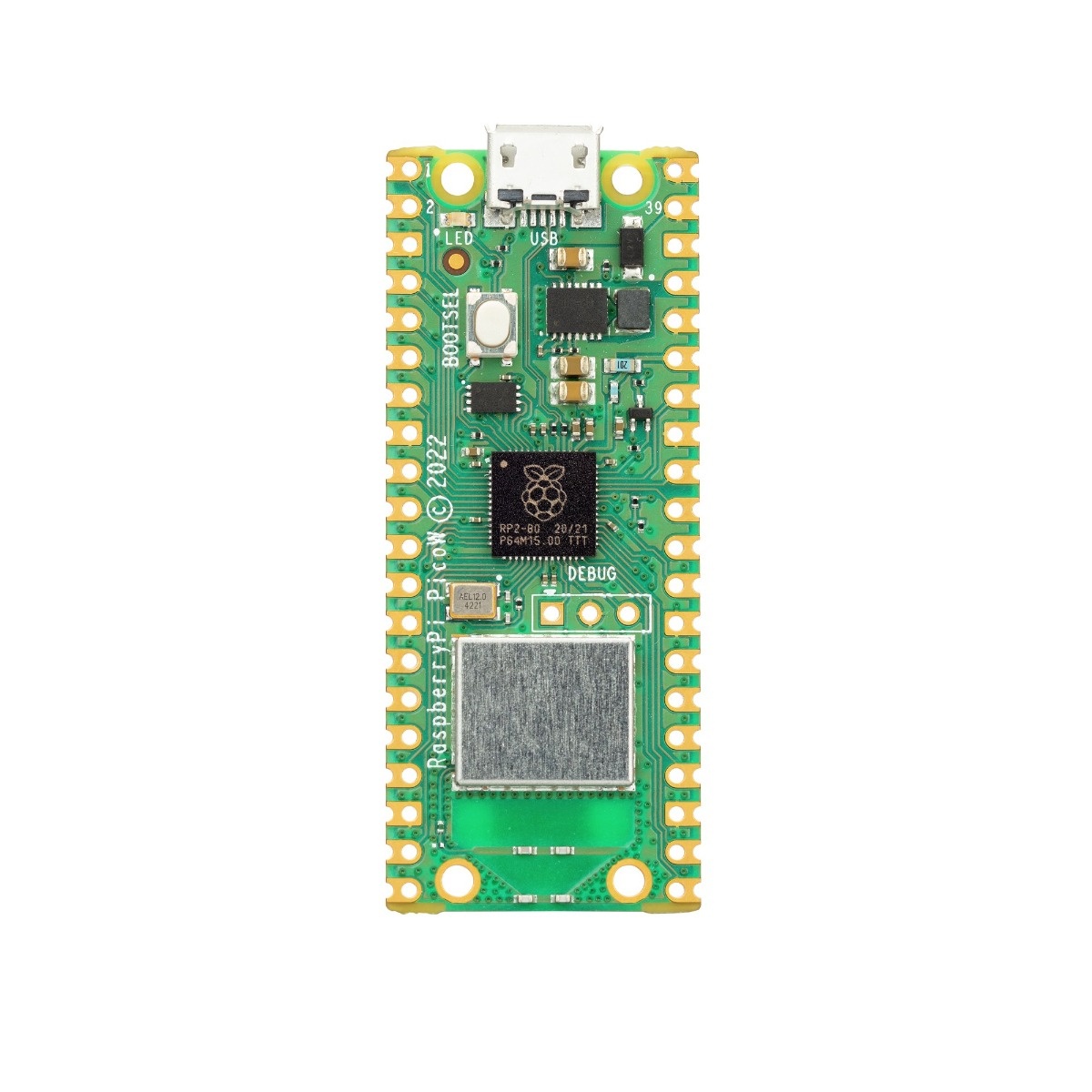

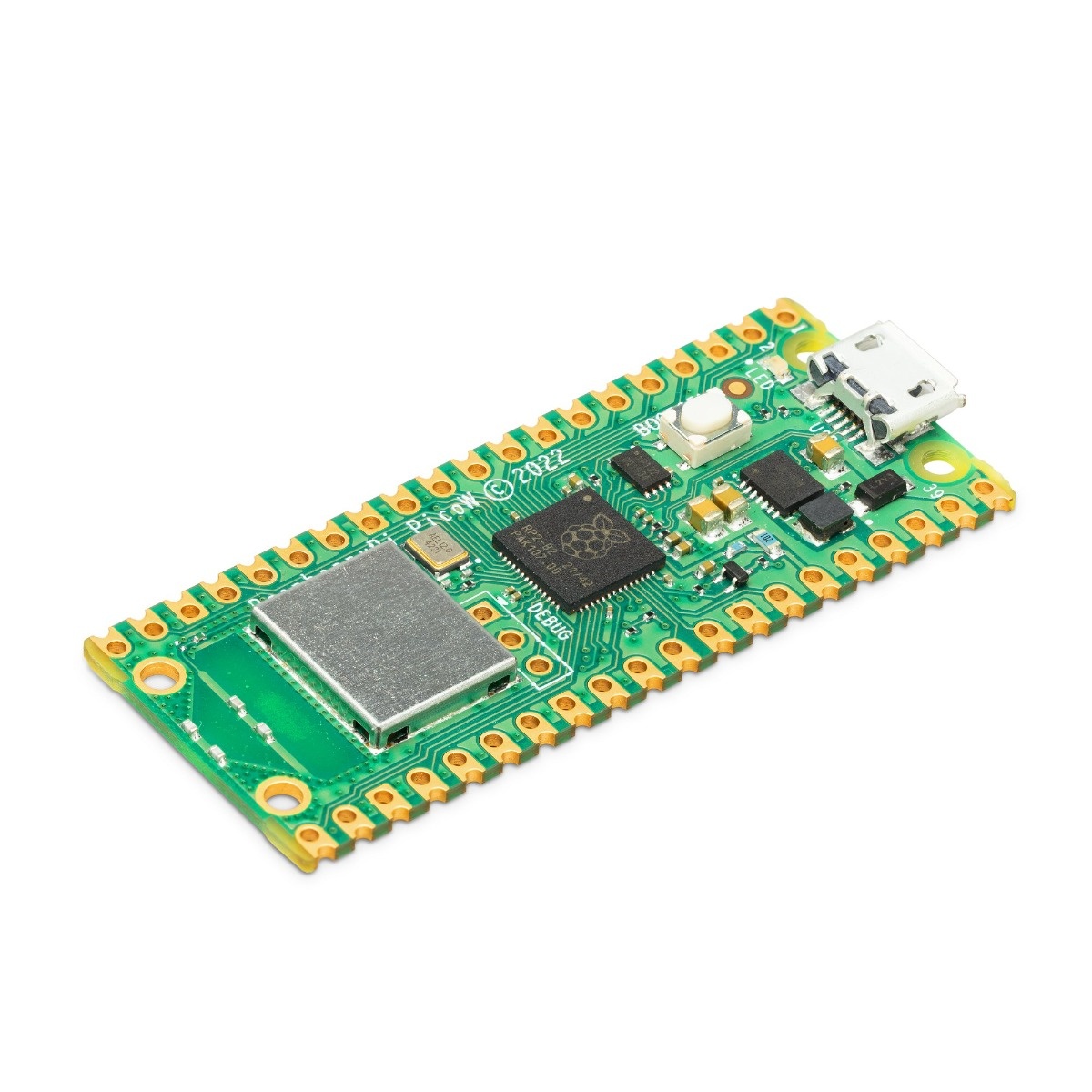

Raspberry Pi Pico W RP2040 Microcontroller Board (Wi-Fi Enabled Dual-Core Development Board)

The Raspberry Pi Pico W is a compact, low-cost microcontroller development board based on the RP2040 dual-core ARM Cortex-M0+ processor with integrated 2.4GHz Wi-Fi connectivity. Designed for embedded systems, Internet of Things (IoT), robotics, and automation applications, it combines powerful processing, flexible GPIO, and wireless networking in a compact form factor. With 2MB onboard flash memory, 264KB SRAM, USB connectivity, and support for C/C++ and MicroPython, the Pico W is ideal for connected embedded projects and rapid prototyping.

Key Features -

• Powered by the RP2040 dual-core ARM Cortex-M0+ microcontroller

• Built-in 2.4GHz IEEE 802.11 b/g/n Wi-Fi connectivity

• Dual-core processor running at up to 133MHz

• 264KB on-chip SRAM for efficient program execution

• 2MB onboard flash memory for application storage

• 26 multifunction GPIO pins for peripheral interfacing

• Supports SPI, I2C, UART, PWM, and ADC peripherals

• USB 1.1 device interface for programming and communication

• Low-power design suitable for battery-powered applications

• Compatible with C/C++ SDK and MicroPython

Specifications -

• Product type - Wi-Fi Enabled Microcontroller Development Board

• Model - Raspberry Pi Pico W

• Main IC / Chipset - RP2040 Dual-Core ARM Cortex-M0+

• Wireless connectivity - IEEE 802.11 b/g/n Wi-Fi (2.4GHz)

• CPU speed - Up to 133MHz

• Operating voltage - 3.3V DC

• Input voltage - 1.8V to 5.5V via VSYS

• Flash memory - 2MB

• RAM - 264KB SRAM

• GPIO pins - 26 Multifunction GPIO Pins

• Communication interfaces - SPI, I2C, UART

• USB interface - USB 1.1 Device

• Package / Mounting type - Through-Hole Development Board

• Additional features - Programmable I/O (PIO), ADC, PWM, USB bootloader, onboard wireless connectivity

Applications -

• Internet of Things (IoT) devices

• Wi-Fi-enabled sensor nodes

• Home automation systems

• Robotics and automation projects

• Wireless data logging systems

• Industrial monitoring and control

• Embedded electronics development

• Educational programming and prototyping
