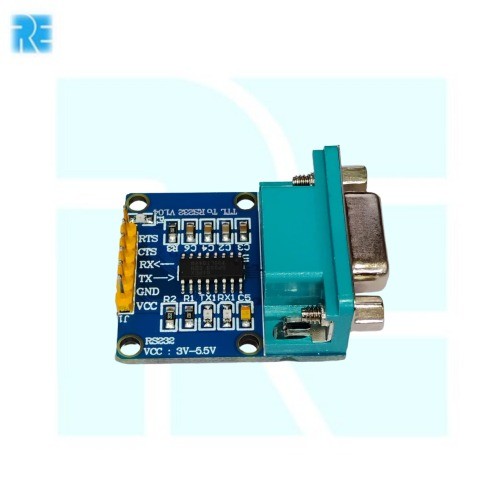

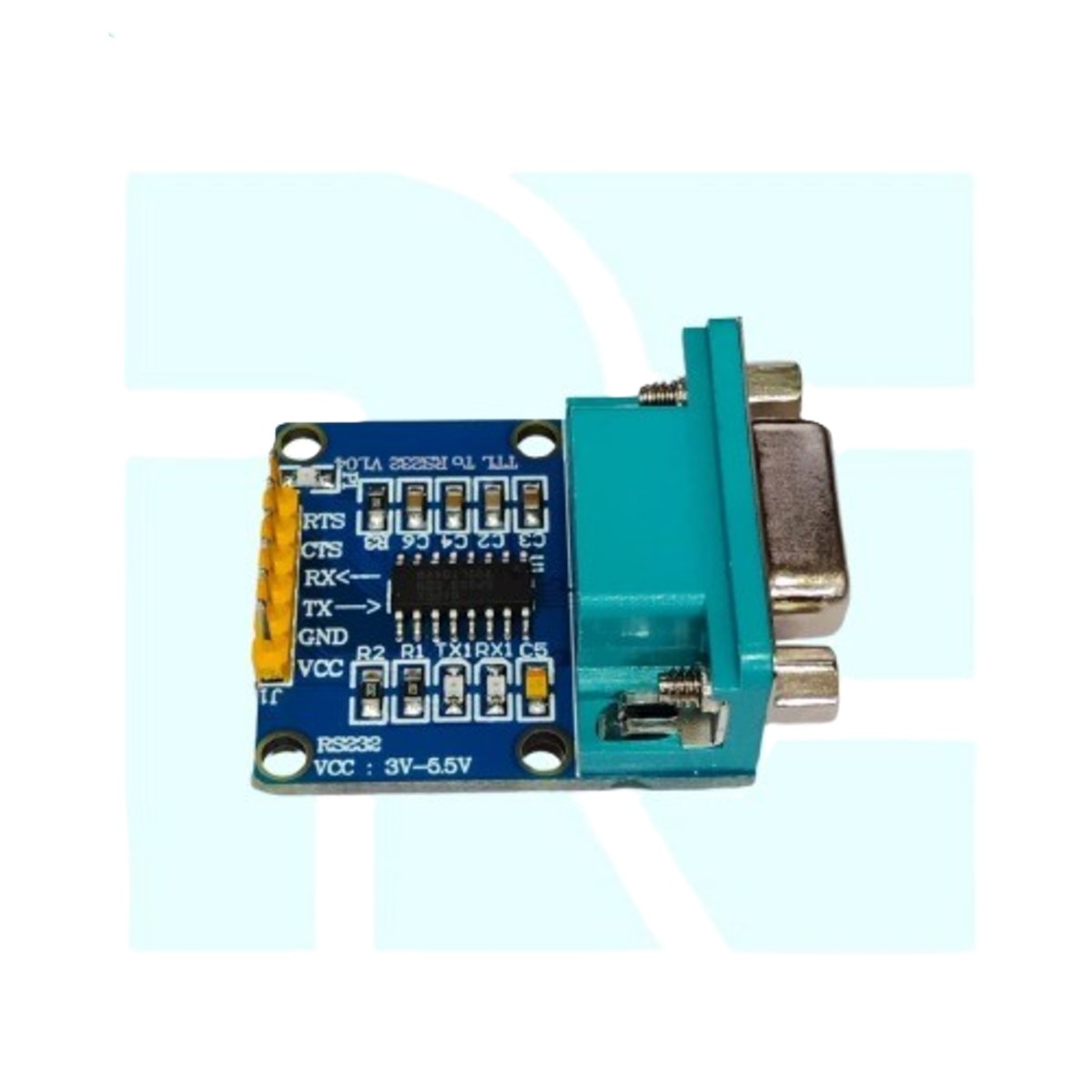

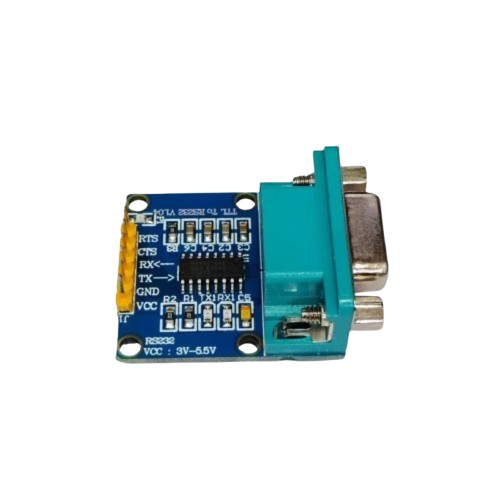

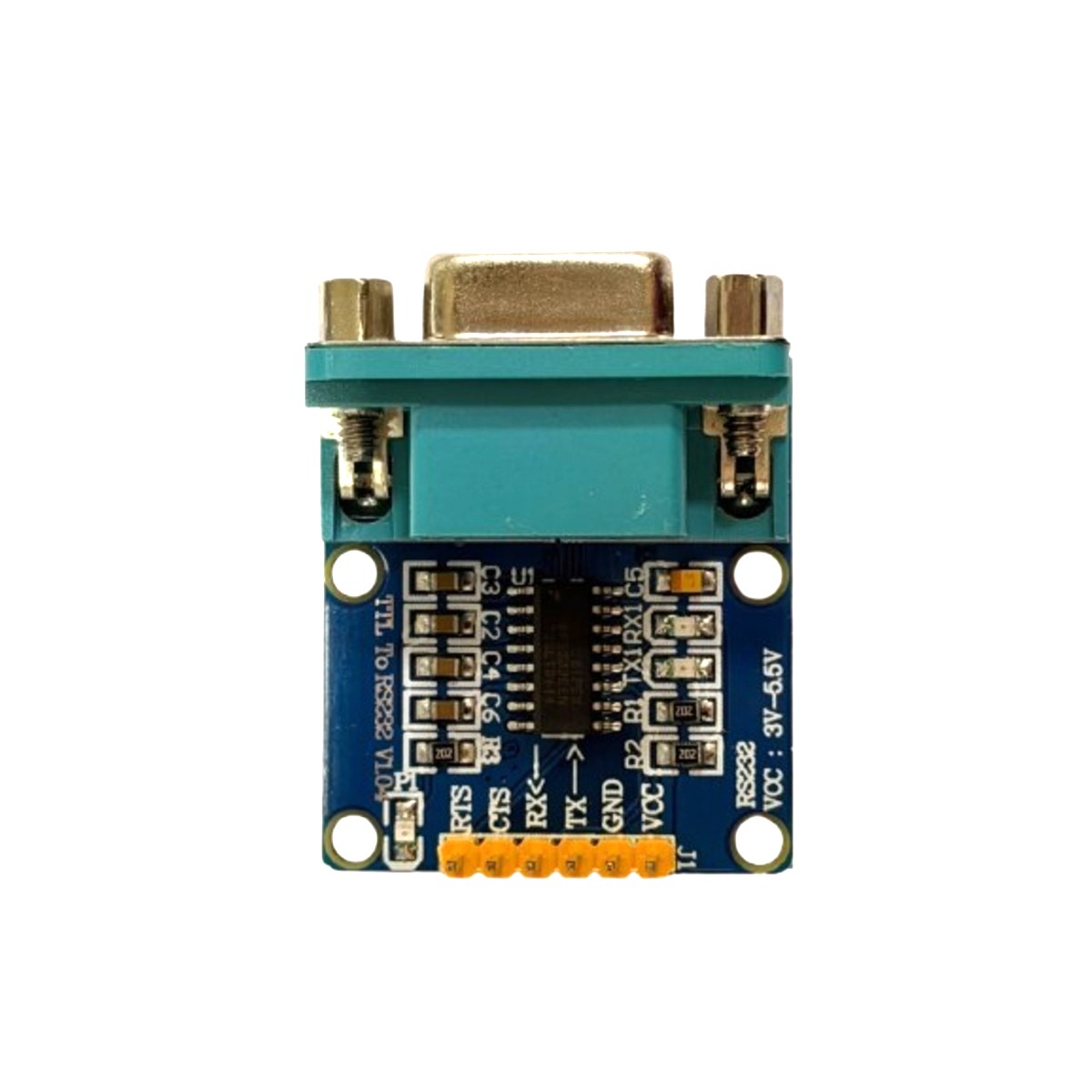

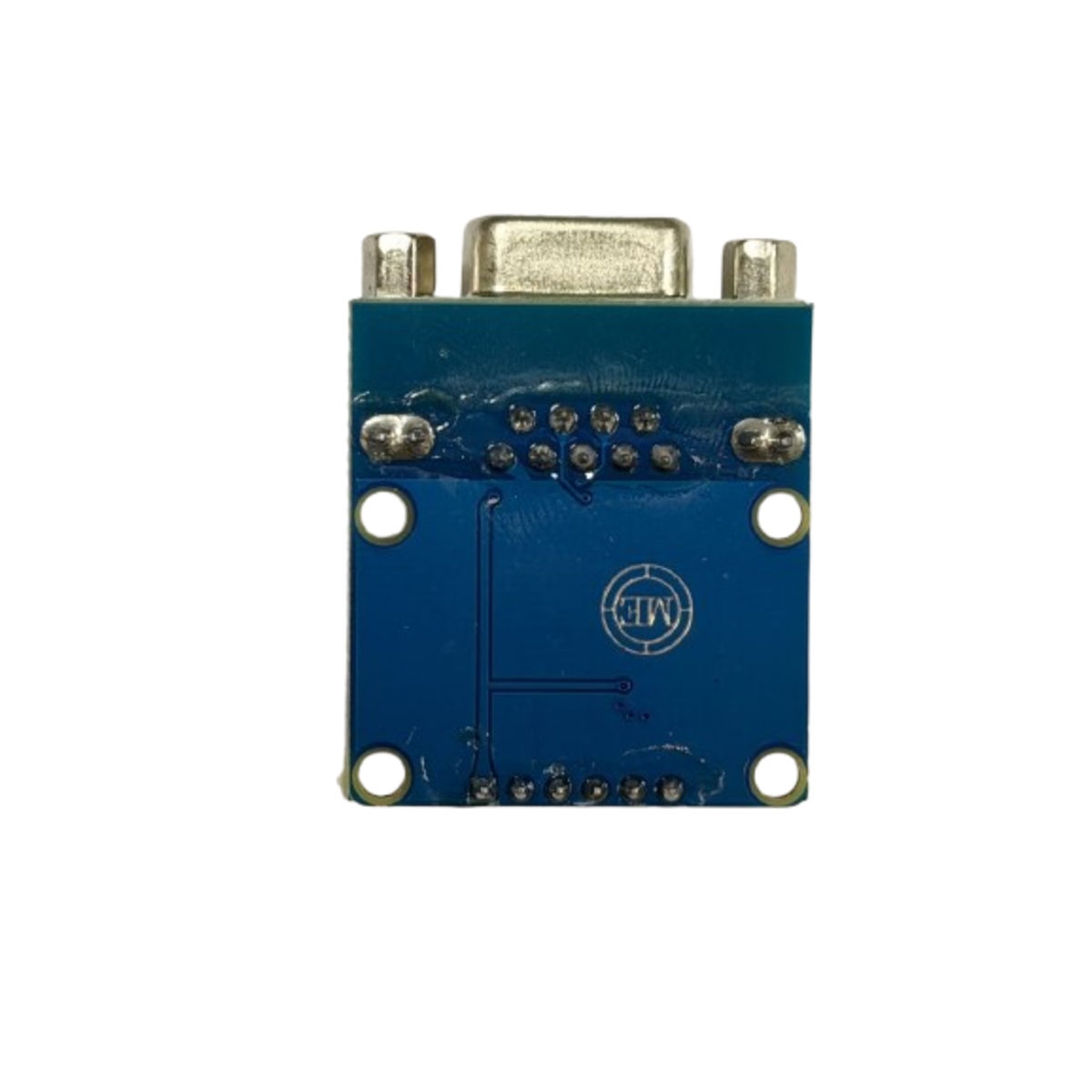

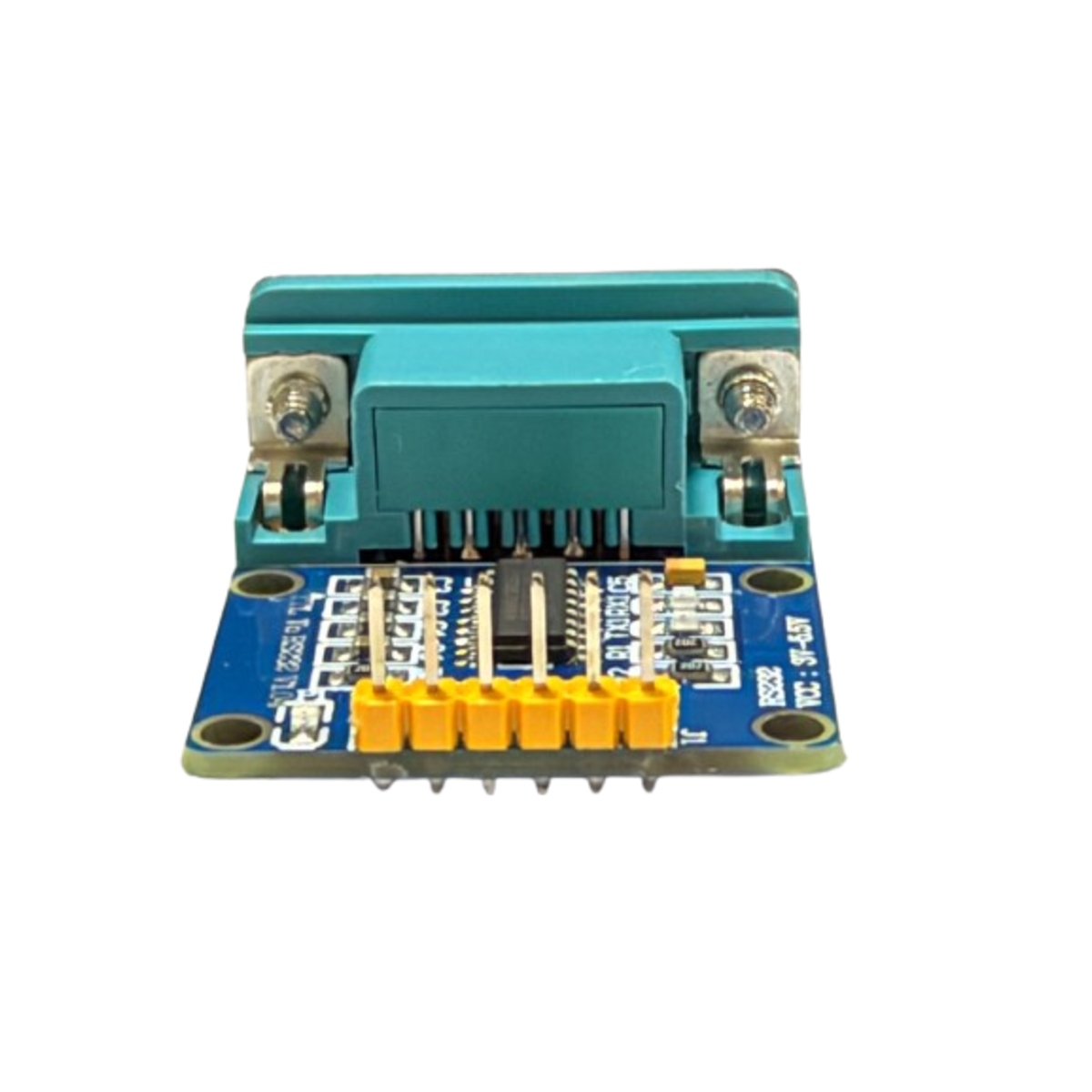

RS232 Female to TTL SP3232 UART Serial Communication Module 6 Pin Level Converter Board (SP3232 Transceiver)

The RS232 Female to TTL SP3232 UART Serial Communication Module is a compact interface board designed for bidirectional communication between RS232 serial devices and TTL-level UART systems. Based on the SP3232 transceiver IC, it enables serial communication between computers, industrial equipment, microcontrollers, and embedded systems. The RS232 female connector allows connection to compatible RS232 devices using a suitable cable.

Key Features -

• Based on the SP3232 RS232 transceiver IC

• Converts RS232 signals to TTL logic levels and vice versa

• Supports bidirectional UART serial communication

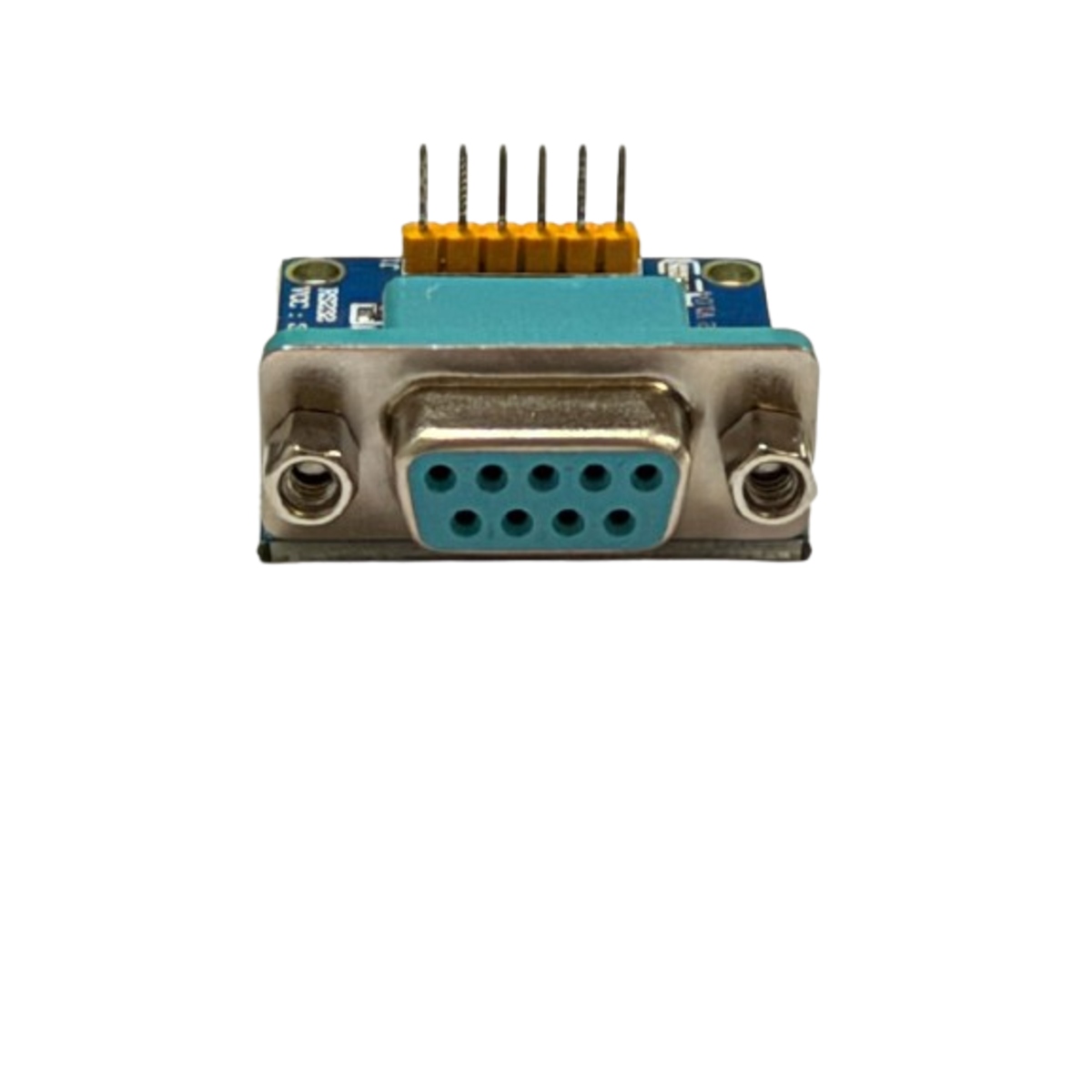

• Equipped with an RS232 female connector

• Compact 6-pin TTL interface

• Suitable for compatible 3.3V and 5V logic systems, subject to module specifications

• Low-power serial interface design

• Easy integration with microcontrollers and development boards

• Suitable for embedded and industrial communication applications

Specifications -

• Product Type: RS232 to TTL Serial Communication Module

• IC Used: SP3232

• Interface Type: RS232 and TTL UART

• RS232 Connector: Female

• TTL Interface: 6 Pin

• Communication Protocol: UART Serial Communication

• Signal Conversion: RS232 to TTL and TTL to RS232

• Logic Level Support: Depends on module design and supply voltage

• Serial Standard: RS232

• Mounting Type: PCB Module

• Connection Type: RS232 Female Connector and Header Pins

Applications -

• Arduino and microcontroller projects

• STM32 development boards

• ESP32 and ESP8266 interfacing, where voltage levels are compatible

• PC-to-microcontroller serial communication

• Industrial automation equipment

• Embedded system development

• Serial communication testing and debugging

• Data acquisition and monitoring equipment
