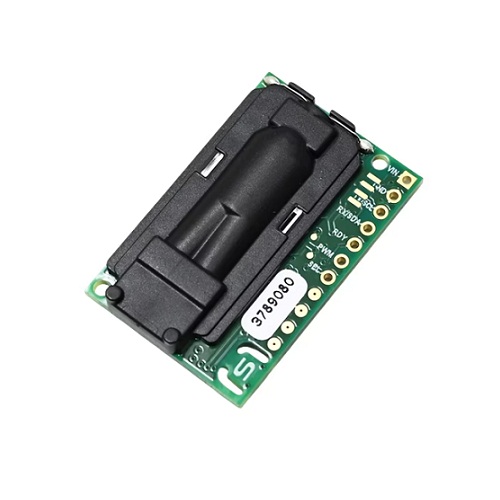

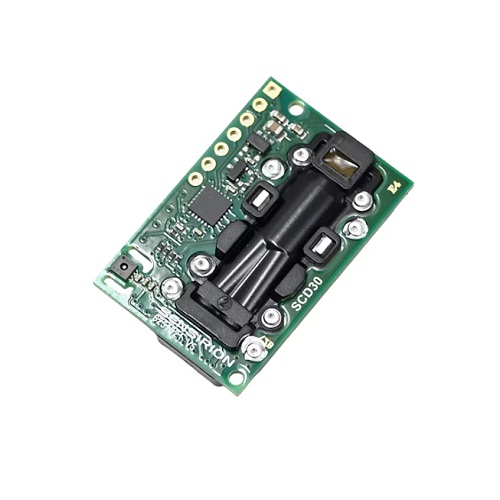

Sensirion SCD30 NDIR CO2 Temperature and Humidity Sensor I2C UART PWM 3.3V-5.5V (400ppm to 10000ppm CO2 Sensor Module)

The Sensirion SCD30 is a high-precision environmental sensor module that combines Non-Dispersive Infrared (NDIR) carbon dioxide sensing with integrated temperature and humidity measurement. Designed for accurate indoor air quality monitoring, it measures CO2 concentrations from 400ppm to 10000ppm while simultaneously providing temperature and relative humidity data. Supporting I²C, UART, and PWM communication interfaces, the SCD30 is easy to integrate with microcontrollers, embedded systems, and IoT devices. Its low power consumption, compact design, and maintenance-free operation make it ideal for long-term environmental monitoring applications.

Key Features -

• NDIR CO2 sensing technology

• CO2 measurement range from 400ppm to 10000ppm

• Integrated temperature and humidity sensors

• Supports I²C, UART, and PWM digital interfaces

• High CO2 accuracy of ±(30ppm + 3% of reading)

• Temperature accuracy of ±0.4°C

• Humidity accuracy of ±3% RH

• Low average current consumption of 19mA

• Compact and maintenance-free design

• Long operational lifetime of up to 15 years

Specifications -

• Product Type - Carbon Dioxide, Temperature and Humidity Sensor

• Model - SCD30

• Brand - Sensirion

• CO2 Sensing Technology - Non-Dispersive Infrared (NDIR)

• CO2 Measurement Range - 400ppm to 10000ppm

• CO2 Accuracy - ±(30ppm + 3% of Reading)

• Temperature Measurement Range - -40°C to +70°C

• Temperature Accuracy - ±0.4°C

• Humidity Measurement Range - 0% to 100% RH

• Humidity Accuracy - ±3% RH

• Communication Interface - I²C, UART, PWM

• Operating Voltage - 3.3V to 5.5V DC

• Average Current Consumption - 19mA (2-second Measurement Interval)

• Module Dimensions - 35 × 23 × 7mm

• Expected Lifetime - Up to 15 Years

Applications -

• Indoor air quality monitoring

• HVAC systems

• Smart home automation

• Building automation systems

• Greenhouse environmental monitoring

• Air purification systems

• Weather and environmental monitoring

• IoT sensor nodes

• Educational and research projects

• Industrial environmental monitoring
