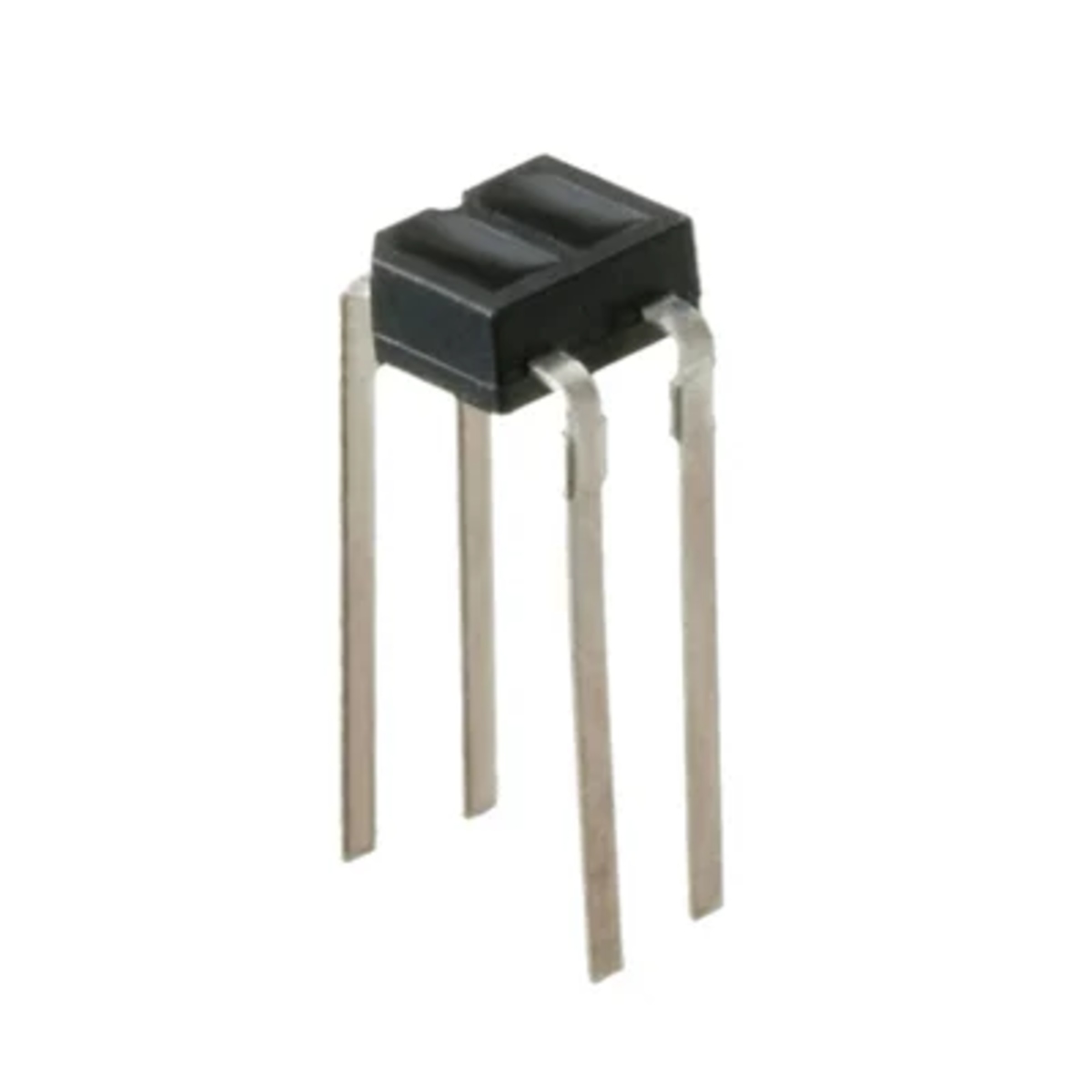

SG105F Photo Interrupter Sensor (SG-105F Optical Sensor)
The SG105F Photo Interrupter Sensor is a compact reflective optical sensor designed for non contact object detection and position sensing. It integrates a GaAs infrared emitting diode and a high sensitivity phototransistor in a single package, allowing it to detect objects based on reflected IR light intensity changes. This super mini design ensures efficient operation, fast response, and reliable performance in space constrained electronic systems.
The SG105F sensor is widely used in India for embedded systems, automation equipment, and industrial electronics. It is valued for its compact size, high speed response, and stable detection capability in applications such as edge detection, timing systems, and liquid level sensing.
Key Features
- Reflective Photo Interrupter: IR emitter and phototransistor in one unit
- Compact Size Design: Suitable for small PCB layouts
- High Speed Response: Fast switching detection
- 940nm Infrared Operation: Optimized sensing wavelength
- Low Profile Package: Easy PCB mounting
- Suitable for Industrial Electronics and Embedded Systems
Specifications
- Sensor Type: Reflective photo interrupter
- Sensing Method: Infrared reflection detection
- Peak Wavelength: 940nm
- Forward Current: Up to 50mA
- Collector Current: Up to 20mA
- Collector Emitter Voltage: Up to 30V
- Response Time: Rise approx 30 microseconds fall approx 25 microseconds
- Detection Distance: Around 0.8mm typical
- Operating Temperature: -20 to +85 degree C
- Mounting Type: Through hole PCB mount
- Applications: Edge detection timing sensors position sensing industrial electronics embedded systems
Pinout Configuration Sensor Layout
- Anode pin of IR emitter
- Cathode pin of IR emitter
- Collector pin of phototransistor
- Emitter pin of phototransistor
